Melling Engine Parts / Melling Tool Co. · 20-IS2
Part #: 20-IS2
UPC: 729295110040
Loading...
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump Screen
Description:
Description
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
Features & benefits
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineering protects the engine from dirt and contaminants
- Manufactured from high quality durable materials for long wear
Application summary
| Year | Make / model |
|---|---|
| 1979-1981 | Buick Century |
| 1980-1983 | Buick Electra |
| 1978-1983 | Buick LeSabre |
| 1978-1983 | Buick Regal |
| 1986-1987 | Buick Regal |
| 1979 | Buick Riviera |
| 1981-1983 | Buick Riviera |
| 1979-1980 | Buick Skyhawk |
| 1979 | Buick Skylark |
| 1980-1982 | Cadillac DeVille |
| 1981-1982 | Cadillac Eldorado |
| 1980-1982 | Cadillac Fleetwood |
| 1981-1982 | Cadillac Seville |
| 1980-1981 | Chevrolet Camaro |
| 1980-1983 | Chevrolet Caprice |
| 1981-1984 | Chevrolet El Camino |
| 1980-1983 | Chevrolet Impala |
| 1979-1983 | Chevrolet Malibu |
| 1979-1983 | Chevrolet Monte Carlo |
| 1979-1980 | Chevrolet Monza |
| 1981-1984 | GMC Caballero |
| 1982-1983 | Oldsmobile 98 |
| 1979-1981 | Oldsmobile Cutlass |
| 1979-1983 | Oldsmobile Cutlass Calais |
| 1980-1983 | Oldsmobile Cutlass Cruiser |
| 1979-1980 | Oldsmobile Cutlass Salon |
| 1979-1983 | Oldsmobile Cutlass Supreme |
| 1979-1983 | Oldsmobile Delta 88 |
| 1979 | Oldsmobile Omega |
| 1979-1980 | Oldsmobile Starfire |
| 1980-1983 | Pontiac Bonneville |
| 1979-1981 | Pontiac Catalina |
| 1979-1981 | Pontiac Firebird |
| 1989 | Pontiac Firebird |
| 1979 | Pontiac Grand Am |
| 1979-1981 | Pontiac Grand LeMans |
| 1979-1983 | Pontiac Grand Prix |
| 1979-1981 | Pontiac LeMans |
| 1979 | Pontiac Phoenix |
| 1979-1980 | Pontiac Sunbird |
Specifications
- GTIN
- 00729295110040
- Weight
- 0.77 lb
- Height
- 5.25 in
- Length
- 8 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Flange Mount Hole Quantity
- 2
- Flanged End
- Yes
- Gasket Or Seal Included
- Yes
- Grade Type
- Standard Replacement
- Mounting Hardware Included
- No
- Screen Face Diameter
- 4.07
- Screen Material
- Galvanized Steel
- Title
- Engine Oil Pump Pickup Tube and Screen
- Tube Inside Diameter
- 0.6
- Tube Length
- 5.12
- Tube Material
- Galvanized Steel
- Tube Shape
- Straight
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1979-1981 Buick Century; 1980-1983 Buick Electra; 1978-1983 Buick LeSabre; 1978-1983 Buick Regal; 1986-1987 Buick Regal; 1979 Buick Riviera; 1981-1983 Buick Riviera; 1979-1980 Buick Skyhawk; 1979 Buick Skylark; 1980-1982 Cadillac DeVille; 1981-1982 Cadillac Eldorado; 1980-1982 Cadillac Fleetwood; 1981-1982 Cadillac Seville; 1980-1981 Chevrolet Camaro; 1980-1983 Chevrolet Caprice; 1981-1984 Chevrolet El Camino; 1980-1983 Chevrolet Impala; 1979-1983 Chevrolet Malibu; 1979-1983 Chevrolet Monte Carlo; 1979-1980 Chevrolet Monza; 1981-1984 GMC Caballero; 1982-1983 Oldsmobile 98; 1979-1981 Oldsmobile Cutlass; 1979-1983 Oldsmobile Cutlass Calais; 1980-1983 Oldsmobile Cutlass Cruiser; 1979-1980 Oldsmobile Cutlass Salon; 1979-1983 Oldsmobile Cutlass Supreme; 1979-1983 Oldsmobile Delta 88; 1979 Oldsmobile Omega; 1979-1980 Oldsmobile Starfire; 1980-1983 Pontiac Bonneville; 1979-1981 Pontiac Catalina; 1979-1981 Pontiac Firebird; 1989 Pontiac Firebird; 1979 Pontiac Grand Am; 1979-1981 Pontiac Grand LeMans; 1979-1983 Pontiac Grand Prix; 1979-1981 Pontiac LeMans; 1979 Pontiac Phoenix; 1979-1980 Pontiac Sunbird
Resources
- Brand logo

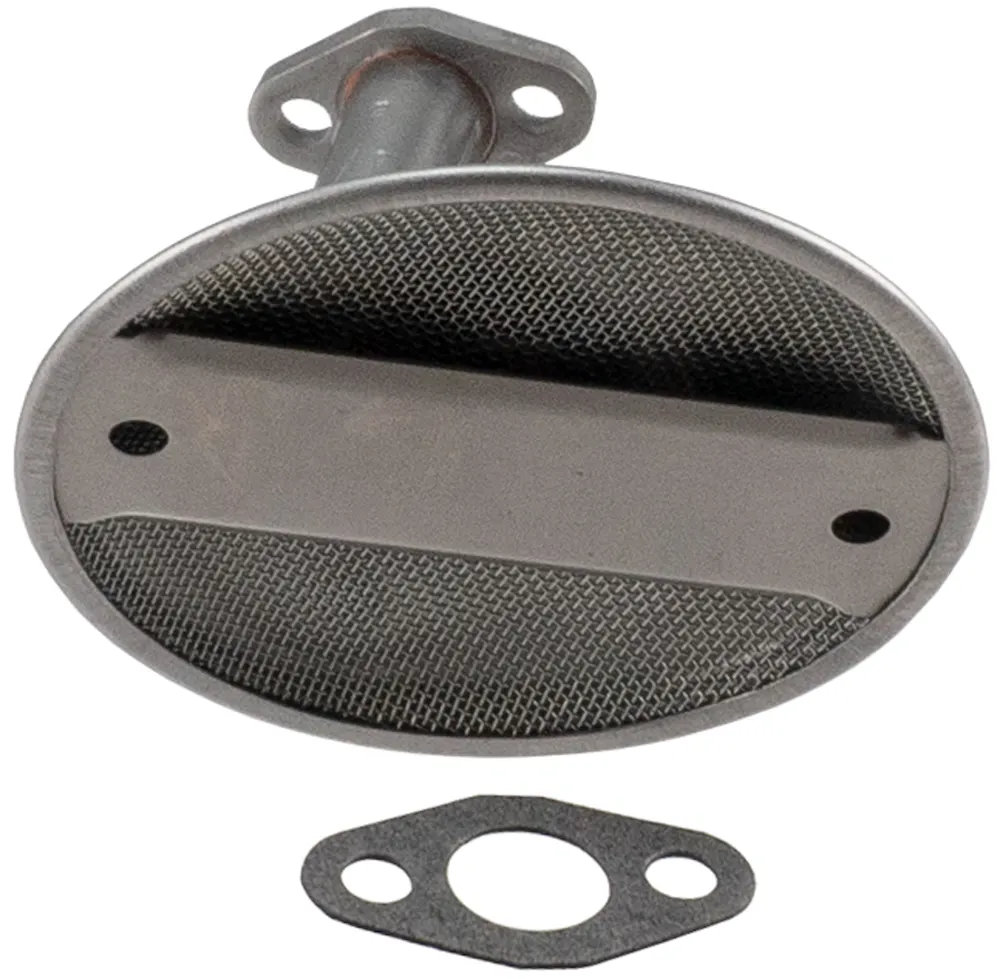

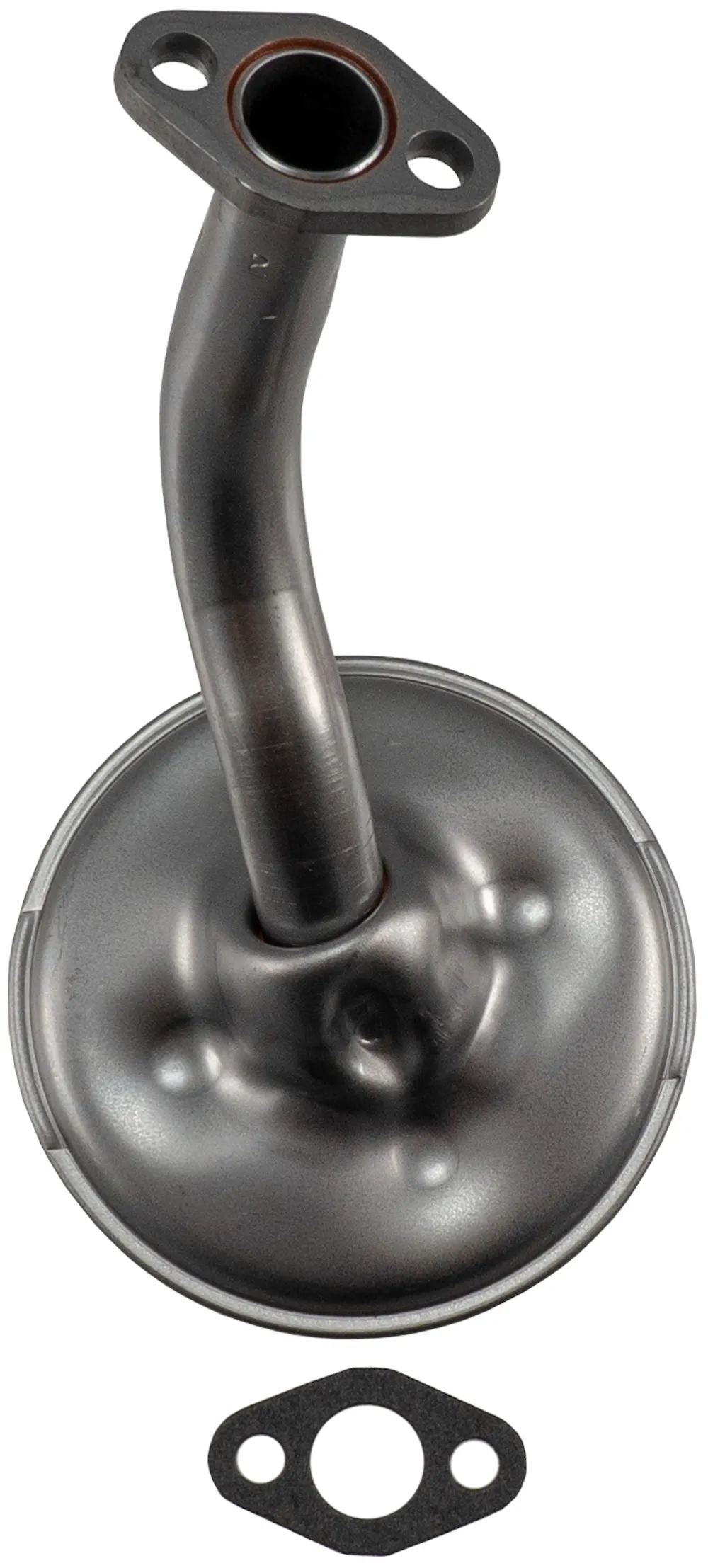

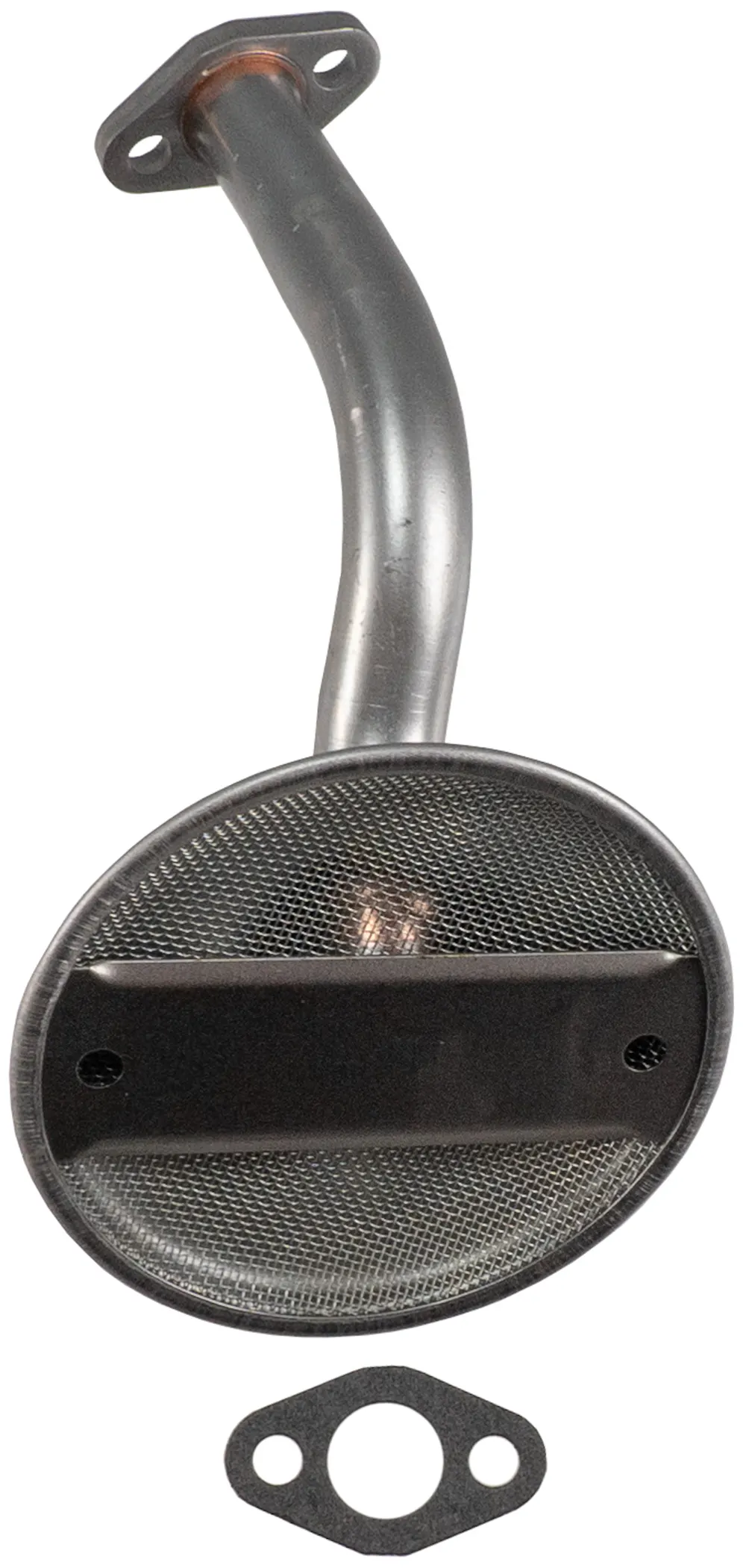

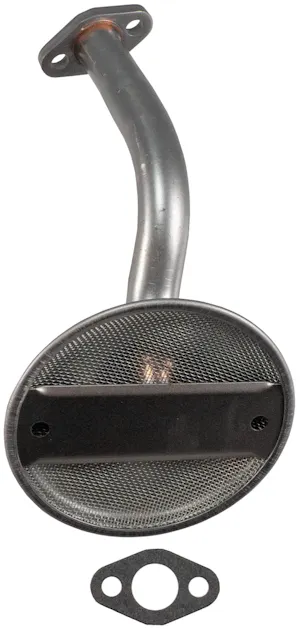

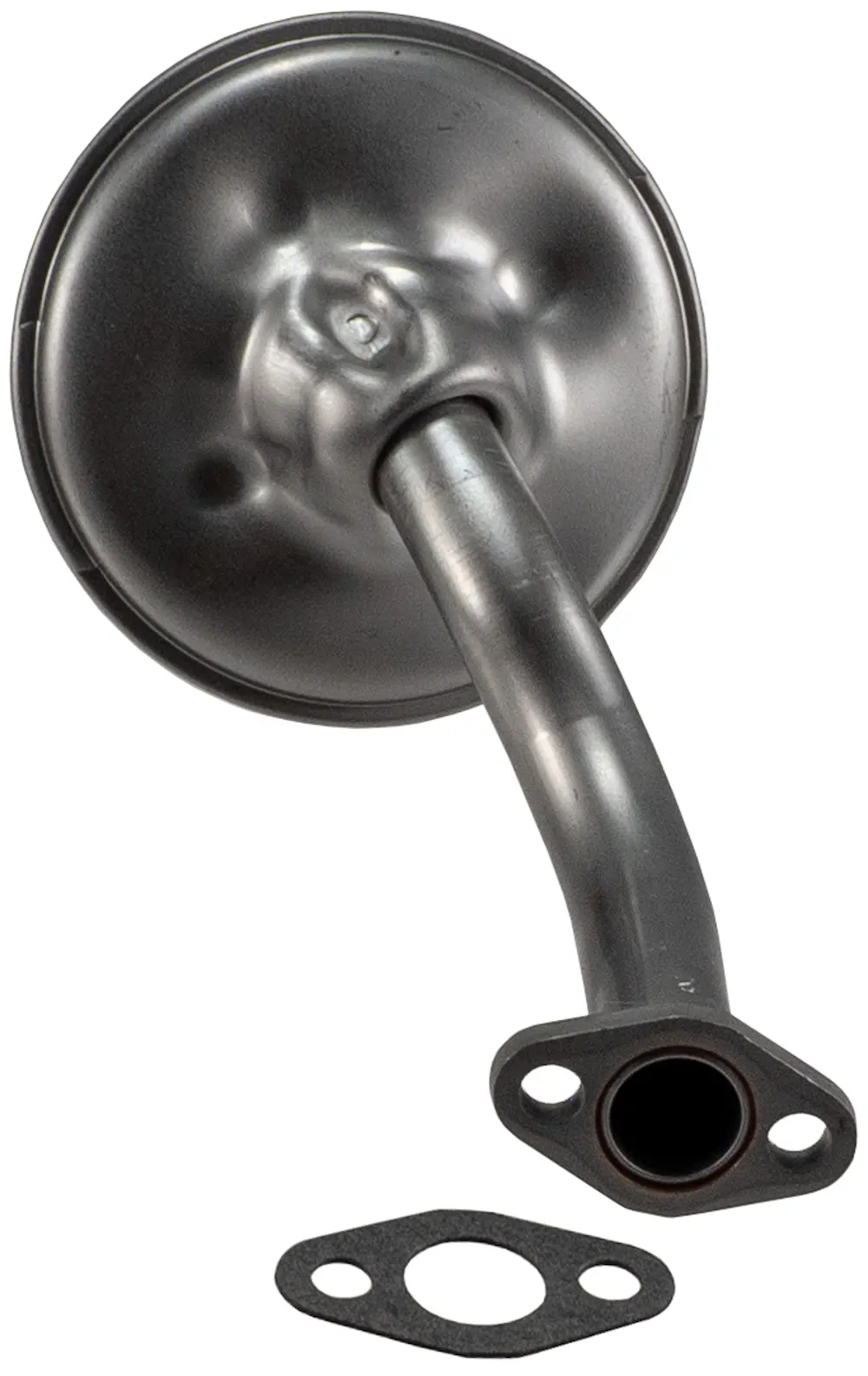

- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package

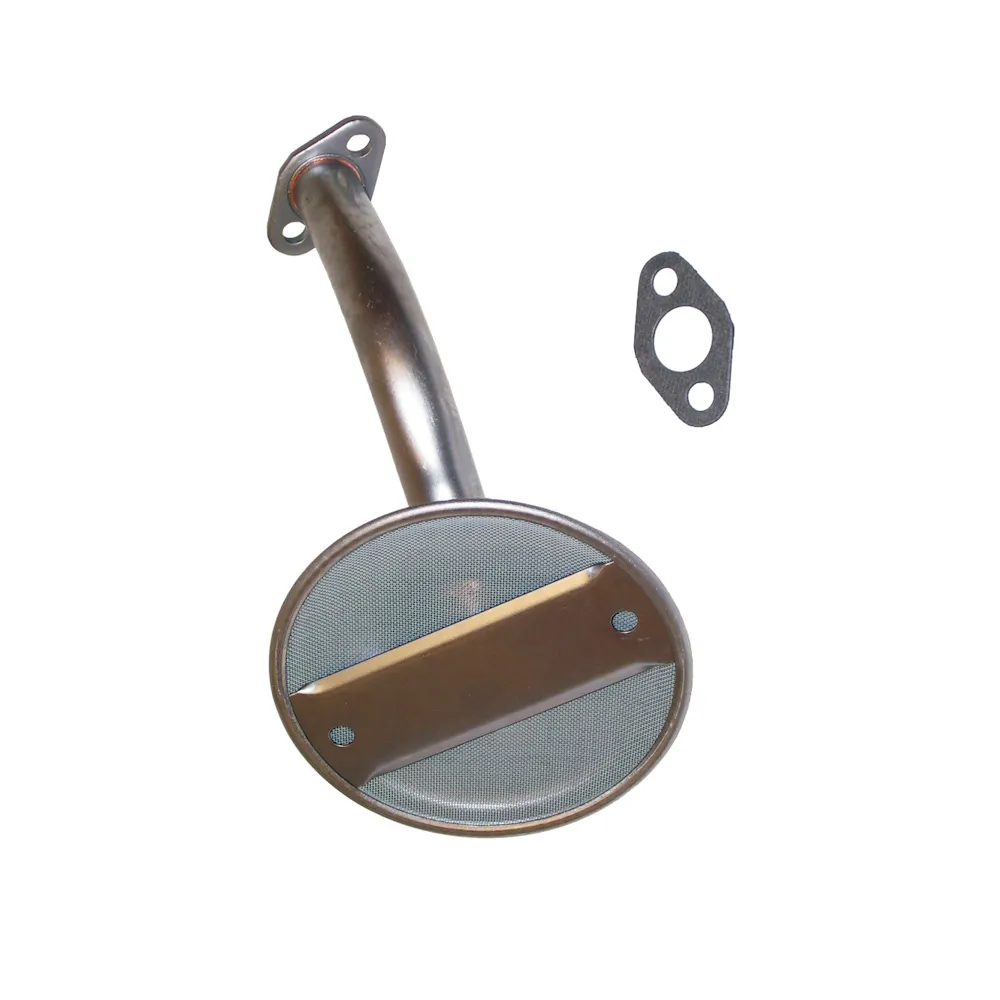

- Photo - Primary
