Manley · 26135
Part #: 26135
UPC: 807298086378
Loading...
Notify me when this item is in stock.

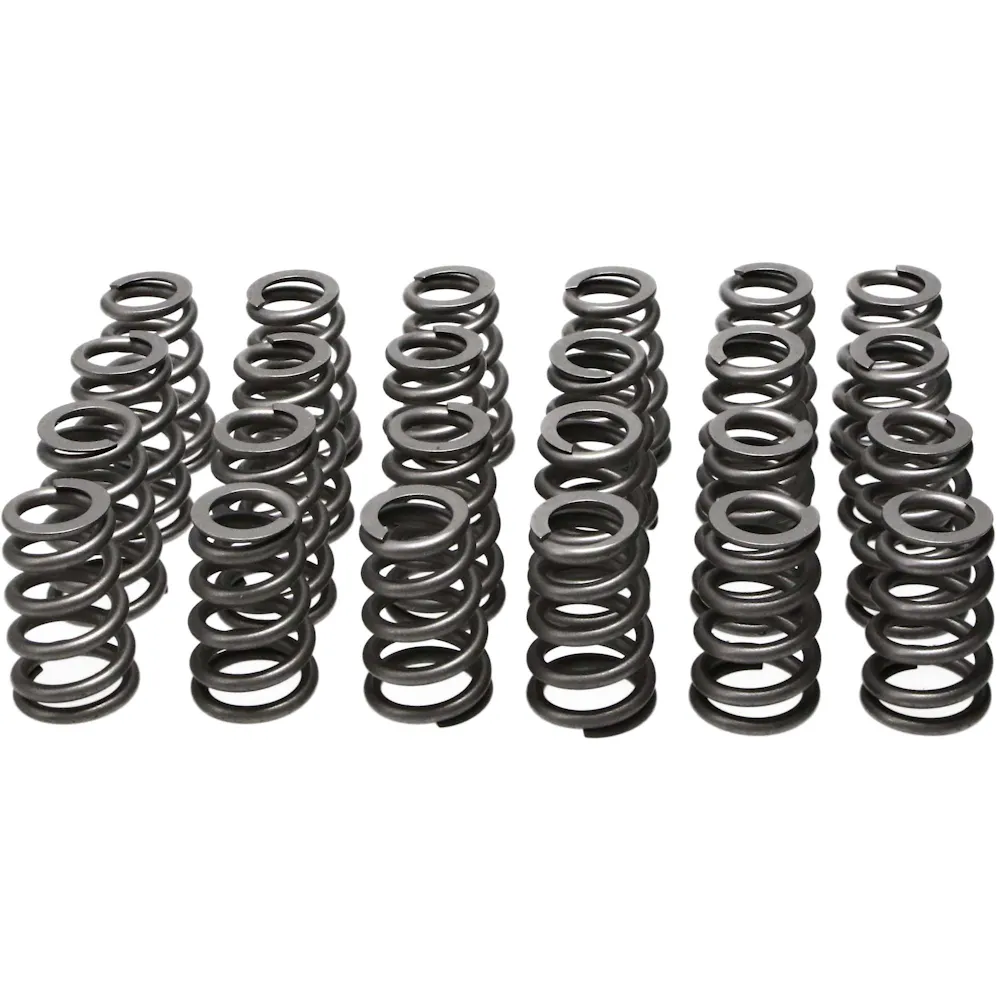

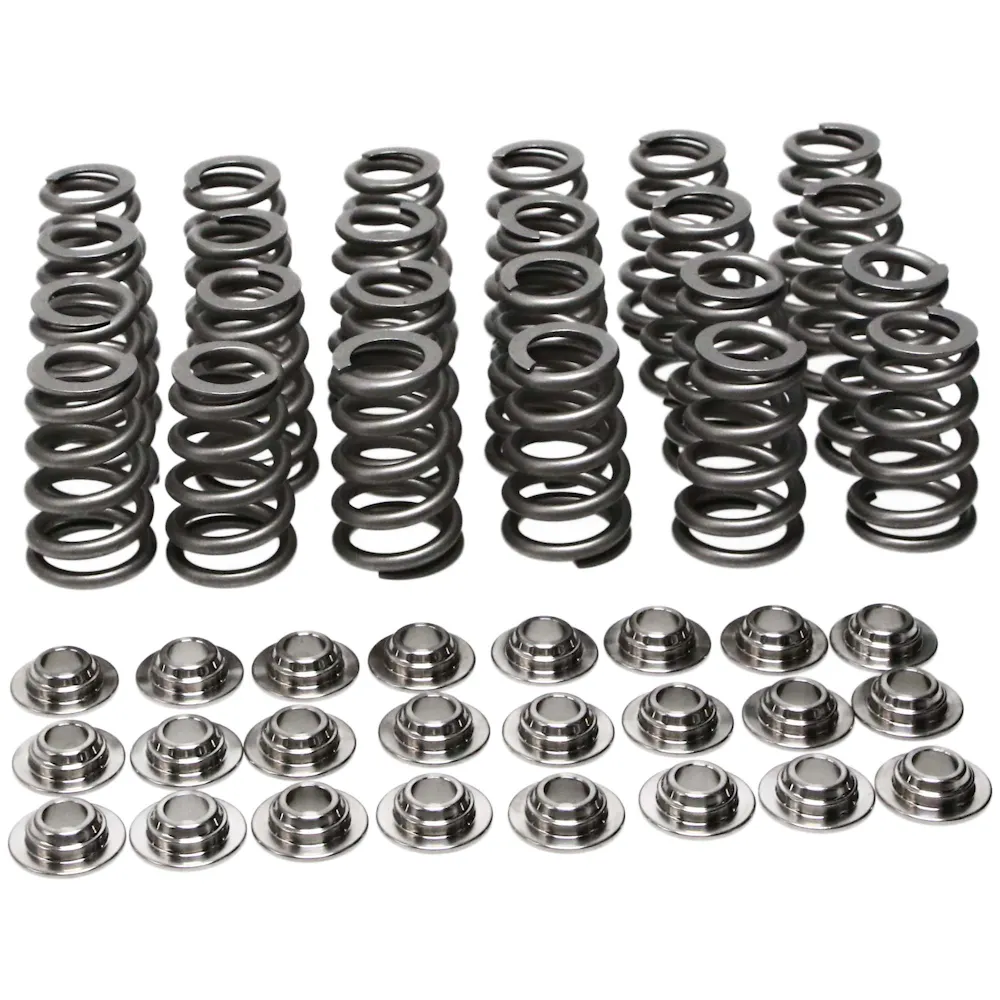

Description: Manley Sprng/Retnr Kit - Toyota Supra 2JZ-GE/2JZ-GTE - Locks NOT Included; Max Lift: 0.430" - Spring: 22135-24 - Titanium Retainer: 23135-24
Description:
Description
Manley Performance Valve spring and Retainer Kits take the guess work out of making your valvetrain race-ready. Engineered for maximum durability, stability, and precision in high-performance and racing applications, these chrome-silicon alloy springs provide exceptional fatigue resistance and high-tensile strength, ensuring consistent valve control at extreme RPMs. Save time and money with these kits, featuring premium springs, retainers, designed to handle aggressive aftermarket camshafts.
Features & benefits
- Includes matched Valve Springs, Retainers, and Locks (if part number ends in "K"). Spring Locators included in some applications.
- Designed to handle aftermarket camshafts and up to 10,000 RPM
- Heat treated aerospace grade titanium retainers CNC machined to exacting tolerances
- Includes 7 Machined Valve Locks manufactured from the premium quality heat treated steel
Information
Manley Sport Compatct Valve Spring and Retainer Kit
Specifications
- GTIN
- 00807298086378
- Weight
- 4.25 lb
- Height
- 2.5 in
- Length
- 6.5 in
- Width
- 6 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- BBPB
- AAIA brand code
- BBPB
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Valve Springs & Kits>Spring & Retainer Kits
- Engine
- 2JZ
- Engine - Web
- 2JZ
- Engine Type
- ICE
- Industry
- Automotive
- Installed Pressure and Height
- 100 @ 1.300
- Make
- Toyota
- Make - Web
- Toyota
- Open Pressure and Height
- 245 @ 0.870
- Out of Stock Message
- Call for Availability
- Product Market
- Sport Compact
- Product Type
- Valve Spring Kit
- Stem Diameter
- 6.00
- Title
- Manley Valve Spring & Retainer Kit - Toyota Supra 2JZGE/2JZGTE - Valve Locks NOT Included
- Title - Web
- Manley Valve Spring & Retainer Kit - Toyota Supra 2JZGE/2JZGTE - Valve Locks NOT Included
- Valve Lift - Maximum
- 0.430
- Valve Lift - Stock
- 0.340
- Valve Lock Angle
- 6
- Valve Spring Coil Bind Height
- 0.845
- Valve Spring Inner Diameter - Bottom
- 0.750
- Valve Spring Inner Diameter - Top
- 0.560
- Valve Spring Outer Diameter - Bottom
- 1.046
- Valve Spring Outer Diameter - Top
- 0.856
- Valve Spring Quantity
- 24
- Valve Spring Rate
- 339
- Valve Spring Retainer Step Height
- 0.100
- Valve Stem Diameter
- 6.00
Fitment status
This product is universal and will fit your application.
