LEED Brakes / RRC1003X
Part #: RRC1003X
UPC: 887753638236
Loading...
Notify me when this item is in stock.

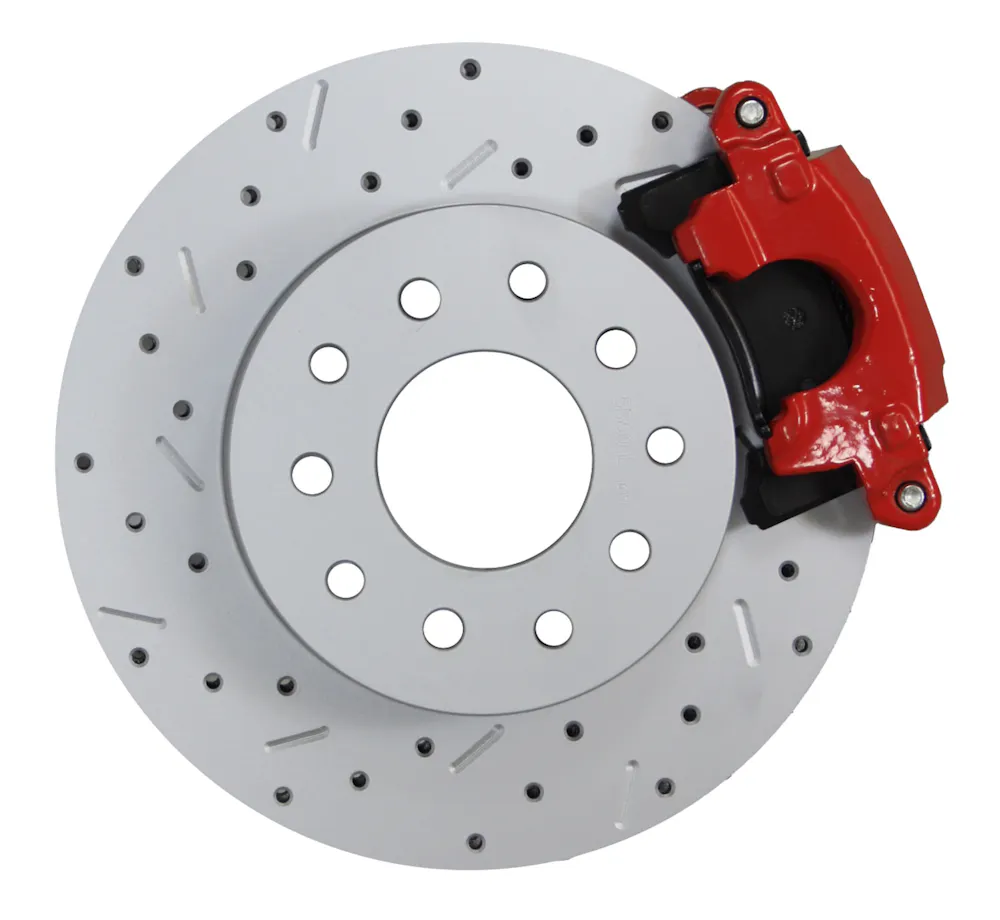

Description: Rear Disc Brake Kit with Drilled Rotors and Red Powder Coated Calipers; Leed Brakes complete drum to disc brake conversion kit consists of all new precision machined components. Designed for easy bolt on installation the kit includes complete step by step instructions and industry leading tech support.
Description:
Description

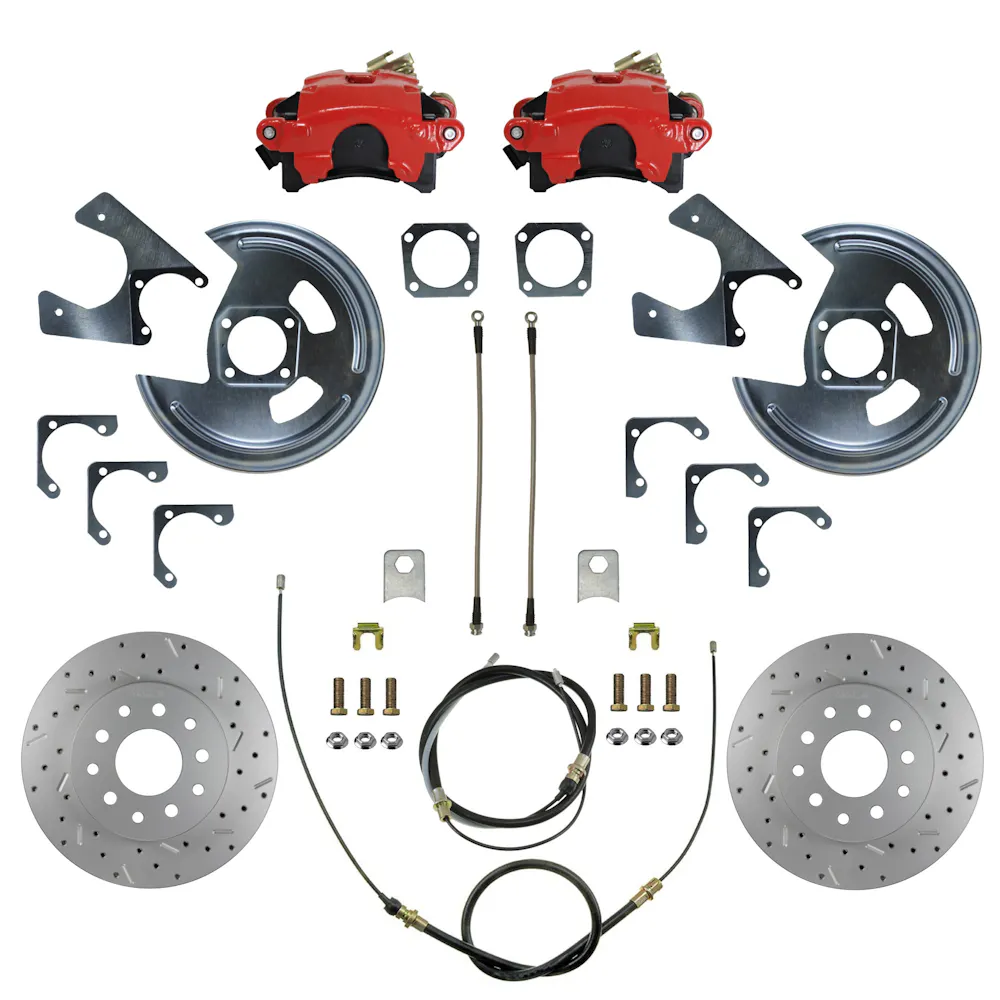

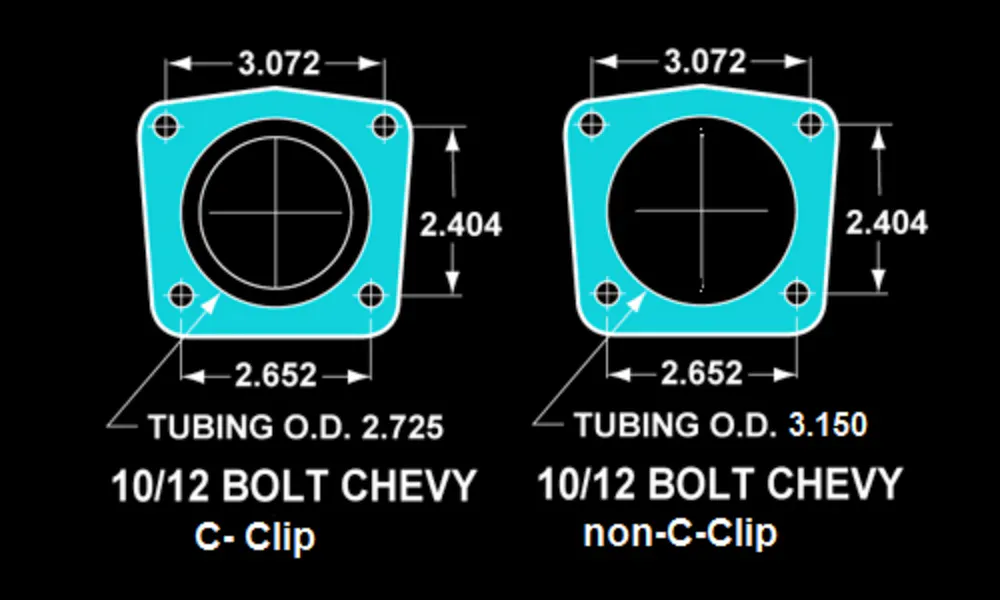

Add the safety, reliability and performance of rear disc brakes to your vehicle with our drum to disc brake conversion. In this kit you receive everything you need to mount red powder coated single piston disc brakes to your GM 10 & 12 Bolt Rear Axle. All components used in these kits are new high quality, precision machined products with a zinc plated finish to reduce corrosion and extend the life of your brake system. The heavy duty parking brake caliper will allow you to use the parking brake cables included in the kit to actuate your parking brake.
Features & benefits
- Includes single piston calipers with built in parking brake
- Includes 11-1/8" rotors
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1970-1981 | Chevrolet Camaro |
| 1970-1981 | Pontiac Firebird |
Specifications
- GTIN
- 00887753638236
- Weight
- 63 lb
- Height
- 12.5 in
- Length
- 20.5 in
- Width
- 9.75 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- Brake Pad Material
- Semi - Metallic
- Brake Rotor Included
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Caliper Bracket Color
- Silver
- Caliper Bracket Material
- Steel
- Caliper Bracket Mount Hole Center To Center Length
- 5.50
- Caliper Bracket Mount Hole Diameter
- 7/16-20
- Caliper Finish
- Red Powder Coated
- Caliper Included
- Yes
- Caliper Material
- Cast Iron
- Caliper Piston Quantity
- 1
- Caliper Slides Included
- Yes
- Disc Construction
- Vented
- Flex Hose 1 Bracket Attached
- No
- Flex Hose 1 Length
- 12.25
- Flex Hose 2 Bracket Attached
- No
- Flex Hose End 1 Fitting Type
- Female
- Flex Hose End 2 Fitting Type
- Banjo
- Grade Type
- Performance
- Minimum Recommended Wheel Diameter (in)
- 15 in.
- Parking Brake Provision
- Yes
- Position
- Rear

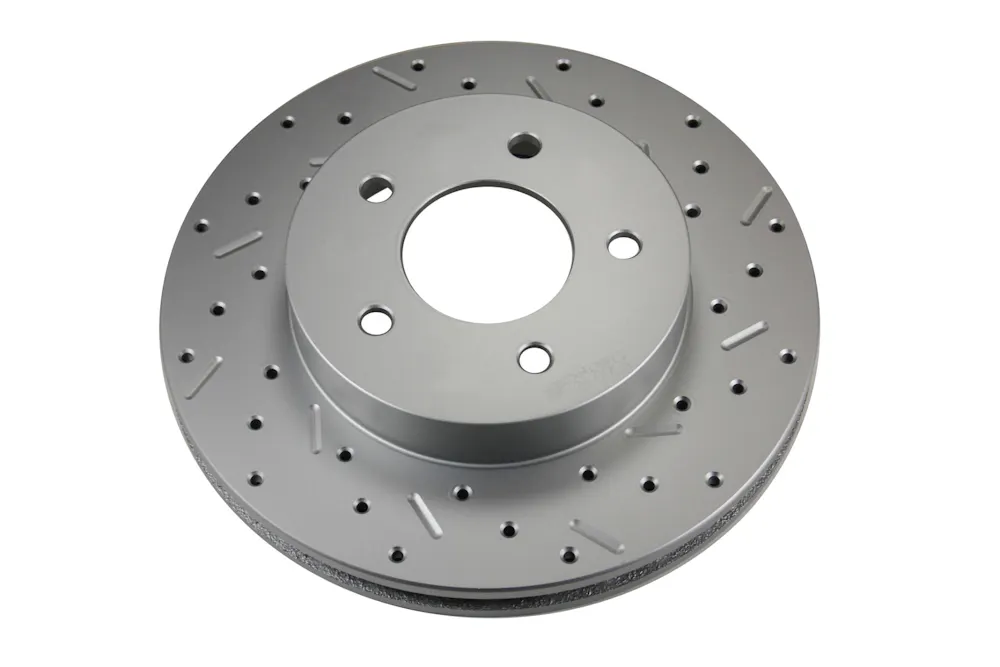

- Rotor Bolt Pattern
- 5 x 4.75 and 5 x 4.5
- Rotor Diameter
- 11.15 in.
- Rotor Finish
- Zinc Coating
- Rotor Inside Diameter
- 6.125
- Rotor Material
- Cast Iron
- Rotor Outside Diameter
- 11.16
- Rotor Style
- Max Grip XDS - Cross Drilled & Slotted
- Rotor Thickness
- .980
- Status
- Existing
- Surface Type
- Slotted X Drilled
- TLE
- LEED Brakes Rear Disc Brake Kit with Drilled Rotors and Red Powder Coated Calipers
- Title
- LEED Brakes Rear Disc Brake Kit with Drilled Rotors and Red Powder Coated Calipers
- Wheel Lug Hole Quantity
- 5
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1981 Chevrolet Camaro; 1970-1981 Pontiac Firebird
LEED Brakes RRC1003X
