LEED Brakes · RC3001
Part #: RC3001
UPC: 887753637345
Log in for inventory
Notify me when this item is in stock.

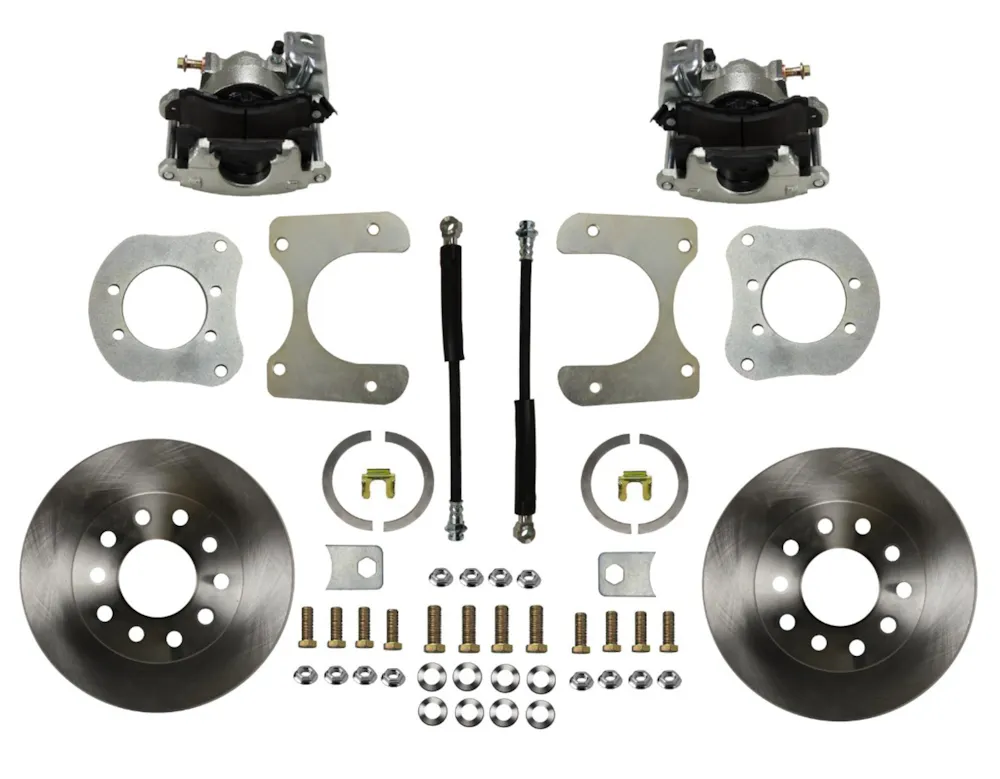

Description: Rear Disc Brake Kit with Plain Rotors and Zinc Plated Calipers; Leed Brakes complete drum to disc brake conversion kit consists of all new precision machined components. Designed for easy bolt on installation the kit includes complete step by step instructions and industry leading tech support.
Description:
Description
Add the safety, reliability and performance of rear disc brakes to your JEEP with our drum to disc brake conversion. In this kit you will receive everything you need to mount single piston disc brakes to your rear axle. All components used in the LEED Brakes kits are new high quality, precision machined products with a zinc plated finish to reduce corrosion and extend the life of your brake system. The large 54mm piston along with the semi-metallic brake pads provided will give you all the clamping force and braking you need. The heavy duty parking brake caliper will allow you to use most stock and aftermarket parking brake cables to actuate your parking brake. Note: Fits Dana 35 C-clip axles only. Note: Will not work with factory ABS sensors. Note: Only fits Dana 44 in 1997-06 Wrangler.
Features & benefits

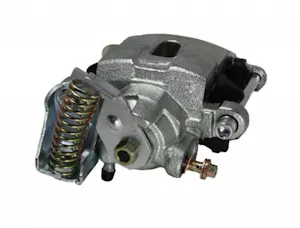

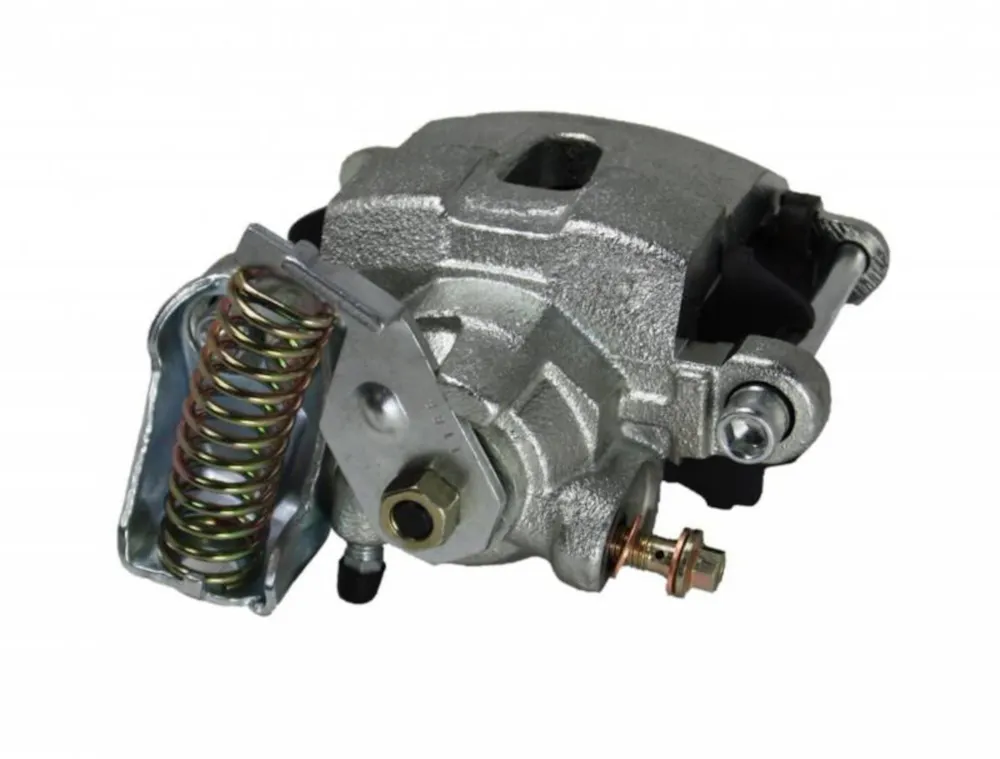

- Includes single piston calipers with built in parking brake

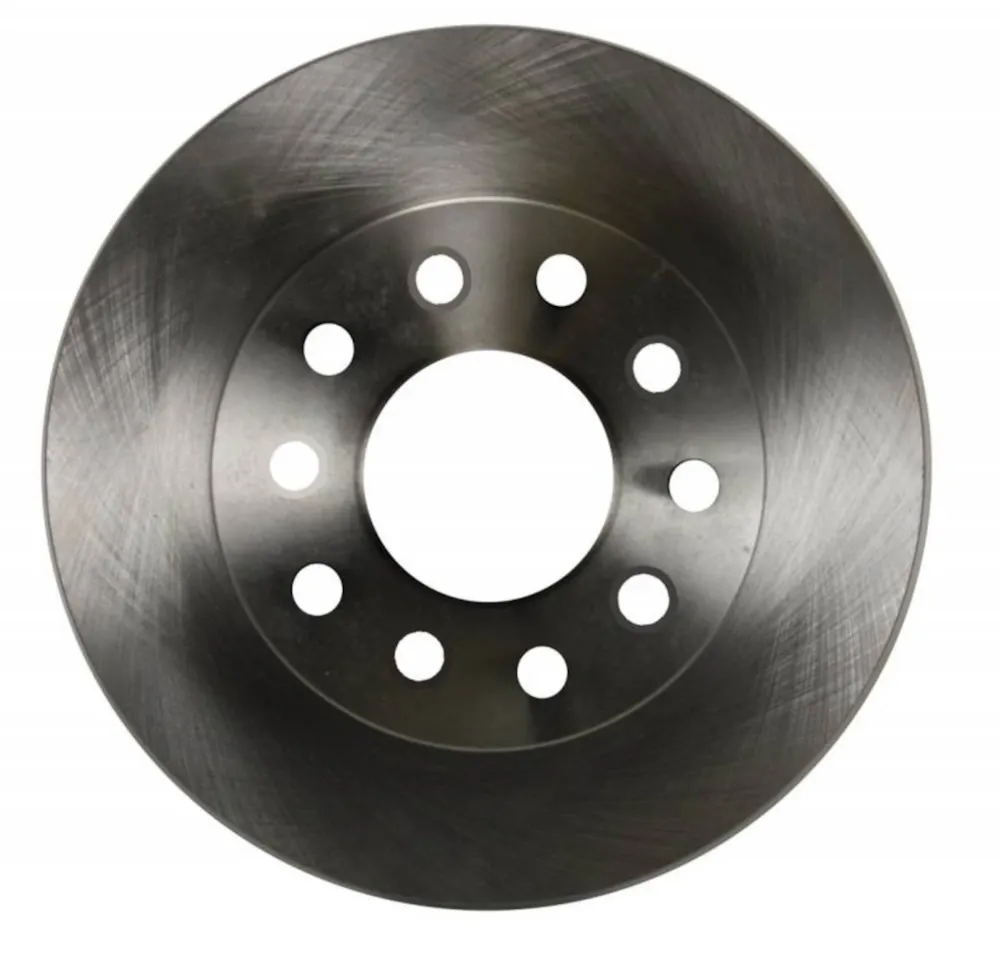

- Includes 11-1/8" rotors
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1984-2001 | Jeep Cherokee |
| 1987-1992 | Jeep Comanche |
| 1993-1998 | Jeep Grand Cherokee |
| 1984-1990 | Jeep Wagoneer |
| 1989-1995 | Jeep Wrangler |
| 1997-2006 | Jeep Wrangler |
Specifications
- GTIN
- 00887753637345
- Weight
- 61 lb
- Height
- 12.5 in
- Length
- 20.5 in
- Width
- 9.75 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- Brake Pad Material
- Semi - Metallic
- Brake Rotor Included
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Caliper Bracket Color
- Silver
- Caliper Bracket Material
- Steel
- Caliper Bracket Mount Hole Center To Center Length
- 5.50
- Caliper Bracket Mount Hole Diameter
- 7/16-20
- Caliper Finish
- Zinc Plated
- Caliper Included
- Yes
- Caliper Material
- Cast Iron
- Caliper Piston Quantity
- 1
- Caliper Slides Included
- Yes
- Disc Construction
- Vented
- Flex Hose 1 Bracket Attached
- No
- Flex Hose 1 Length
- 12.25
- Flex Hose 2 Bracket Attached
- No
- Flex Hose End 1 Fitting Type
- Female
- Flex Hose End 2 Fitting Type
- Banjo
- Grade Type
- Performance
- Minimum Recommended Wheel Diameter (in)
- 15 in.
- Notes
- Will not work with factory ABS sensors, Works with Dana 35 C-Clip axles only, Fits Dana 44 in 1997-06 Wrangler only
- Parking Brake Provision
- Yes
- Position
- Rear
- Rotor Bolt Pattern
- 5 x 4.5 and 5 x 4.75
- Rotor Diameter
- 11.15 in.
- Rotor Finish
- Natural
- Rotor Inside Diameter
- 6.125
- Rotor Material
- Cast Iron
- Rotor Outside Diameter
- 11.16
- Rotor Style
- Standard
- Rotor Thickness
- .980
- Status
- Existing
- Surface Type
- Smooth
- TLE
- LEED Brakes Rear Disc Brake Kit with Plain Rotors and Zinc Plated Calipers
- Title
- LEED Brakes Rear Disc Brake Kit with Plain Rotors and Zinc Plated Calipers
- Wheel Lug Hole Quantity
- 5
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1984-2001 Jeep Cherokee; 1987-1992 Jeep Comanche; 1993-1998 Jeep Grand Cherokee; 1984-1990 Jeep Wagoneer; 1989-1995 Jeep Wrangler; 1997-2006 Jeep Wrangler
