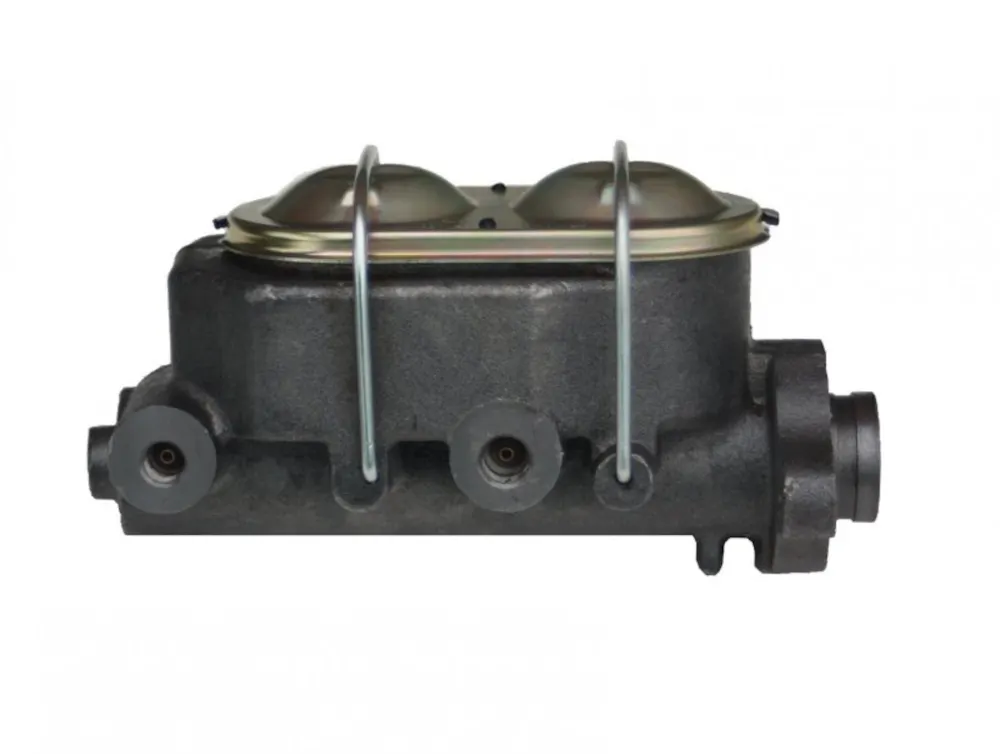

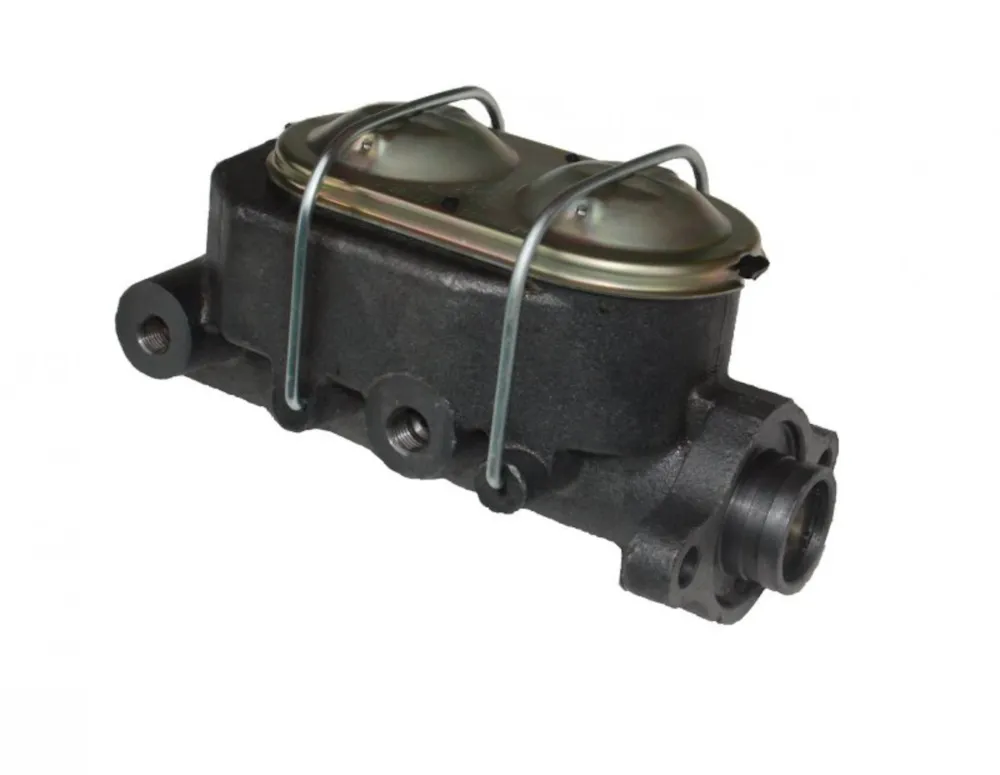

LEED Brakes / MC003
Part #: MC003
UPC: 887753636751
Loading...
Notify me when this item is in stock.
Description: Master cylinder 1 inch bore GM style with left side outlets; Leed Brakes master cylinders are all new units assembled with the highest quality machined components. All units include pushrod spacers and outlet plugs when needed to insure any easy installation in both power and manual applications.
Description:
Description
New 1" bore power or manual brake master cylinder with left side outlets, 9/16-18 & 1/2-20 outlets. Contact us for information on this GM master cylinder.
Features & benefits
- New unit not remanufactured
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1967-1976 | Chevrolet Corvette |
Specifications
- GTIN
- 00887753636751
- Weight
- 8 lb
- Height
- 9 in
- Length
- 11 in
- Width
- 7.5 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- Bleeder Hoses Included
- Yes
- Bleeder Screw Included
- No
- Brake Booster Included
- No
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Dust Boot Included
- No
- Gasket Or Seal Included
- Yes
- Grade Type
- Standard Replacement
- Master Cylinder Bore Diameter
- 1.00
- Master Cylinder Bore Size
- 1 in
- Master Cylinder Cap Included
- Yes
- Master Cylinder Finish
- Natural
- Master Cylinder Included
- Yes
- Master Cylinder Material
- Cast Iron
- Mounting Bracket Included
- No
- Mounting Hardware Included
- No
- Mounting Hole Diameter
- .400
- Mounting Hole Quantity
- 2
- Piston Quantity
- 2
- Port Quantity
- 2
- Position
- Front
- Pushrod Included
- No
- Reservoir Included
- Yes
- Reservoir Material
- Cast Iron
- Reservoir Type
- Dual
- Sensor Included
- No
- Status
- Existing
- TLE
- LEED Brakes Master cylinder 1 inch bore GM style with left side outlets
- Title
- LEED Brakes Master cylinder 1 inch bore GM style with left side outlets
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1967-1976 Chevrolet Corvette
