LEED Brakes · H96
Part #: H96
UPC: 887753639677
Log in for inventory
Notify me when this item is in stock.

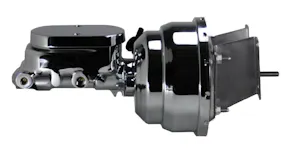

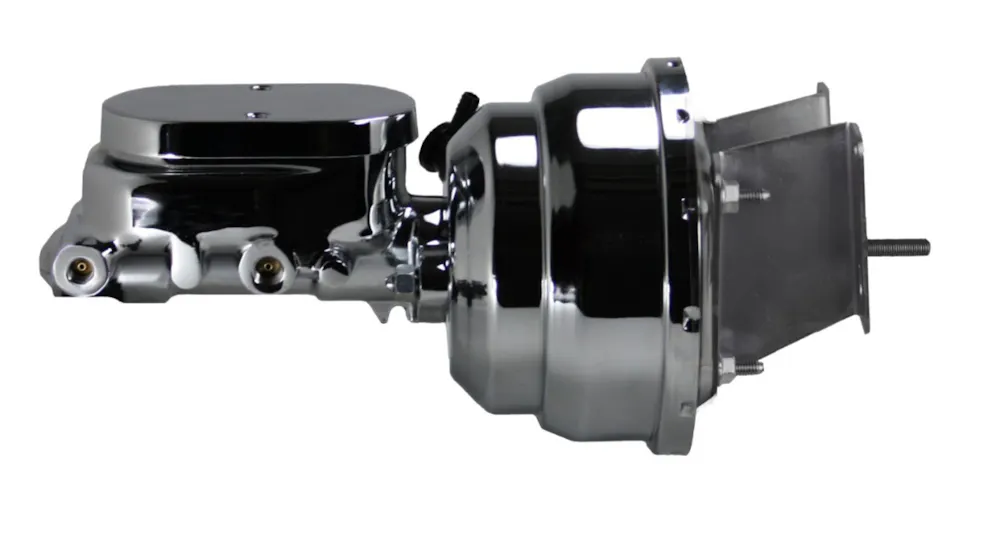

Description: 8 inch dual power booster, 1-1/8 inch bore flat top master (Chrome); Leed Brakes power booster assemblies are shipped fully assembled. This insures proper adjustment of the pushrod between the power booster and master cylinder and proper fitment all valves, lines and brackets for a trouble-free installation.
Description:
Description

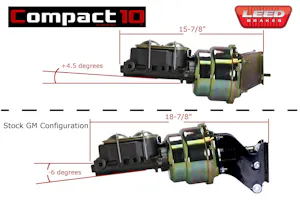

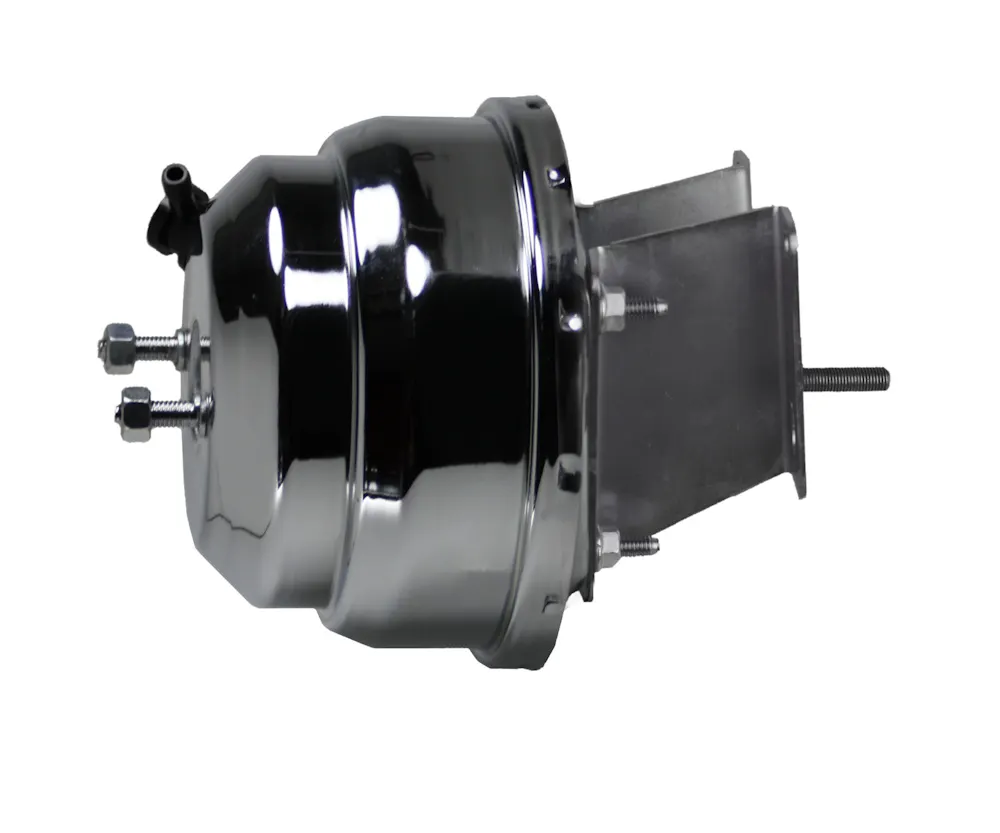

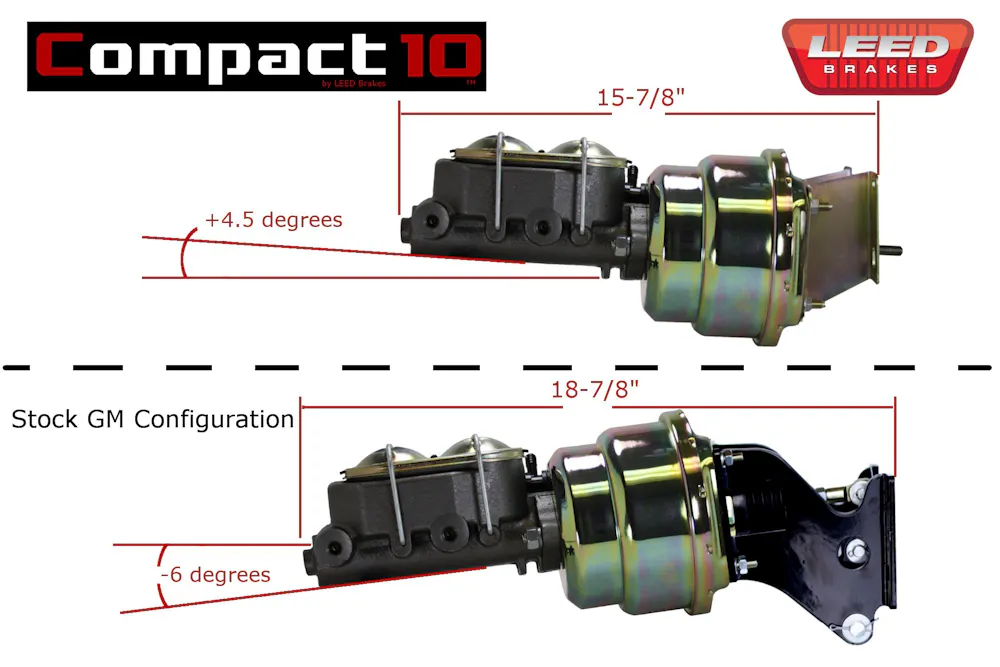

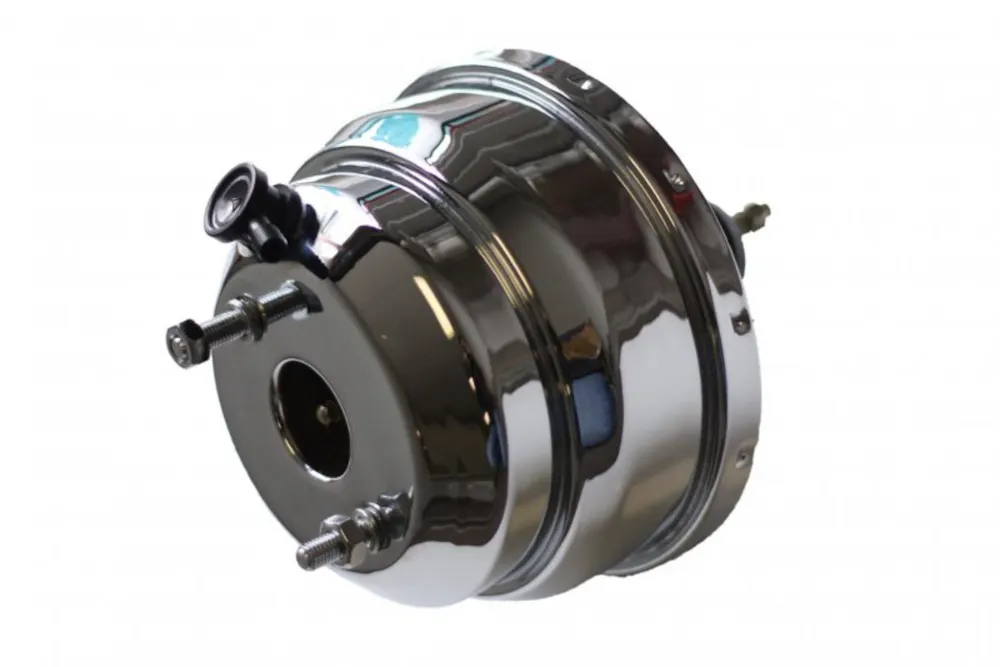

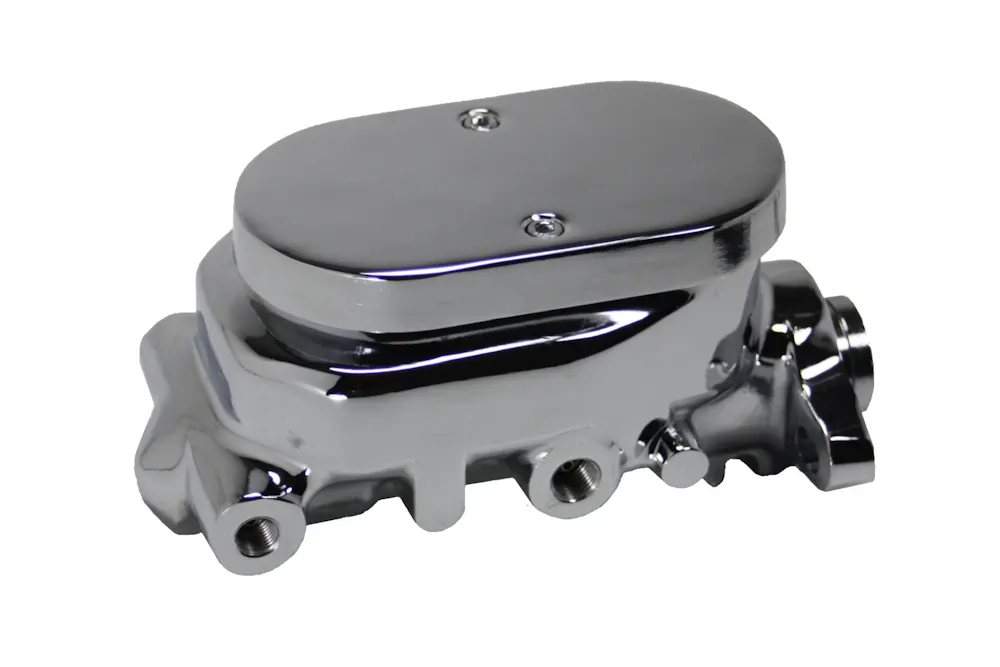

Compact-10 Series 8" Dual Diaphragm chrome plated power brake booster. This 8" GM truck brake booster is hand polished before a chrome finish is applied for a top quality finish. The 1-1/8in Bore chrome aluminum master cylinder is ideal for most disc/drum and 4 wheel disc brake applications.The Compact-10 mounting bracket and push rod assembly is a direct fit to your factory firewall. The Compact-10 series boosters are designed to mount closer to the firewall at a more natural angle than a factory style booster. This type of mount gives you the look & brake performance you want out of your truck.
Features & benefits
- New unit not remanufactured
- Includes brackets and pushrod
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1969-1972 | Chevrolet Blazer |
| 1967 | Chevrolet C10 Panel |
| 1967-1972 | Chevrolet C10 Pickup |
| 1967-1972 | Chevrolet C10 Suburban |
| 1967-1972 | Chevrolet K10 Pickup |
| 1967-1972 | Chevrolet K10 Suburban |
| 1967-1972 | GMC C15/C1500 Pickup |
| 1968-1972 | GMC C15/C1500 Suburban |
| 1970-1972 | GMC Jimmy |
| 1967-1972 | GMC K15/K1500 Pickup |
| 1967-1972 | GMC K15/K1500 Suburban |
Specifications
- GTIN
- 00887753639677
- Weight
- 18 lb
- Height
- 10.5 in
- Length
- 18.25 in
- Width
- 10.5 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- Bleeder Hoses Included
- Yes
- Booster Diaphragm Type
- Dual
- Booster Housing Diameter
- 8
- Booster Type
- Vacuum
- Bracket Included
- Yes
- Brake Booster Diameter
- 8 in.
- Brake Booster Finish
- Chrome
- Brake Booster Included
- Yes
- Brake Booster Type
- Dual Diaphragm
- Brake Lines Included
- No
- Brake Pedal Pushrod Included
- Yes
- Brake Pedal Rod Extension Included
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Grade Type
- Performance
- Housing Material
- Steel
- Master Cylinder Bore Size
- 1.125
- Master Cylinder Cap Included
- Yes
- Master Cylinder Finish
- Chrome
- Master Cylinder Included
- Yes
- Master Cylinder Material
- Aluminum
- Master Cylinder Port Quantity
- 4
- Mounting Hardware Included
- No
- Status
- NEW
- TLE
- LEED Brakes 8 inch dual power booster, 1-1/8 inch bore flat top master (Chrome)
- Title
- LEED Brakes 8 inch dual power booster, 1-1/8 inch bore flat top master (Chrome)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1972 Chevrolet Blazer; 1967 Chevrolet C10 Panel; 1967-1972 Chevrolet C10 Pickup; 1967-1972 Chevrolet C10 Suburban; 1967-1972 Chevrolet K10 Pickup; 1967-1972 Chevrolet K10 Suburban; 1967-1972 GMC C15/C1500 Pickup; 1968-1972 GMC C15/C1500 Suburban; 1970-1972 GMC Jimmy; 1967-1972 GMC K15/K1500 Pickup; 1967-1972 GMC K15/K1500 Suburban
