LEED Brakes / FC1003-E05X
Part #: FC1003-E05X
UPC: 887753631756
Loading...
Notify me when this item is in stock.

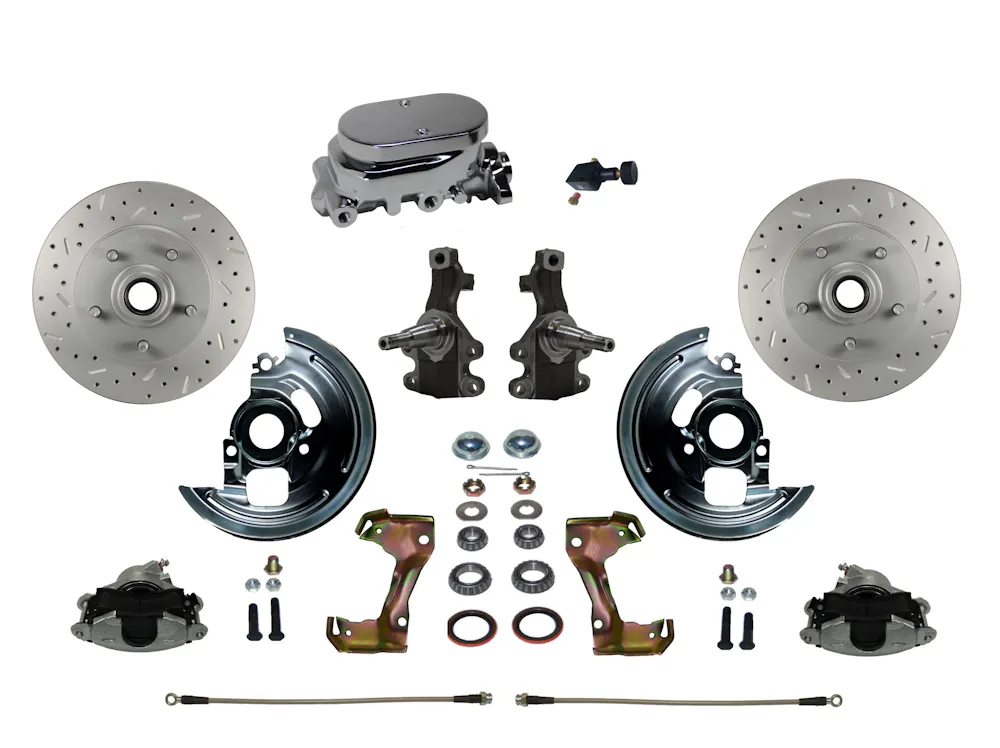

Description: Manual 2" Drop Spindle Kit with Drilled Rotors and Zinc Plated Calipers; Leed Brakes complete drum to disc brake conversion kit consists of all new precision machined components. Designed for easy bolt on installation the kit includes complete step by step instructions and industry leading tech support.
Description:
Description
Add the safety, reliability and performance of disc brakes to your vehicle with our drum to disc brake conversion. In this kit you receive everything you need to mount single piston disc brakes to the control arms of your vehicle. All GM brake set components used in these kits are new high quality, precision machined products. Reduce brake fade and increase your braking performance with this hi-performance cross drilled, slotted & zinc plated rotor. With a cross drilled and slotted rotor you remove gases that build up between the brake pad and rotor during heavy braking. The removal of this gas will give you better contact between the brake pad and rotor increasing your braking Power Front Disc Brake. Oh yea, they look pretty cool too!
Features & benefits

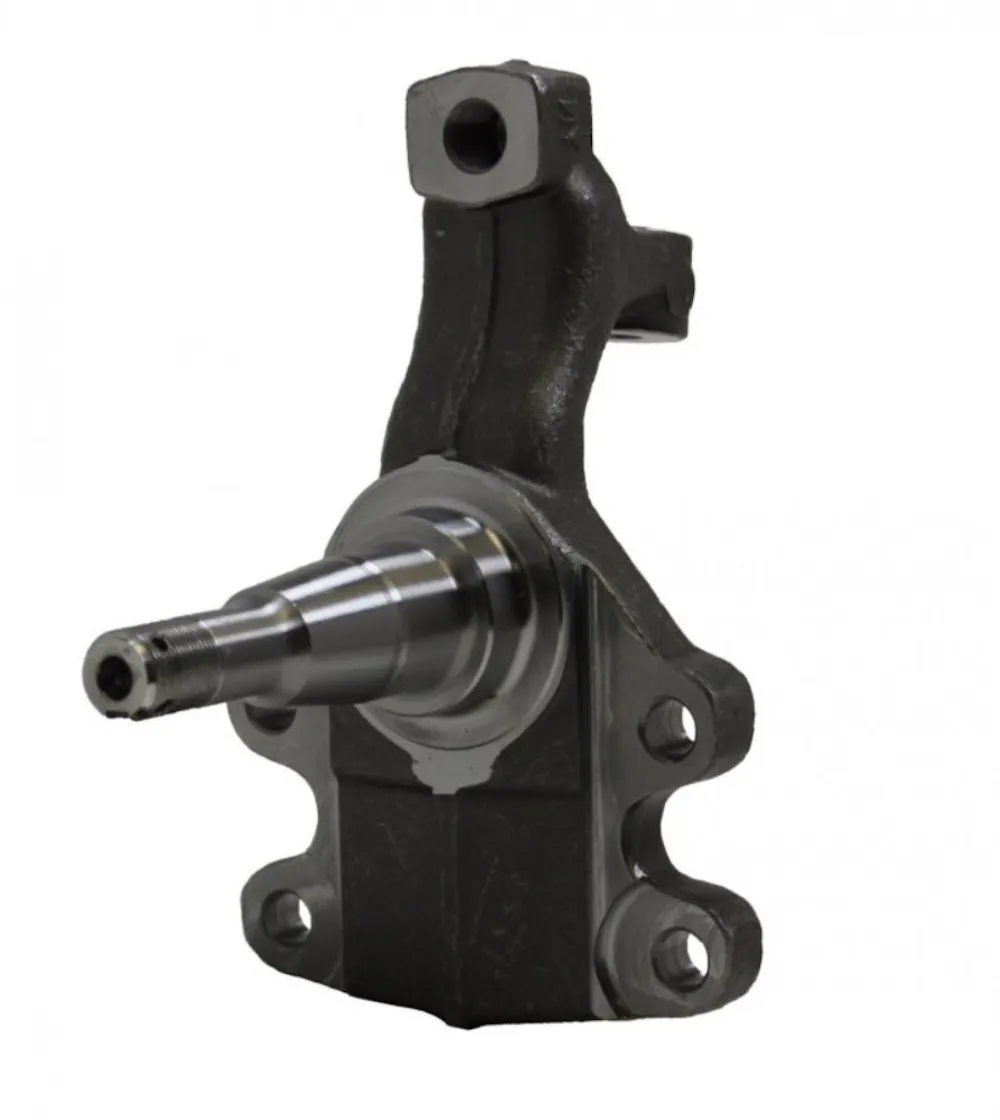

- Includes new 2" drop disc brake spindles
- Includes new single piston calipers and 11" rotors
Information
Ships in 3 Boxes.
Application summary
| Year | Make / model |
|---|---|
| 1973-1974 | Buick Apollo |
| 1970-1972 | Buick GS |
| 1968-1969 | Buick GS 350 |
| 1968-1969 | Buick GS 400 |
| 1970-1972 | Buick GS 455 |
| 1964-1972 | Buick Skylark |
| 1967-1969 | Chevrolet Camaro |
| 1964-1972 | Chevrolet Chevelle |
| 1968 | Chevrolet Chevy II |
| 1964-1972 | Chevrolet El Camino |
| 1970-1972 | Chevrolet Monte Carlo |
| 1969-1974 | Chevrolet Nova |
| 1971-1972 | GMC Sprint |
| 1965-1971 | Oldsmobile 442 |
| 1971-1972 | Oldsmobile Custom Cruiser |
| 1964-1972 | Oldsmobile Cutlass |
| 1967-1972 | Oldsmobile Cutlass Supreme |
| 1964-1972 | Oldsmobile F85 |
| 1973-1974 | Oldsmobile Omega |
| 1964-1972 | Oldsmobile Vista Cruiser |
| 1967-1969 | Pontiac Firebird |
| 1969-1972 | Pontiac Grand Prix |
| 1964-1972 | Pontiac GTO |
| 1964-1972 | Pontiac LeMans |
| 1971-1974 | Pontiac Ventura |
Specifications
- GTIN
- 00887753631756
- Weight
- 49 lb
- Height
- 11 in
- Length
- 12 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- Brake Booster Included
- No
- Brake Lines Included
- No
- Brake Pad Material
- Semi - Metallic
- Brake Rotor Included
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Caliper Bracket Color
- Gold
- Caliper Bracket Material
- Steel
- Caliper Bracket Mount Hole Center To Center Length
- 7.00
- Caliper Bracket Mount Hole Diameter
- .438

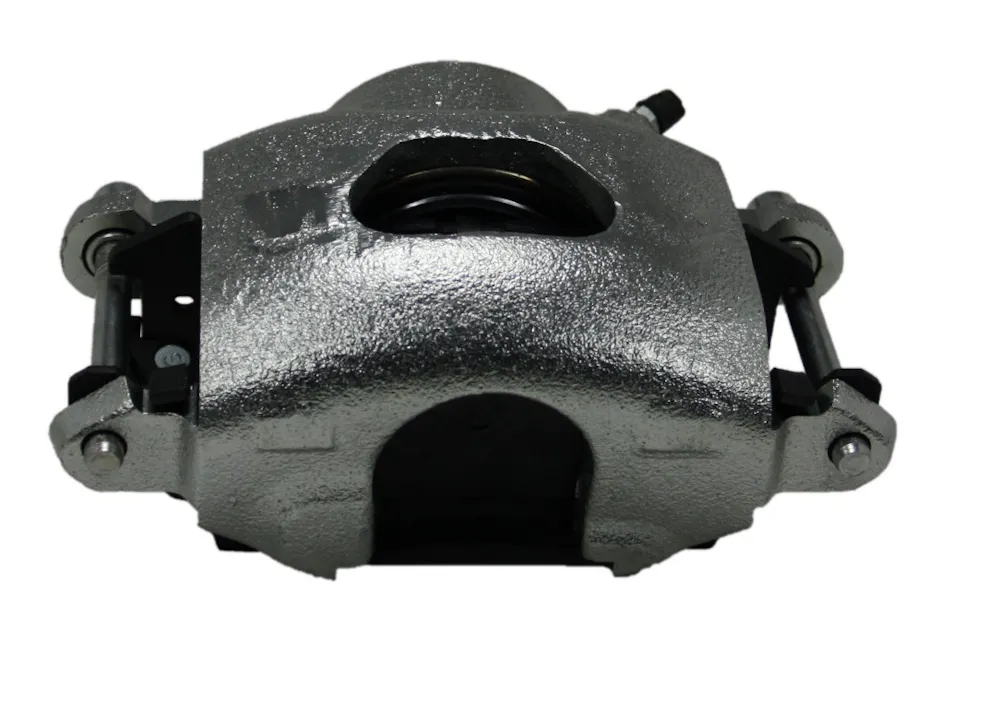

- Caliper Finish
- Zinc Plated
- Caliper Included
- Yes
- Caliper Material
- Cast Iron
- Caliper Piston Quantity
- 1
- Caliper Slides Included
- Yes
- Disc Construction
- Vented
- Flex Hose 1 Bracket Attached
- No
- Flex Hose 1 Length
- 15.75
- Flex Hose 2 Bracket Attached
- No
- Flex Hose End 1 Fitting Type
- Female
- Flex Hose End 2 Fitting Type
- Banjo
- Grade Type
- Performance
- Master Cylinder Bore Size
- 1 in
- Master Cylinder Finish
- Natural

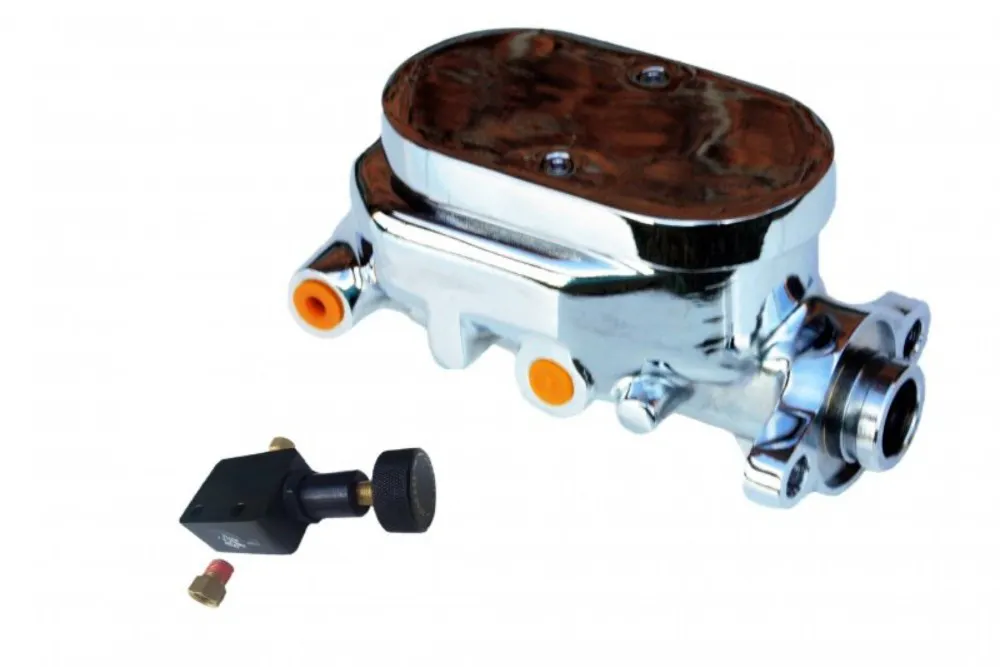

- Master Cylinder Included
- Yes
- Master Cylinder Material
- Cast Iron
- Minimum Recommended Wheel Diameter (in)
- 14 x 7
- Position
- Front
- Rotor Bolt Pattern
- 5 x 4.75 in
- Rotor Diameter
- 11 in.
- Rotor Finish
- Zinc Coating
- Rotor Material
- Cast Iron
- Rotor Outside Diameter
- 11.00

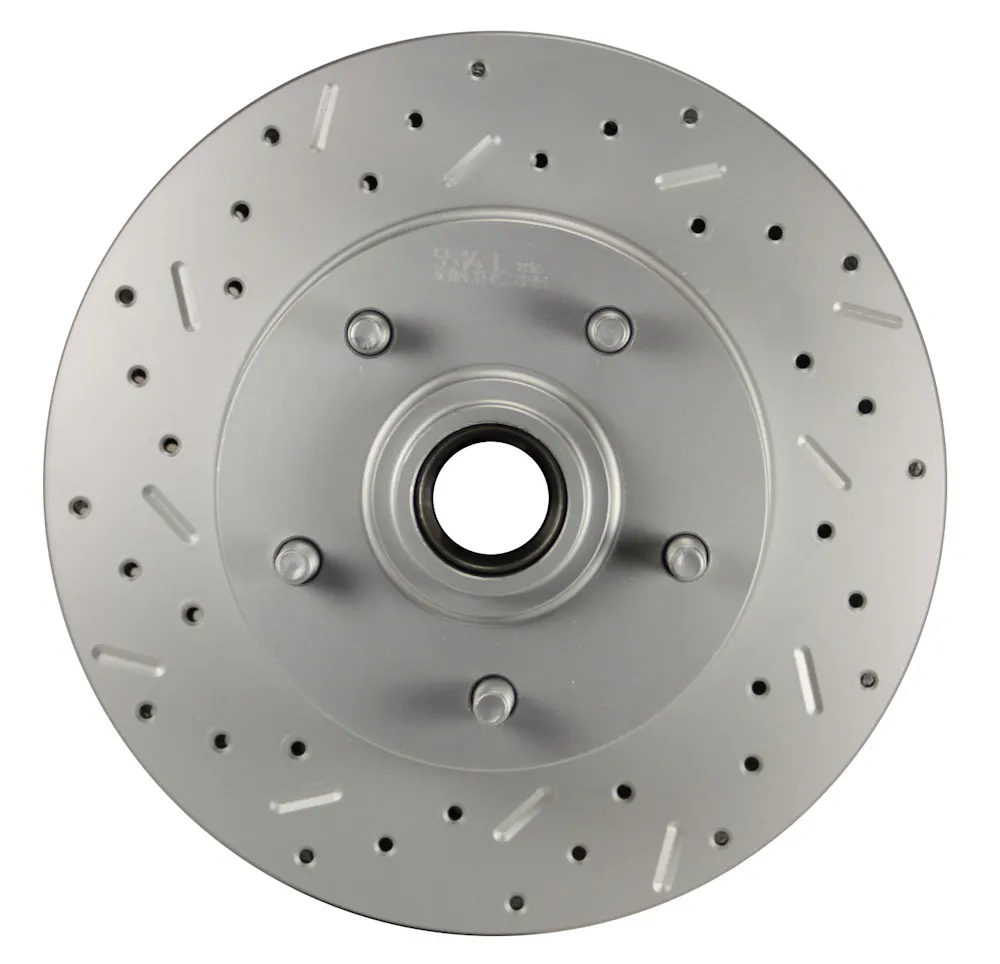

- Rotor Style
- Max Grip XDS - Cross Drilled & Slotted
- Rotor Thickness
- 1.035
- Spindle Finish
- Natural
- Spindle Material
- Forged Steel
- Spindle Typle
- 2 in Drop
- Spindles Included
- Yes - 2 in. Drop
- Status
- Existing
- Surface Type
- Slotted X Drilled
- TLE
- LEED Brakes Manual 2" Drop Spindle Kit with Drilled Rotors and Zinc Plated Calipers
- Title
- LEED Brakes Manual 2" Drop Spindle Kit with Drilled Rotors and Zinc Plated Calipers
- Wheel Lug Hole Quantity
- 5
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973-1974 Buick Apollo; 1970-1972 Buick GS; 1968-1969 Buick GS 350; 1968-1969 Buick GS 400; 1970-1972 Buick GS 455; 1964-1972 Buick Skylark; 1967-1969 Chevrolet Camaro; 1964-1972 Chevrolet Chevelle; 1968 Chevrolet Chevy II; 1964-1972 Chevrolet El Camino; 1970-1972 Chevrolet Monte Carlo; 1969-1974 Chevrolet Nova; 1971-1972 GMC Sprint; 1965-1971 Oldsmobile 442; 1971-1972 Oldsmobile Custom Cruiser; 1964-1972 Oldsmobile Cutlass; 1967-1972 Oldsmobile Cutlass Supreme; 1964-1972 Oldsmobile F85; 1973-1974 Oldsmobile Omega; 1964-1972 Oldsmobile Vista Cruiser; 1967-1969 Pontiac Firebird; 1969-1972 Pontiac Grand Prix; 1964-1972 Pontiac GTO; 1964-1972 Pontiac LeMans; 1971-1974 Pontiac Ventura
