LEED Brakes / C63
Part #: C63
UPC: 887753628831
Loading...
Notify me when this item is in stock.

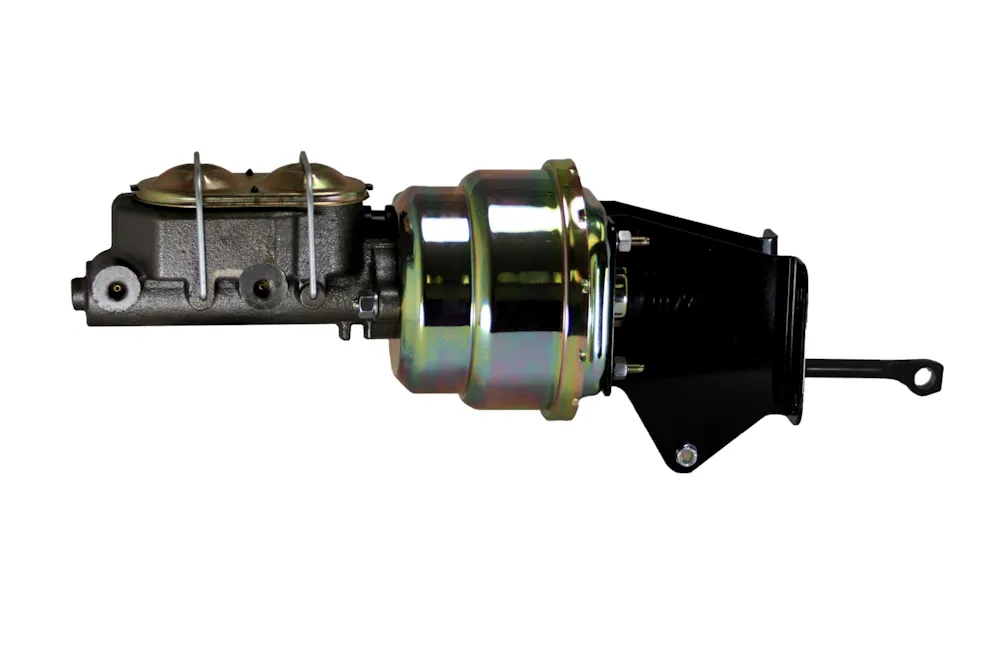

Description: 7 inch dual power booster, 1 inch bore master (Zinc); Leed Brakes power booster assemblies are shipped fully assembled. This insures proper adjustment of the pushrod between the power booster and master cylinder and proper fitment all valves, lines and brackets for a trouble-free installation.
Description:
Description

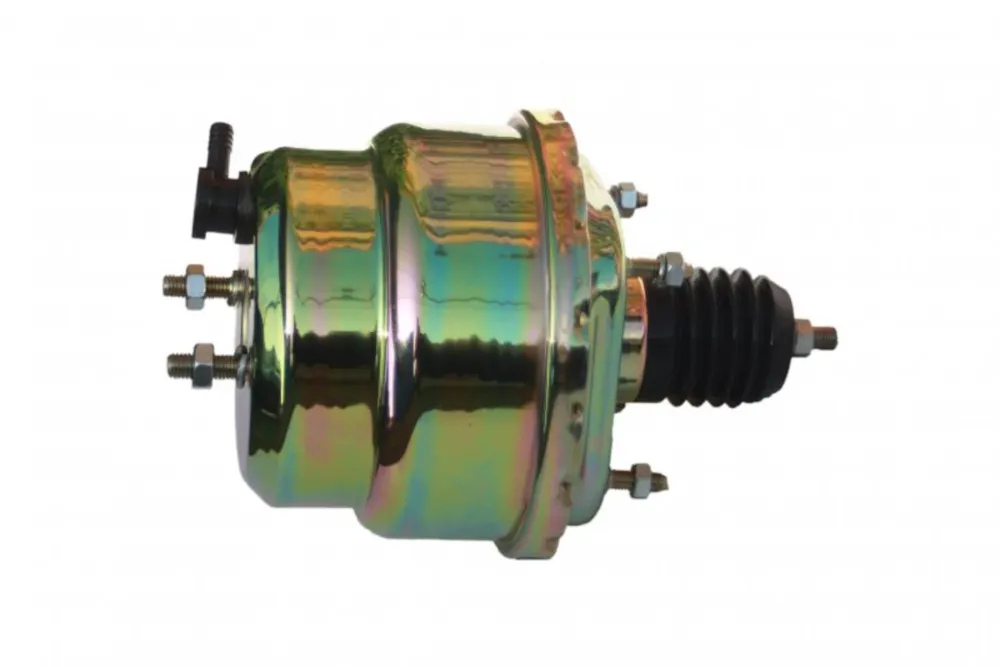

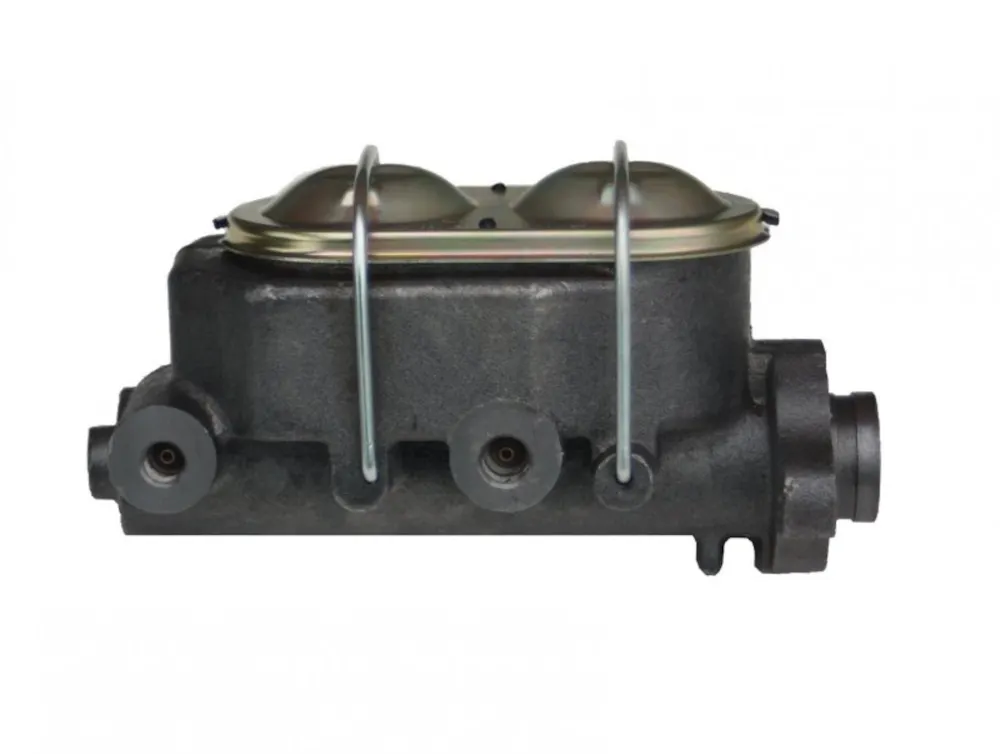

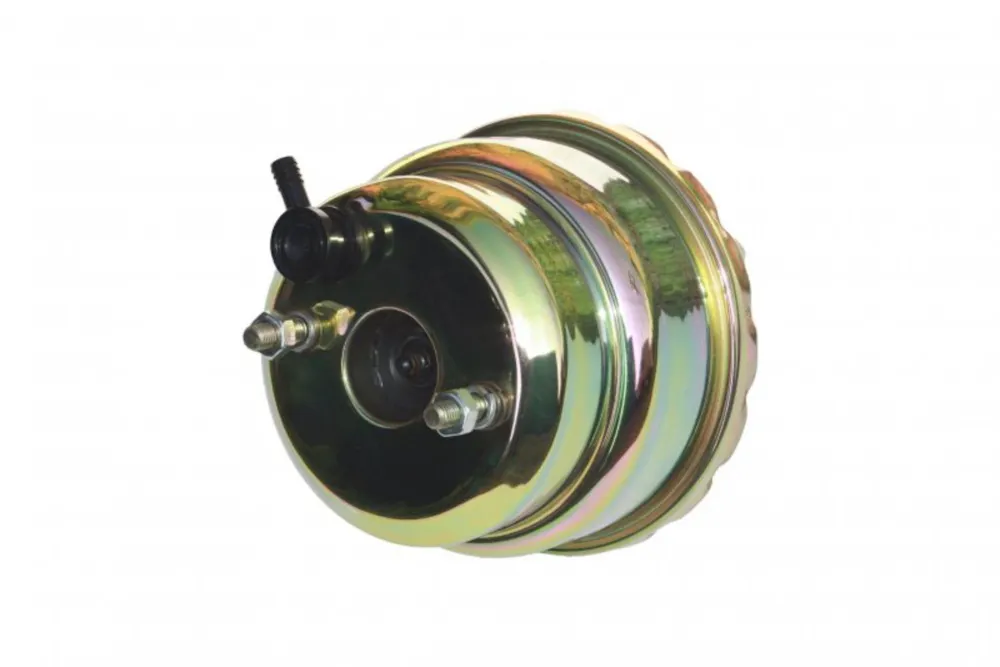

New 7" Dual Diaphragm zinc plated power brake booster kit. This 7" power booster is hand polished before a yellow zinc finish is applied for a top quality finish. The booster mounting brackets are a direct fit to your factory firewall. Also Included in this Jeep brake booster kit is a new 1" bore master cylinder perfect for most front disc /rear drum or 4 wheel disc brake applications.
Features & benefits
- New unit not remanufactured
- Includes brackets and pushrod
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1976-1983 | Jeep CJ5 |
| 1976-1986 | Jeep CJ7 |
Specifications
- GTIN
- 00887753628831
- Weight
- 18 lb
- Height
- 12 in
- Length
- 20 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- Bleeder Hoses Included
- Yes
- Booster Diaphragm Type
- Dual
- Booster Housing Diameter
- 7
- Booster Type
- Vacuum
- Bracket Included
- Yes
- Brake Booster Diameter
- 7 in.
- Brake Booster Finish
- Zinc
- Brake Booster Included
- Yes
- Brake Booster Type
- Dual Diaphragm
- Brake Lines Included
- No
- Brake Pedal Pushrod Included
- Yes
- Brake Pedal Rod Extension Included
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Grade Type
- Performance
- Housing Material
- Steel
- Master Cylinder Bore Size
- 1.00
- Master Cylinder Cap Included
- Yes
- Master Cylinder Finish
- Natural
- Master Cylinder Included
- Yes
- Master Cylinder Material
- Cast Iron
- Master Cylinder Port Quantity
- 2
- Mounting Hardware Included
- No
- Status
- Existing
- TLE
- LEED Brakes 7 inch dual power booster, 1 inch bore master (Zinc)
- Title
- LEED Brakes 7 inch dual power booster, 1 inch bore master (Zinc)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1976-1983 Jeep CJ5; 1976-1986 Jeep CJ7
