LEED Brakes / 78
Part #: 78
UPC: 887753625823
Loading...
Notify me when this item is in stock.

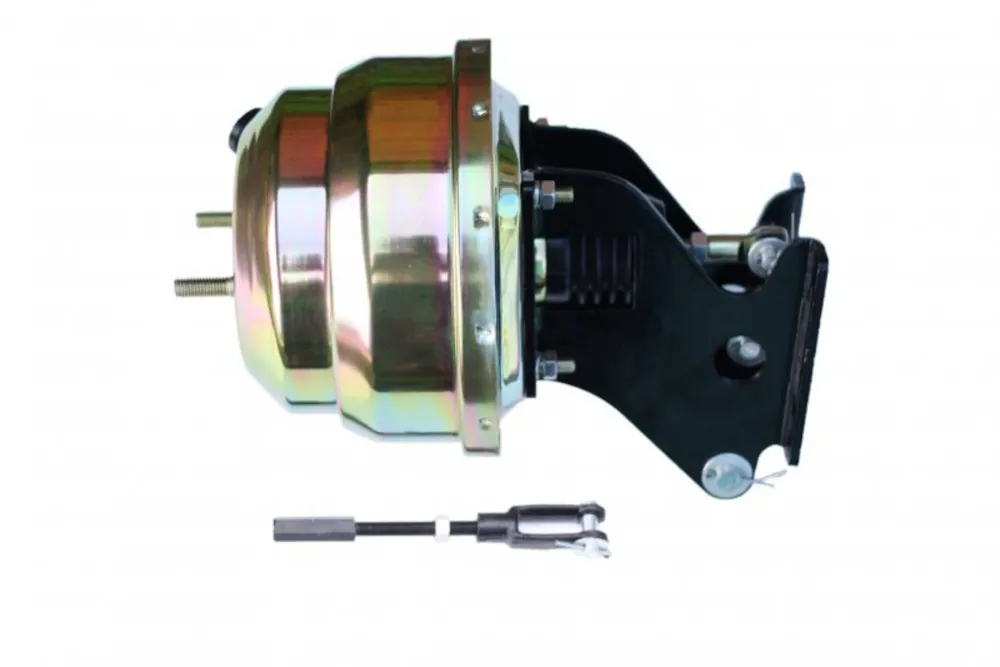

Description: 8 inch Dual power booster with bracket (Zinc); Leed Brakes power booster assemblies are shipped fully assembled. This insures proper adjustment of the pushrod between the power booster and master cylinder and proper fitment all valves, lines and brackets for a trouble-free installation.
Description:
Description
New 8" Dual Diaphragm zinc plated power brake booster kit. This 8" power booster is hand polished before a yellow zinc finish is applied for a top quality finish. The black powder coated mount and pushrod assembly is a direct fit to your factory firewall for that fresh factory look. This power booster will accept most master cylinders with a 3-3/8" mounting flange.
Features & benefits
- New unit not remanufactured
- Direct bolt in replacement for factory power brake booster
- Includes brackets and pushrod for connection to factory brake pedal
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1969-1972 | Chevrolet Blazer |
| 1967 | Chevrolet C10 Panel |
| 1967-1972 | Chevrolet C10 Pickup |
| 1967-1972 | Chevrolet C10 Suburban |
| 1967-1972 | Chevrolet K10 Pickup |
| 1967-1972 | Chevrolet K10 Suburban |
| 1967-1972 | GMC C15/C1500 Pickup |
| 1968-1972 | GMC C15/C1500 Suburban |
| 1970-1972 | GMC Jimmy |
| 1967-1972 | GMC K15/K1500 Pickup |
| 1967-1972 | GMC K15/K1500 Suburban |
Specifications
- GTIN
- 00887753625823
- Weight
- 15 lb
- Height
- 11 in
- Length
- 12 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- Booster Type
- Vacuum
- Brake Booster Diameter
- 8 in.
- Brake Booster Finish
- Zinc
- Brake Booster Included
- Yes
- Brake Booster Type
- Dual Diaphragm
- Brake Lines Included
- No
- Brake Pedal Pushrod Included
- Yes
- Brake Pedal Rod Extension Included
- Yes
- Brake Service Grade
- Performance
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Diaphragm Type
- Dual
- Housing Diameter
- 8
- Housing Material
- Steel
- Master Cylinder Included
- No
- Mounting Bracket Included
- Yes
- Mounting Hardware Included
- Yes
- Status
- Existing
- TLE
- LEED Brakes 8 inch Dual power booster with bracket (Zinc)
- Title
- LEED Brakes 8 inch Dual power booster with bracket (Zinc)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1972 Chevrolet Blazer; 1967 Chevrolet C10 Panel; 1967-1972 Chevrolet C10 Pickup; 1967-1972 Chevrolet C10 Suburban; 1967-1972 Chevrolet K10 Pickup; 1967-1972 Chevrolet K10 Suburban; 1967-1972 GMC C15/C1500 Pickup; 1968-1972 GMC C15/C1500 Suburban; 1970-1972 GMC Jimmy; 1967-1972 GMC K15/K1500 Pickup; 1967-1972 GMC K15/K1500 Suburban
