LEED Brakes · 5H4
Part #: 5H4
UPC: 887753627162
Log in for inventory
Notify me when this item is in stock.

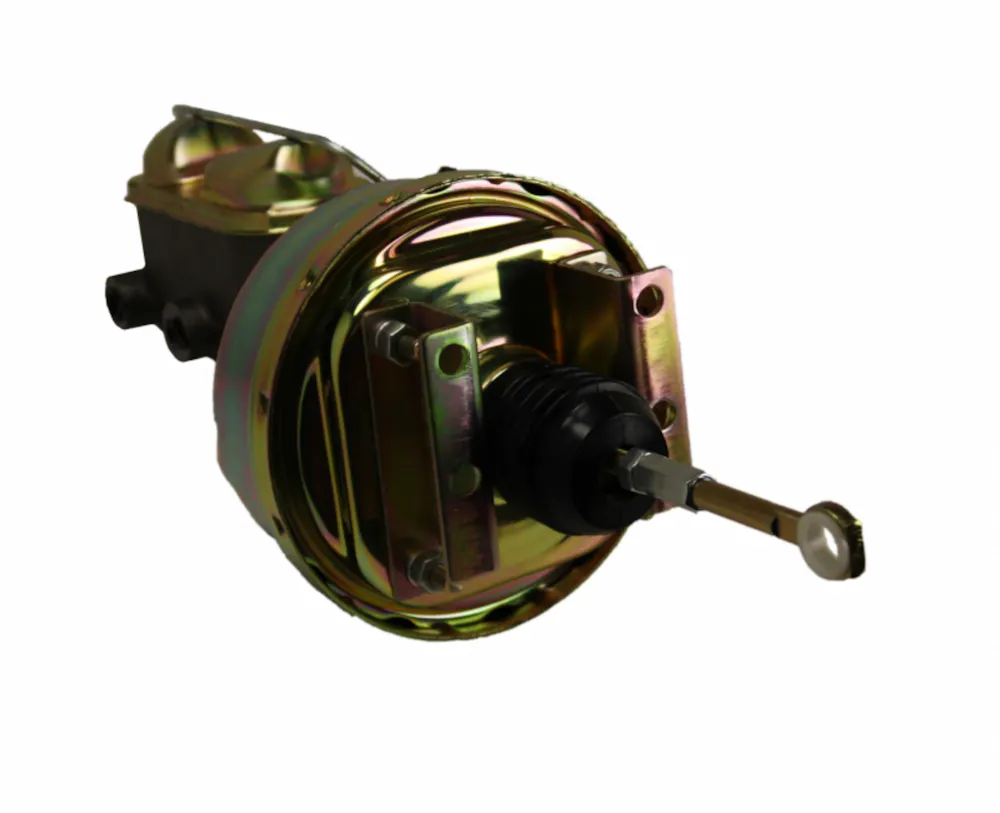

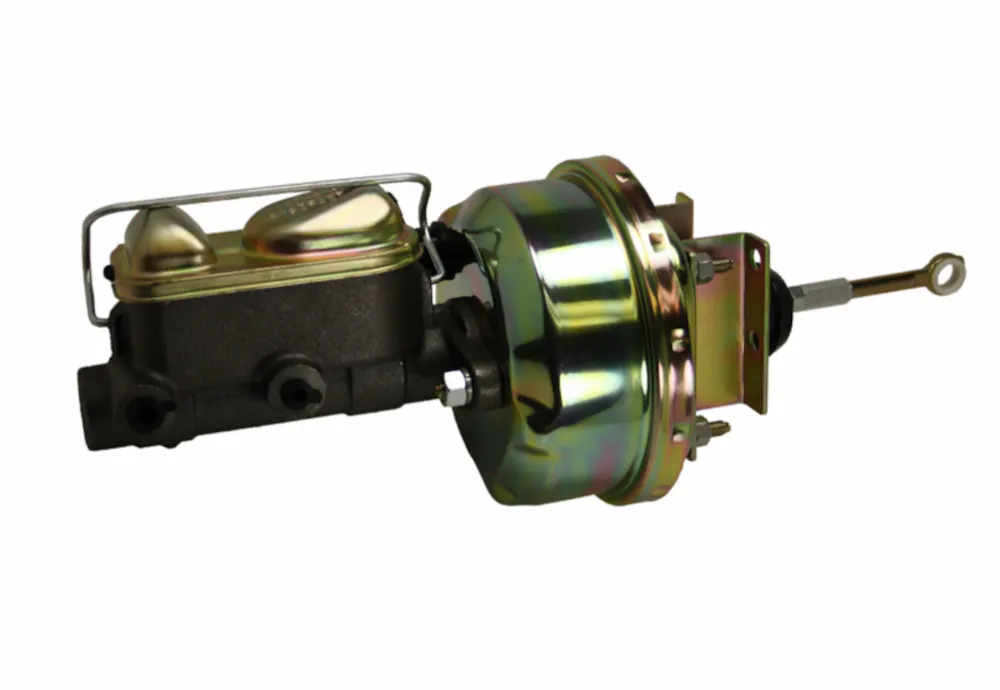

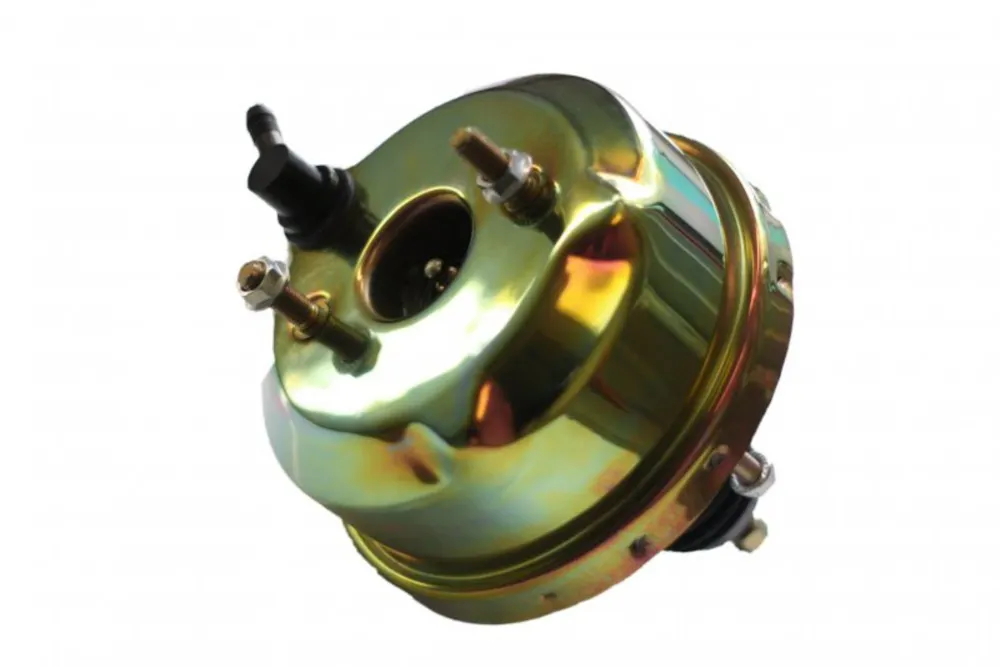

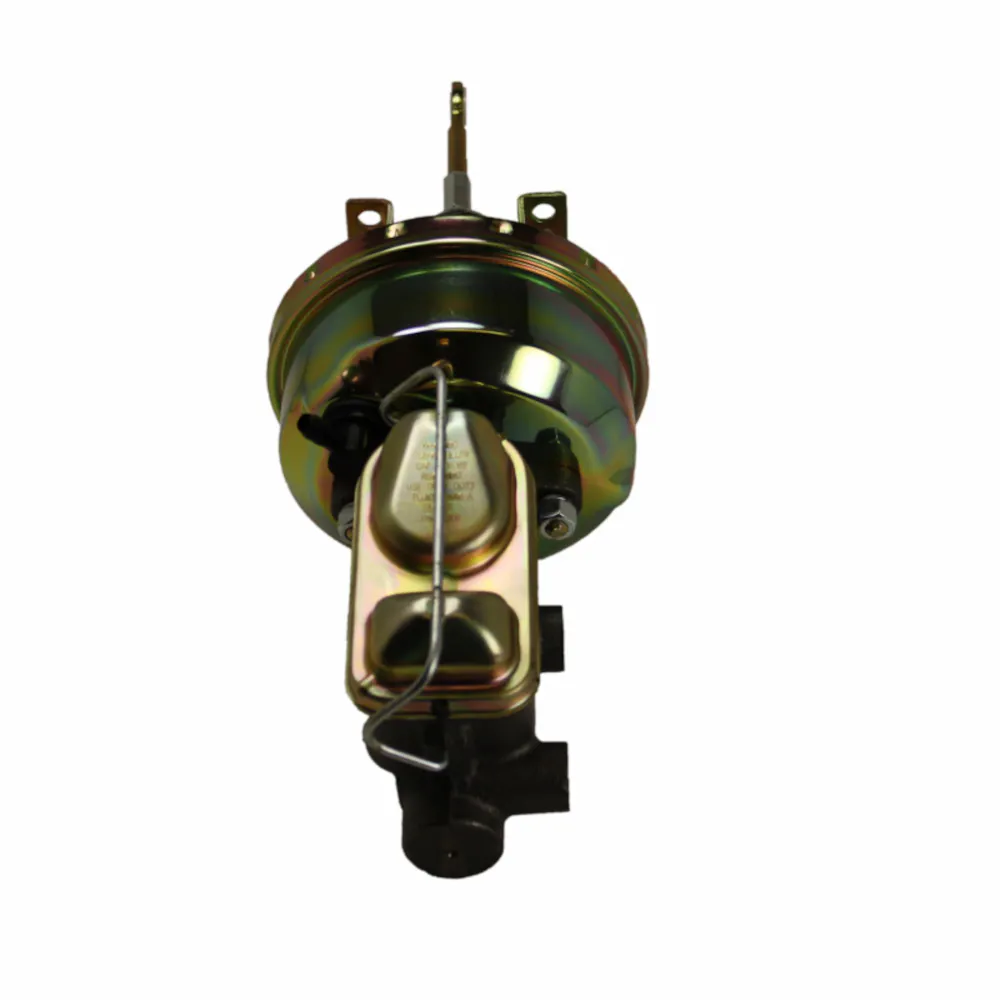

Description: 7 inch power booster, 1 inch bore master (Zinc); Leed Brakes power booster assemblies are shipped fully assembled. This insures proper adjustment of the pushrod between the power booster and master cylinder and proper fitment all valves, lines and brackets for a trouble-free installation.
Description:
Description

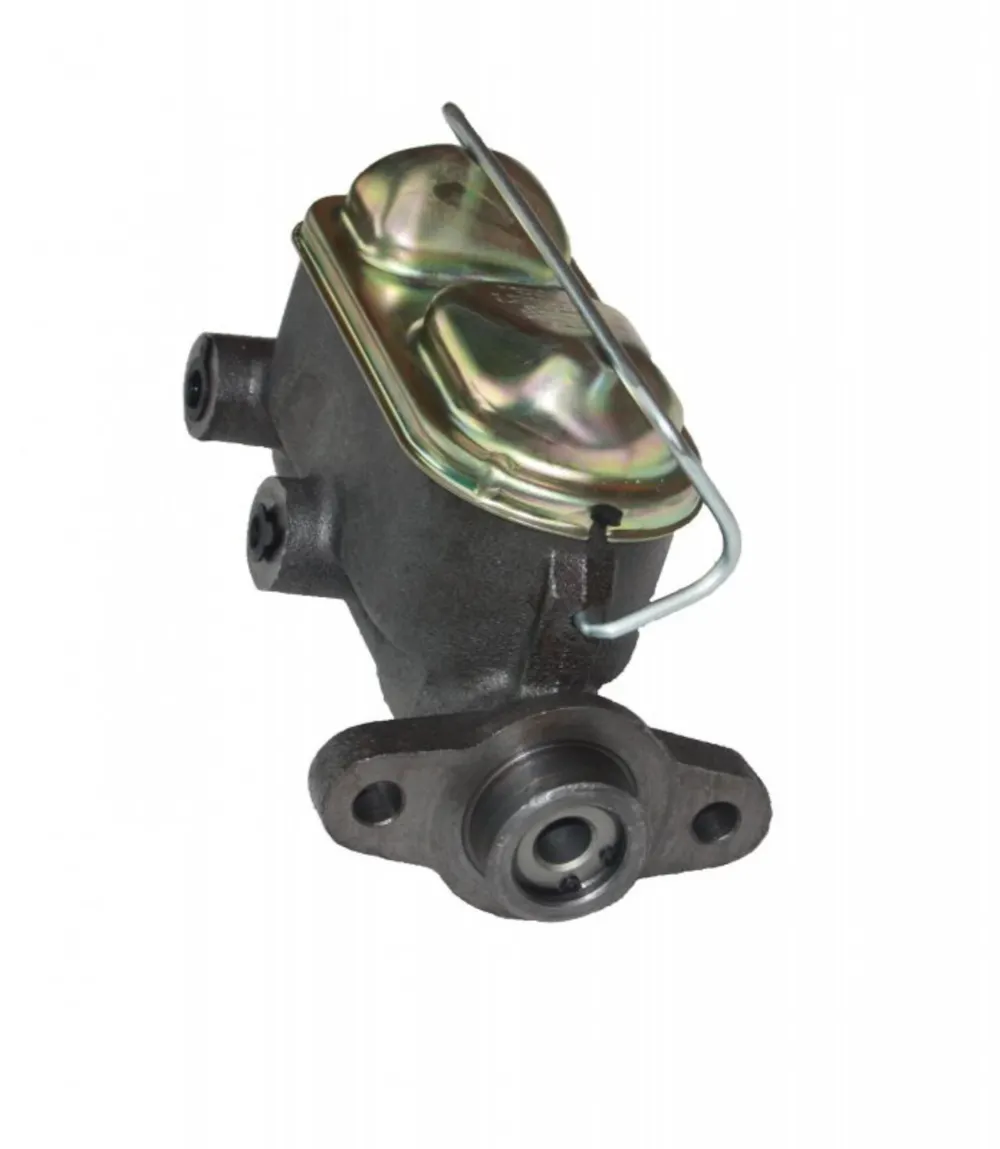

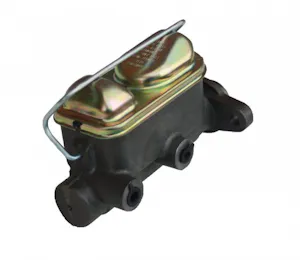

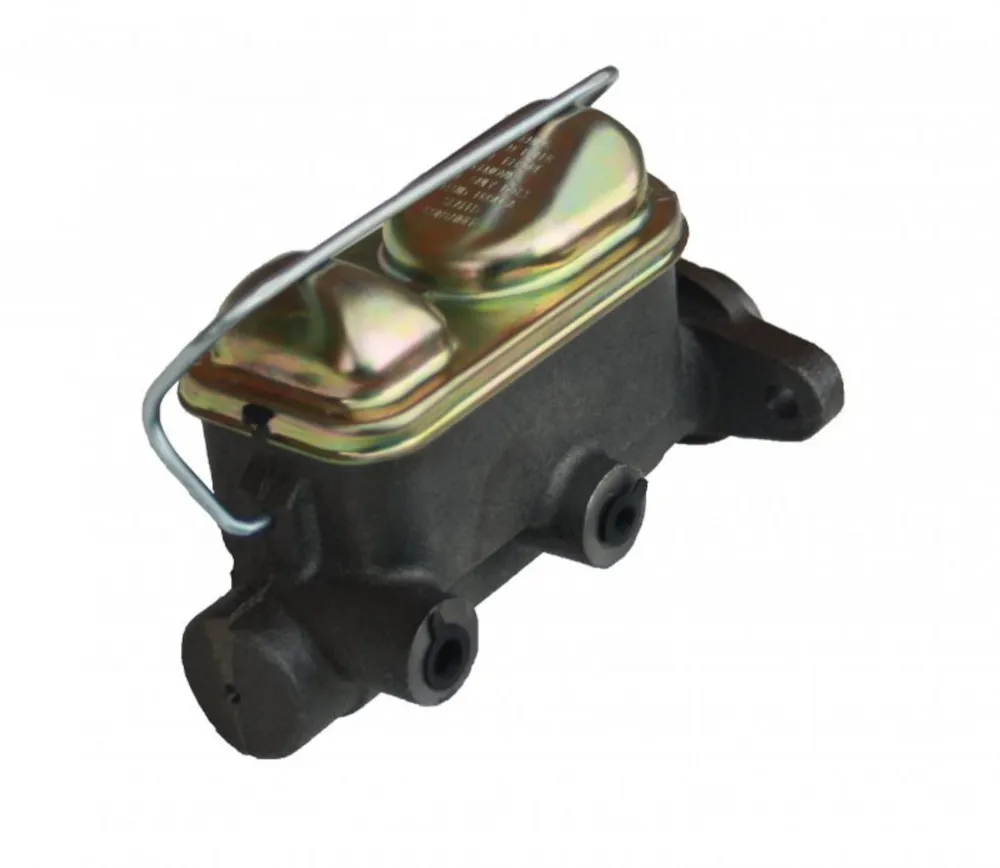

New 7" zinc plated power brake booster & master cylinder this Ford Mustang power booster works great as an upgrade from manual to power brakes for vehicles with automatic transmissions. Also included in this kits is a new factory style 1" bore master cylinder equipped to work with front disc rear drum or 4 wheel disc brake applications.
Features & benefits
- New unit not remanufactured
- Includes brackets and pushrod
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1964-1966 | Ford Mustang |
Specifications
- GTIN
- 00887753627162
- Weight
- 15 lb
- Height
- 10.5 in
- Length
- 18.25 in
- Width
- 10.5 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes

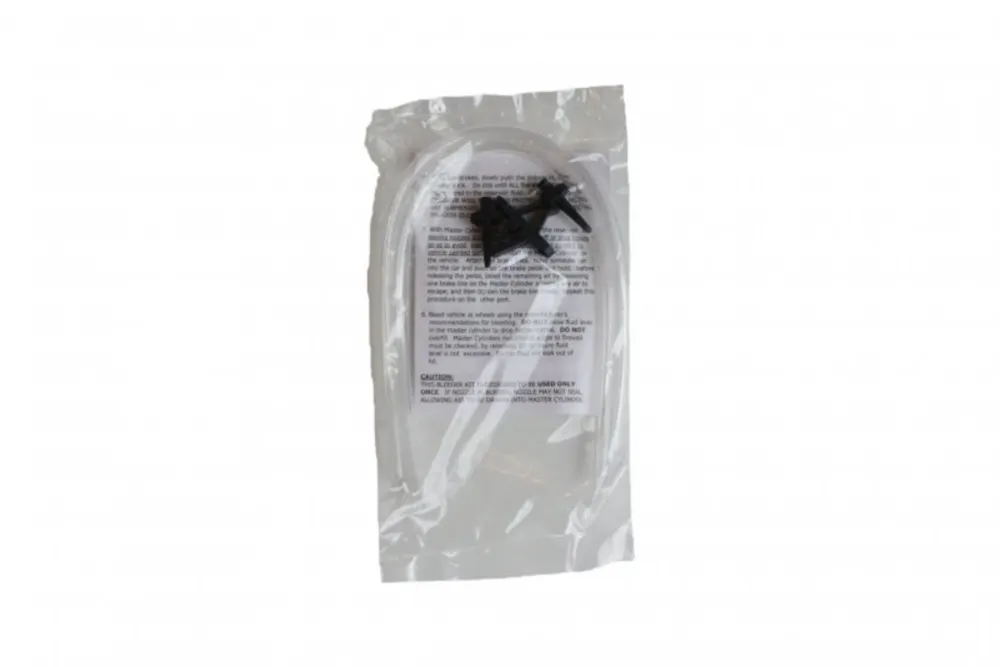

- Bleeder Hoses Included
- Yes
- Booster Diaphragm Type
- Single
- Booster Housing Diameter
- 7
- Booster Type
- Vacuum
- Bracket Included
- Yes
- Brake Booster Diameter
- 7 in.
- Brake Booster Finish
- Zinc
- Brake Booster Included
- Yes
- Brake Booster Type
- Single Diaphragm
- Brake Lines Included
- No
- Brake Pedal Pushrod Included
- Yes
- Brake Pedal Rod Extension Included
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Grade Type
- Performance
- Housing Material
- Steel
- Master Cylinder Bore Size
- 1.00
- Master Cylinder Cap Included
- Yes
- Master Cylinder Finish
- Natural
- Master Cylinder Included
- Yes
- Master Cylinder Material
- Cast Iron
- Master Cylinder Port Quantity
- 2
- Mounting Hardware Included
- No
- Status
- Existing
- TLE
- LEED Brakes 7 inch power booster, 1 inch bore master (Zinc)
- Title
- LEED Brakes 7 inch power booster, 1 inch bore master (Zinc)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1964-1966 Ford Mustang
Equivalent Parts
LEED Brakes 5H4
