LEED Brakes / 5514
Part #: 5514
UPC: 887753625939
Loading...
Notify me when this item is in stock.

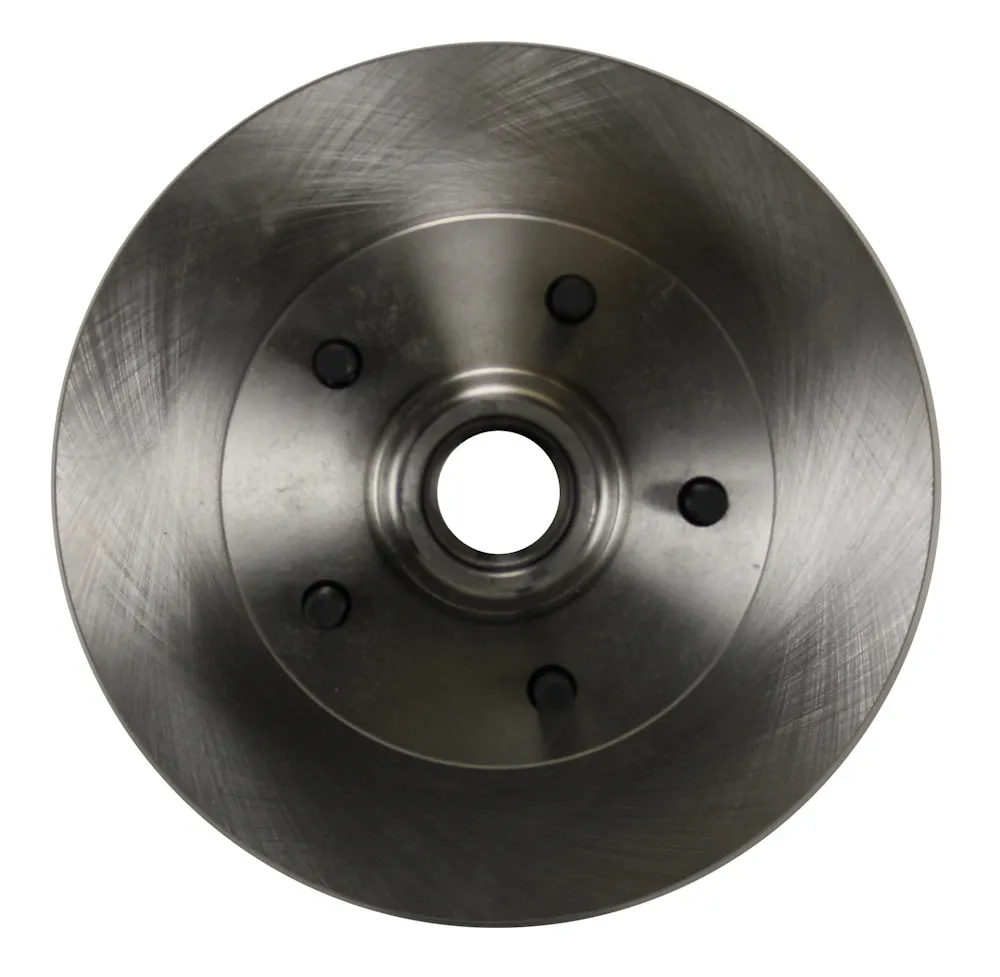

Description: Front rotor for GM single piston cars; Leed Brakes rotors can be used for specific OE replacement applications as well as replacement parts for our disc brake conversion kits. Precision machined and ready for installation. Front rotors also include bearing races and lug studs.
Description:
Description
New high quality, factory replacement GM rotor for early GM single piston cars. This aftermarket brake rotor is also a replacement for most aftermarket GM disc brake conversions. This aftermarket brake rotor replacement is ready to install on your vehicle with bearing races installed from the factory.
Features & benefits
- Machined to OE specifications for optimal performance
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1973-1974 | Buick Apollo |
| 1970-1972 | Buick GS |
| 1968-1969 | Buick GS 350 |
| 1968-1969 | Buick GS 400 |
| 1970-1972 | Buick GS 455 |
| 1967-1972 | Buick Skylark |
| 1967 | Buick Special |
| 1969 | Buick Special |
| 1969-1972 | Buick Sportwagon |
| 1967-1969 | Chevrolet Camaro |
| 1967-1972 | Chevrolet Chevelle |
| 1967-1968 | Chevrolet Chevy II |
| 1967-1972 | Chevrolet El Camino |
| 1970-1972 | Chevrolet Monte Carlo |
| 1969-1974 | Chevrolet Nova |
| 1971-1972 | GMC Sprint |
| 1967-1971 | Oldsmobile 442 |
| 1971-1972 | Oldsmobile Custom Cruiser |
| 1967-1972 | Oldsmobile Cutlass |
| 1967-1972 | Oldsmobile Cutlass Supreme |
| 1967-1972 | Oldsmobile F85 |
| 1973-1974 | Oldsmobile Omega |
| 1967-1972 | Oldsmobile Vista Cruiser |
| 1967-1969 | Pontiac Firebird |
| 1969-1972 | Pontiac Grand Prix |
| 1967-1972 | Pontiac GTO |
| 1967-1972 | Pontiac LeMans |
| 1967-1970 | Pontiac Tempest |
| 1971-1974 | Pontiac Ventura |
Specifications
- GTIN
- 00887753625939
- Weight
- 22 lb
- Height
- 11 in
- Length
- 12 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- ABS Sensor Ring Included
- No
- Balancing Type
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Construction
- Full Cast
- Disc Finish
- Plain
- Discard Thickness
- .965
- For Use with Stock Calipers
- Yes
- Grade Type
- Performance
- Hat Finish
- Plain
- Inner Bearing Cup
- 2.328
- Intended Use
- Street
- Material
- Cast Iron
- Nominal Thickness
- 1.035
- Outer Bearing Cup
- 1.781
- Outside Diameter
- 11.00
- Pad Contact Surface Width
- 2.100
- Position
- Front
- Rotor Bolt Pattern
- 5 x 4.75 in
- Rotor Diameter
- 11 in.
- Rotor Finish
- Natural
- Rotor Material
- Cast Iron
- Rotor Style
- Standard
- Rotor Thickness
- 1 in
- Rust Resistant Coating
- No
- Solid Or Vented Type Rotor
- Vented
- Status
- Existing
- Stud Thread Length
- .950
- Surface Type
- Smooth
- TLE
- LEED Brakes Front rotor for GM single piston cars
- Title
- LEED Brakes Front rotor for GM single piston cars
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973-1974 Buick Apollo; 1970-1972 Buick GS; 1968-1969 Buick GS 350; 1968-1969 Buick GS 400; 1970-1972 Buick GS 455; 1967-1972 Buick Skylark; 1967 Buick Special; 1969 Buick Special; 1969-1972 Buick Sportwagon; 1967-1969 Chevrolet Camaro; 1967-1972 Chevrolet Chevelle; 1967-1968 Chevrolet Chevy II; 1967-1972 Chevrolet El Camino; 1970-1972 Chevrolet Monte Carlo; 1969-1974 Chevrolet Nova; 1971-1972 GMC Sprint; 1967-1971 Oldsmobile 442; 1971-1972 Oldsmobile Custom Cruiser; 1967-1972 Oldsmobile Cutlass; 1967-1972 Oldsmobile Cutlass Supreme; 1967-1972 Oldsmobile F85; 1973-1974 Oldsmobile Omega; 1967-1972 Oldsmobile Vista Cruiser; 1967-1969 Pontiac Firebird; 1969-1972 Pontiac Grand Prix; 1967-1972 Pontiac GTO; 1967-1972 Pontiac LeMans; 1967-1970 Pontiac Tempest; 1971-1974 Pontiac Ventura
Equivalent Parts
LEED Brakes 5514
