LEED Brakes · 03473PA
Part #: 03473PA
UPC: 887753626042
Log in for inventory
Notify me when this item is in stock.

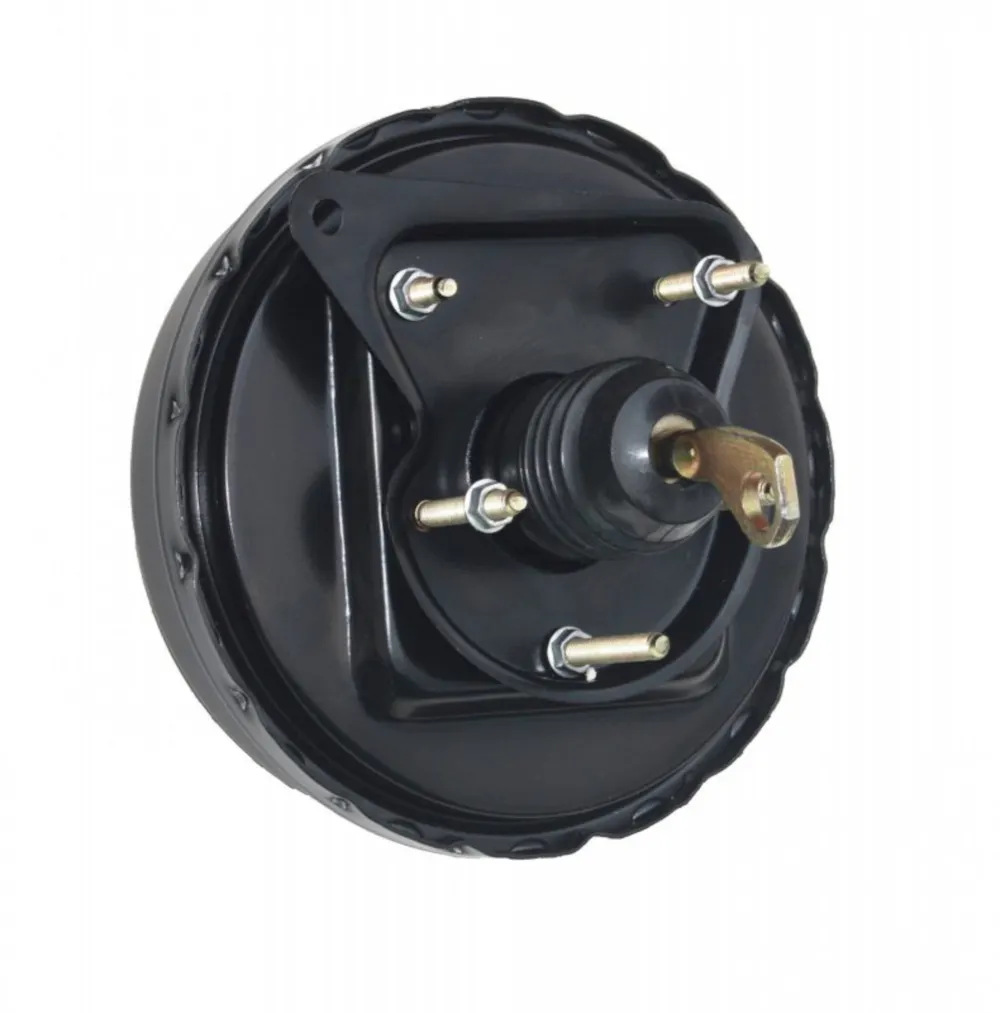

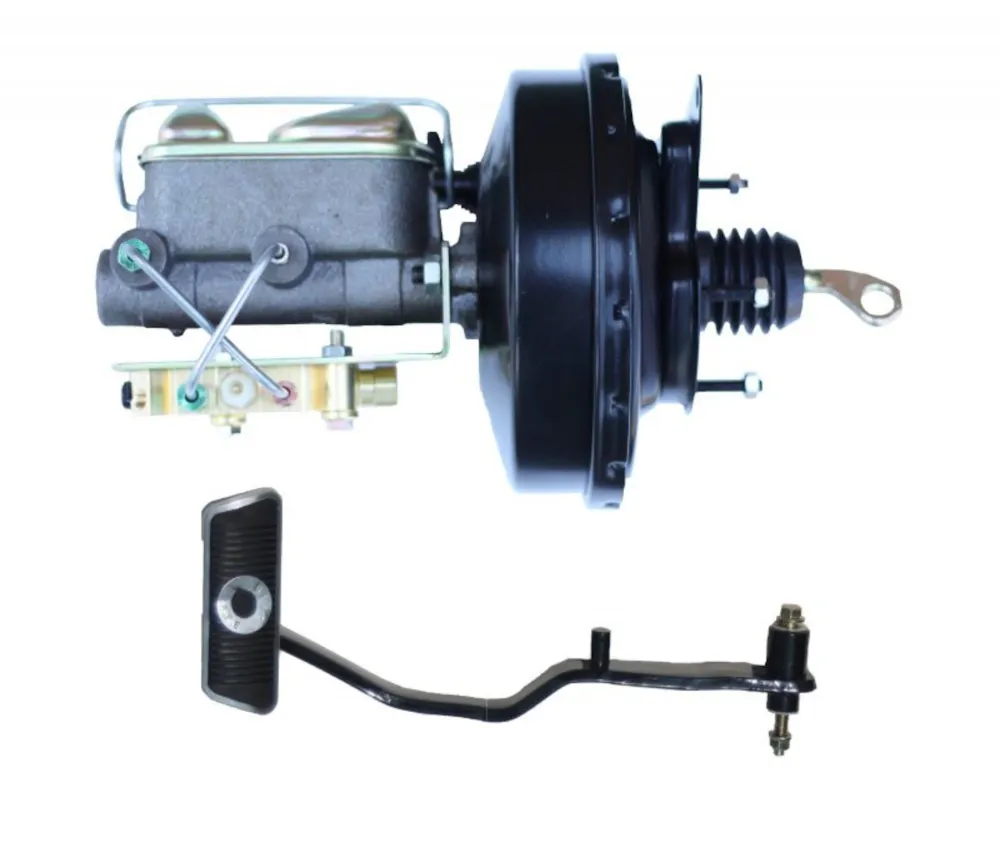

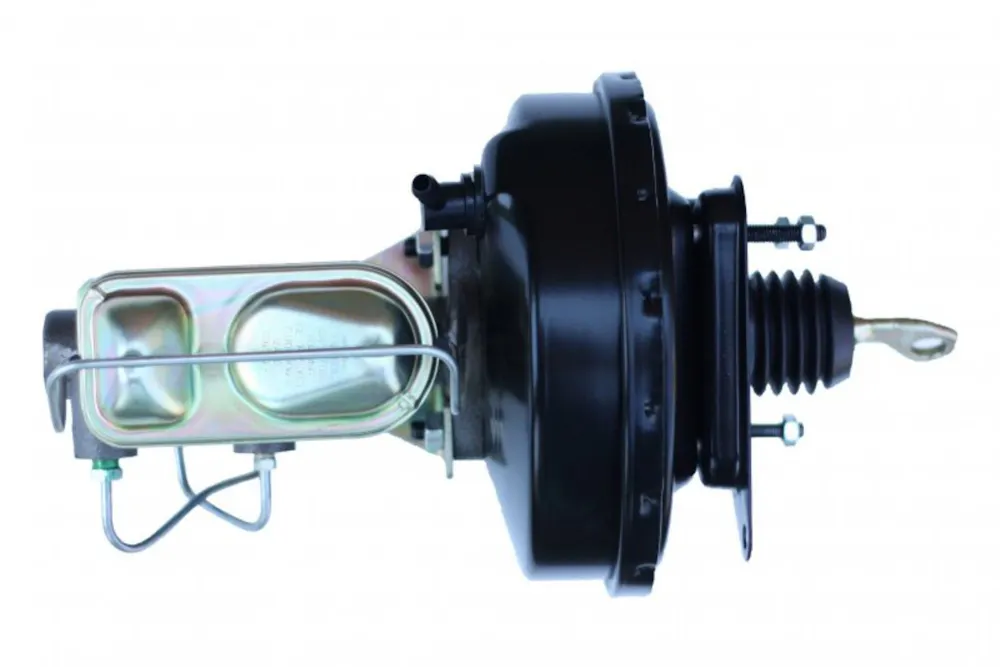

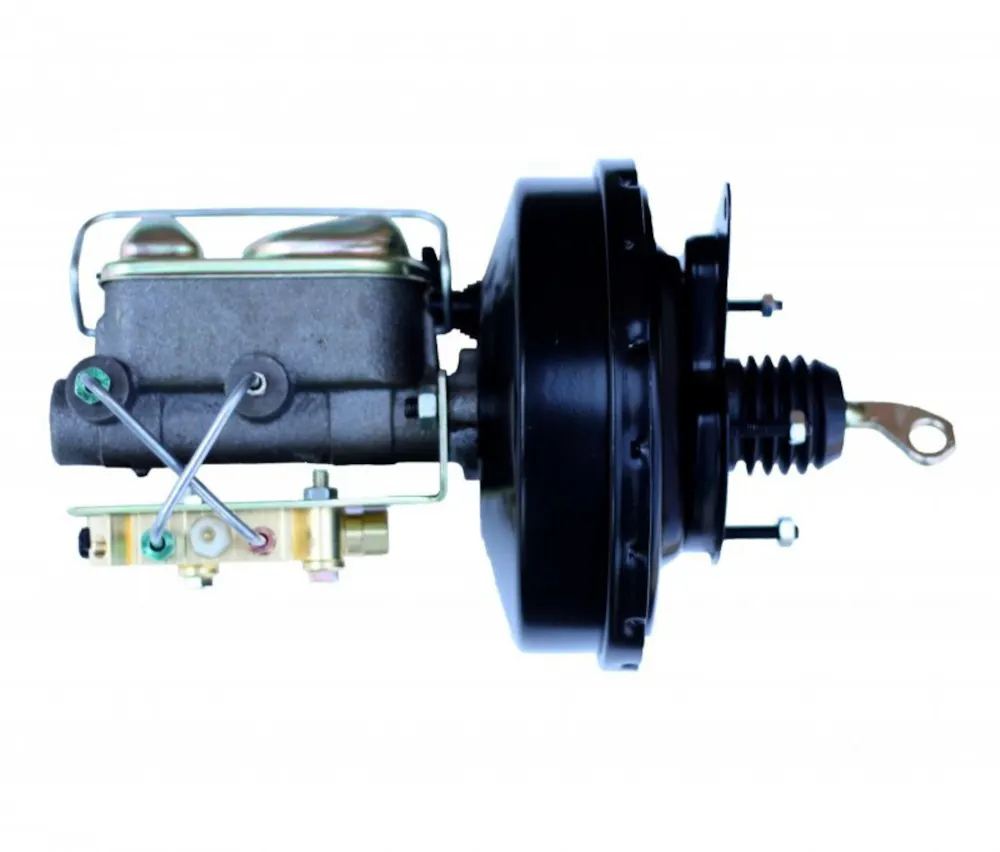

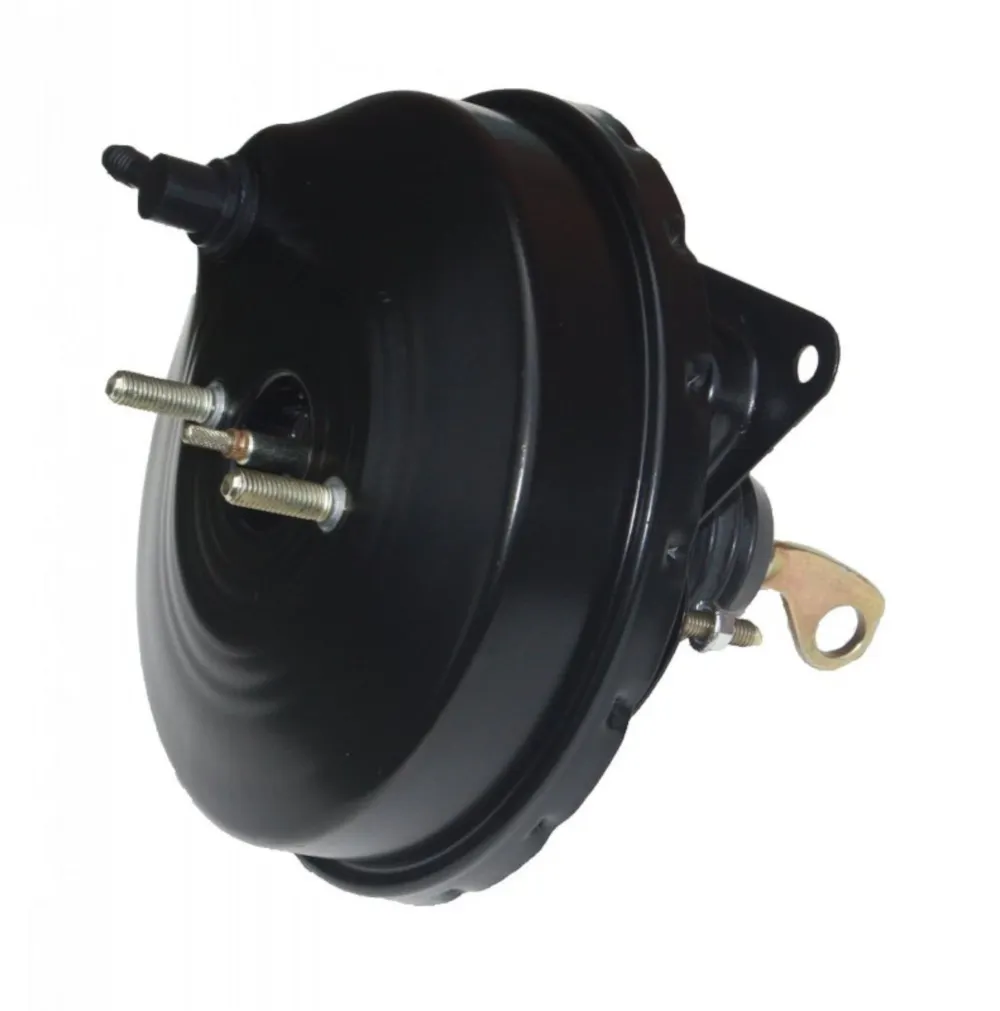

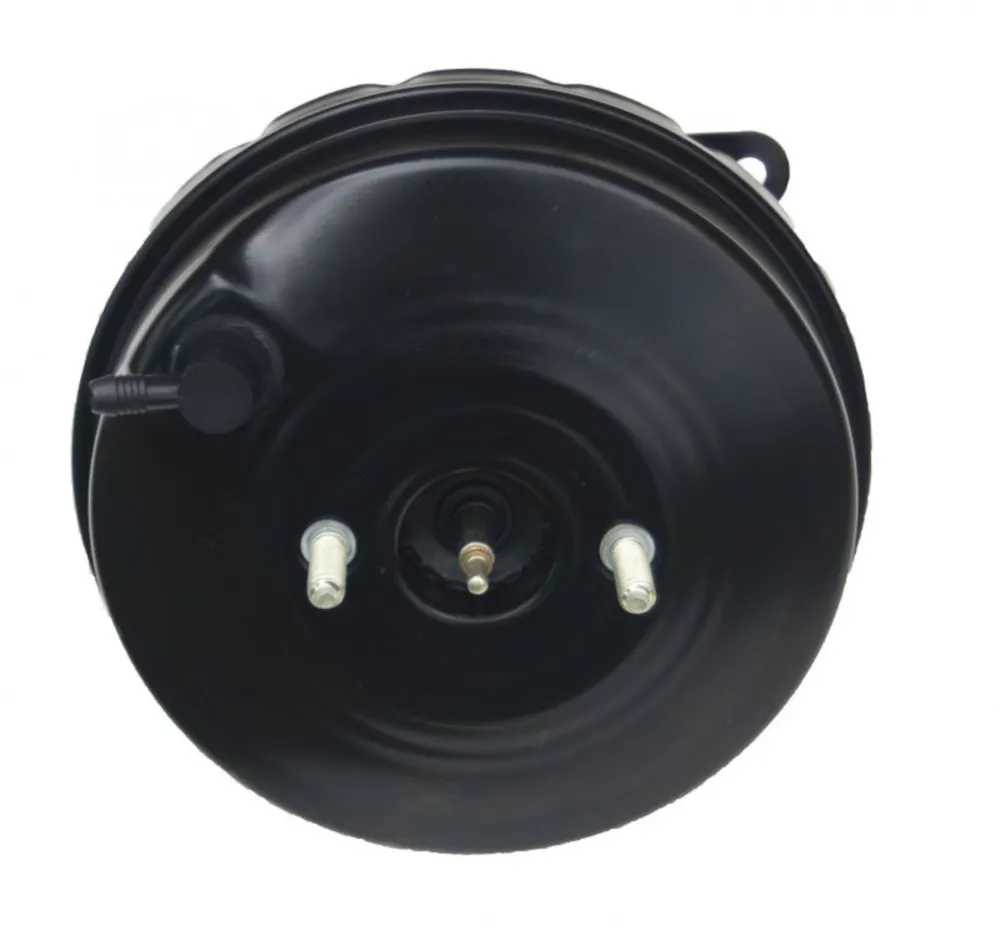

Description: 9 inch power booster, 1 inch bore master disc/disc with automatic brake pedal; Leed Brakes power booster assemblies are shipped fully assembled. This insures proper adjustment of the pushrod between the power booster and master cylinder and proper fitment all valves, lines and brackets for a trouble-free installation.
Description:
Description

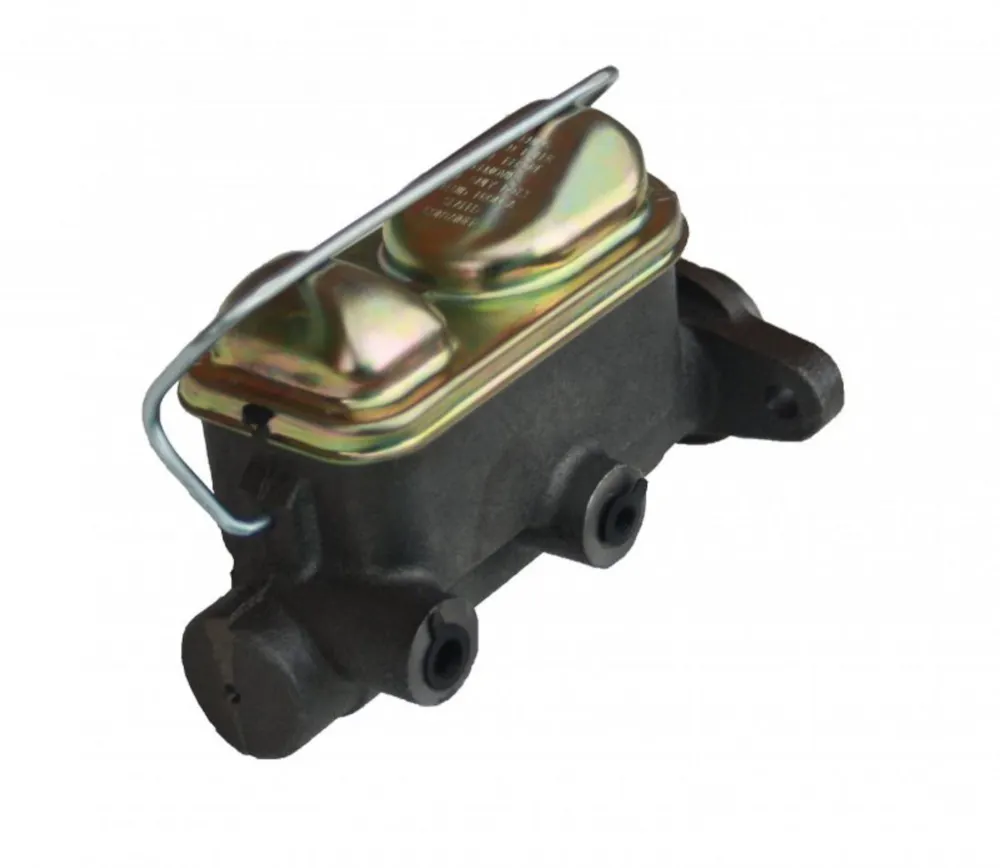

New 9" slimline direct fit power brake booster, master cylinder & 4 wheel disc proportioning valve combo. This top quality power brake booster is designed mount directly to your factory firewall. This power booster works great as a factory replacement or as an upgrade from manual to power brakes for vehicles with automatic transmissions. Also included in this kits is a new factory style 1" bore master cylinder and proportioning valve equipped to work with 4 Wheel Disc applications. Note: If switching from manual to power brakes a power brake pedal is required.
Features & benefits
- New unit not remanufactured
- Direct bolt in replacement for factory power brake booster
- Includes brackets and pushrod
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1967-1970 | Ford Mustang |
| 1967-1970 | Mercury Cougar |
Specifications
- GTIN
- 00887753626042
- Weight
- 22 lb
- Height
- 10.5 in
- Length
- 18.25 in
- Width
- 10.5 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- Bleeder Hoses Included
- Yes
- Booster Diaphragm Type
- Single
- Booster Housing Diameter
- 9
- Booster Type
- Vacuum
- Bracket Included
- Yes
- Brake Booster Diameter
- 9 in.
- Brake Booster Finish
- Black
- Brake Booster Included
- Yes
- Brake Booster Type
- Single Diaphragm
- Brake Lines Included
- From Master Cylinder to Valve
- Brake Pedal Included
- Yes
- Brake Pedal Pushrod Included
- Yes
- Brake Pedal Rod Extension Included
- Yes
- Brake Pedal Type
- Automatic Transmission
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Grade Type
- Performance
- Housing Material
- Steel
- Master Cylinder Bore Size
- 1.00
- Master Cylinder Cap Included
- Yes
- Master Cylinder Finish
- Natural
- Master Cylinder Included
- Yes
- Master Cylinder Material
- Cast Iron
- Master Cylinder Port Quantity
- 2
- Mounting Hardware Included
- Yes
- Status
- Existing
- TLE
- LEED Brakes 9 inch power booster, 1 inch bore master, disc/disc with automatic brake pedal
- Title
- LEED Brakes 9 inch power booster, 1 inch bore master, disc/disc with automatic brake pedal
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1967-1970 Ford Mustang; 1967-1970 Mercury Cougar
