KB Performance Motorcycle Pistons / KB935C.030
Part #: KB935C.030
UPC: 800745235145
Loading...
Notify me when this item is in stock.
Description: KB MC Forged Piston Kit - Harley SportsterEVO1200 1986-22 1ccFT 51cc11:1/69cc9:1
Description:
Description
KB MC Forged Piston Kit - Harley SportsterEVO1200 1986-22 1ccFT 51cc11:1/69cc9:1
Features & benefits
- -M42 Skirt Coating.
- -Supplied with dual valve reliefs for both 883 & 1200 heads.
Specifications
- GTIN
- 00800745235145
- Life cycle
- Available to Order
- AAM brand code
- KBM
- Warehouse brand code
- FHRL
- AAIA brand code
- FHRL
Attributes
- Alloy
- Forged 4032 Alloy
- Base Number
- KB935C
- Bore (in)
- 3.498
- Bore (mm)
- 88.8
- Bore Diameter
- 88.8
- Compression Ratio
- 8.9:1
- Crown (cc)
- +1cc
- Crown Type
- FLAT TOP
- Cylinder Bore Diameter
- 3.498
- Eng. Disp Liters
- 1200
- Eng. Disp. In.
- 74
- Eng. Disp. Liters
- 1200
- Engine Family
- Sportster EVO 1200 1988-Present
- Engine Manufacturer
- Harley Davidson
- Exhaust Valve Depth/diameter
- .109-1.700/.224-1.540
- Includes Ring Set
- 25010.030
- Intake Valve Depth/diameter
- .184-1.990/.219-1.800
- Lock
- RRN-81
- Make For Engine Family
- Harley Davidson
- Oe Deck Height
- 5.375
- Oversize
- .030
- Oversized
- Yes
- Oversizes
- STD .005 .010 .020 .030 .040
- Pin Configuration
- Offset
- Pin Diameter (in)
- .791
- Pin Diameter (mm)
- 20.1
- Pin Number
- 0791x216K
- Pin Type
- Floating
- Piston Head Type
- Flat
- Piston Material
- Forged 4032 Alloy
- Ring Pack
- 1/16, 1/16, 5/32
- Rod (in)
- 6.926
- Rod (mm)
- 175.9204
- Sold As
- Piston & Ring Kit
- Stroke (in)
- 3.812
- Stroke (mm)
- 96.8
- Top Land
- .210
- Year From
- 1986
- Year Range
- 1986-
Fitment status
This product is universal and will fit your application.
Resources

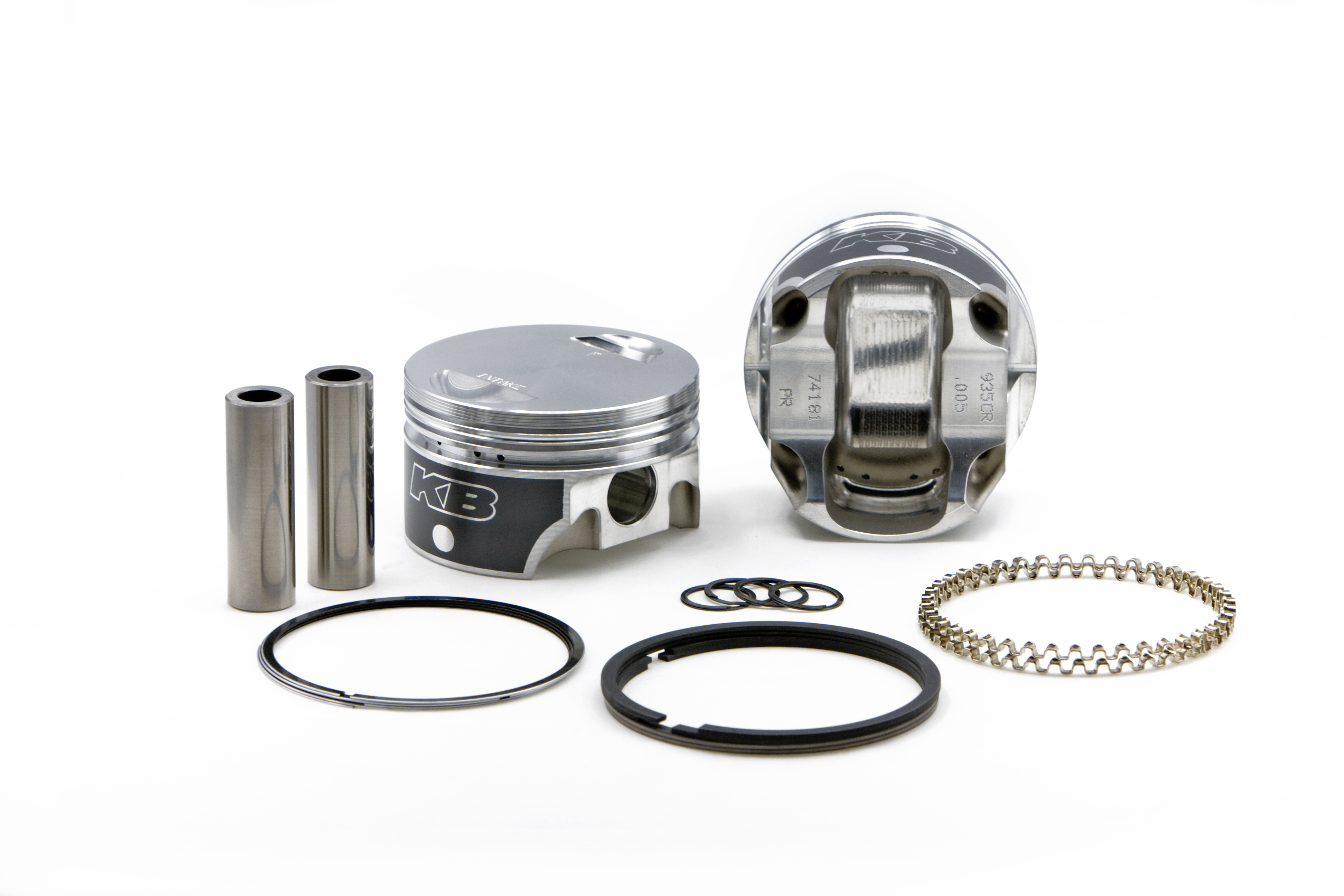

KB Performance Motorcycle Pistons KB935C.030
