KB Performance Motorcycle Pistons · KB715LCA.005

KB Performance Motorcycle Pistons KB715LCA.005

Part #: KB715LCA.005
UPC: 800745248008

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: KB Performance Motorcycle Pistons Series: KB Hyper V-Twin Piston Sets

Log in to order

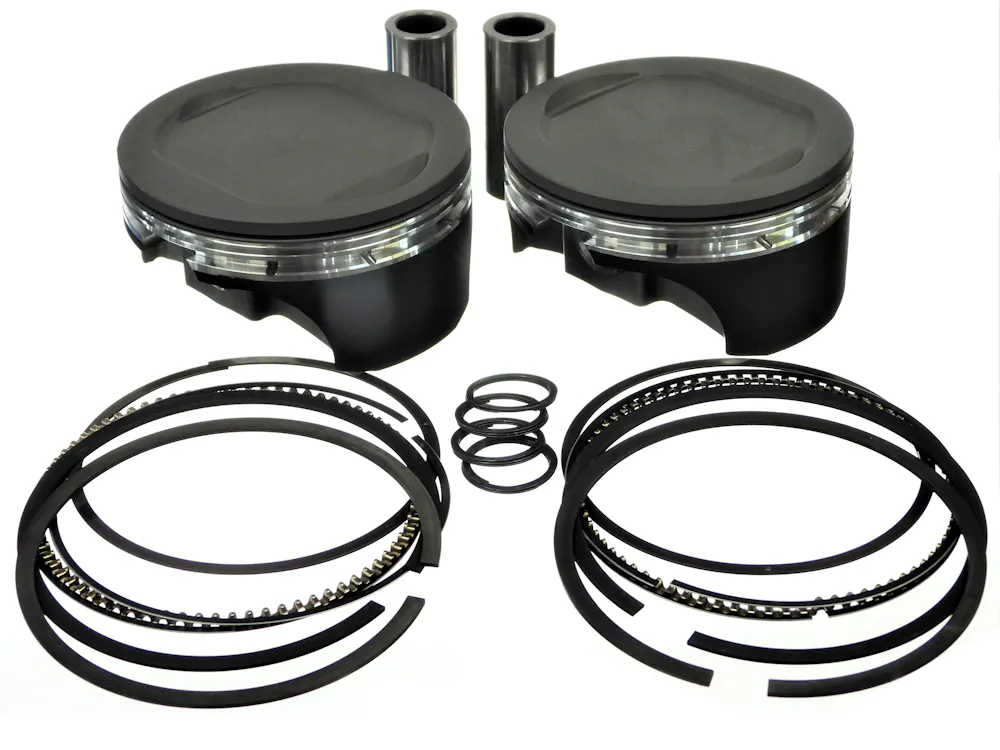

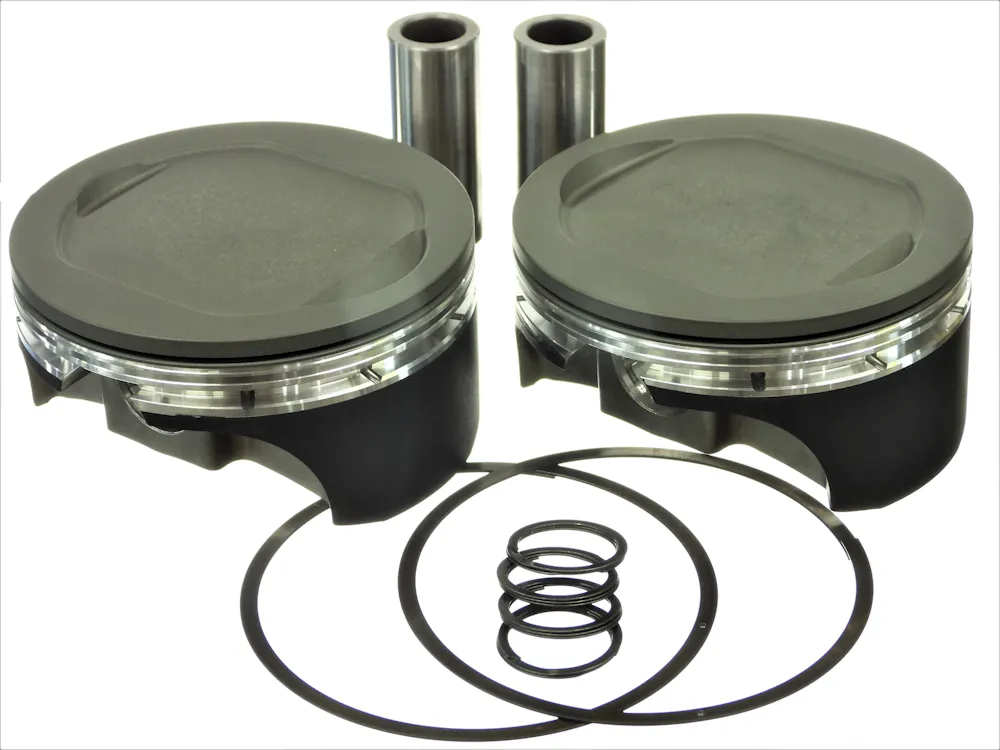

Description: KB MC SD Forged Piston Kit - Harley TwinCam 120 (not 120R) 2007-16-1.6cc FT 10:1

Description

KB MC SD Forged Piston Kit - Harley TwinCam 120 (not 120R) 2007-16-1.6cc FT 10:1

Features & benefits

- -Super Duty Forged Series
- -Big bore 120"
- -4.625" crank/7.660" rods
- -Anodized crown & top ring groove
- -Line2Line Skirt Coating
- -Does not fit 120R

Specifications

GTIN: 00800745248008
Life cycle: Available to Order
AAM brand code: KBM
Warehouse brand code: FHRL
AAIA brand code: FHRL

Attributes

Alloy: Forged 4032 Alloy
Base Number: KB715LCA
Bore (in): 4.06
Bore (mm): 103.1
Bore Diameter: 103.1
Compression Ratio: 85-10.5
Crown (cc): +9cc
Crown Type: DISH
Cylinder Bore Diameter: 4.06
Eng. Disp Liters: 1966
Eng. Disp. In.: 120
Eng. Disp. Liters: 1966
Engine Family: Twin Cam 120" 2007-2016
Engine Manufacturer: Harley Davidson
Exhaust Valve Depth/diameter: .180/1.846
Includes Ring Set: 25017.005
Intake Valve Depth/diameter: .221/2.230
Lock: PRJ100-3
Make For Engine Family: Harley Davidson
Oe Deck Height: 6
Oversize: .005
Oversized: Yes
Oversizes: STD .005 .010
Pin Configuration: Offset
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: .927x2.250x.150
Pin Type: Floating
Piston Head Type: Dish
Piston Material: Forged 4032 Alloy
Ring Pack: 1.5mm, 1.5mm, 3.0mm
Rod (in): 7.667
Rod (mm): 194.7418
Sold As: Piston & Ring Kit
Stroke (in): 4.625
Stroke (mm): 0.0
Top Land: .170
Year From: 2002
Year Range: 2002-2004
Year To: 2004

Fitment status

This product is universal and will fit your application.
