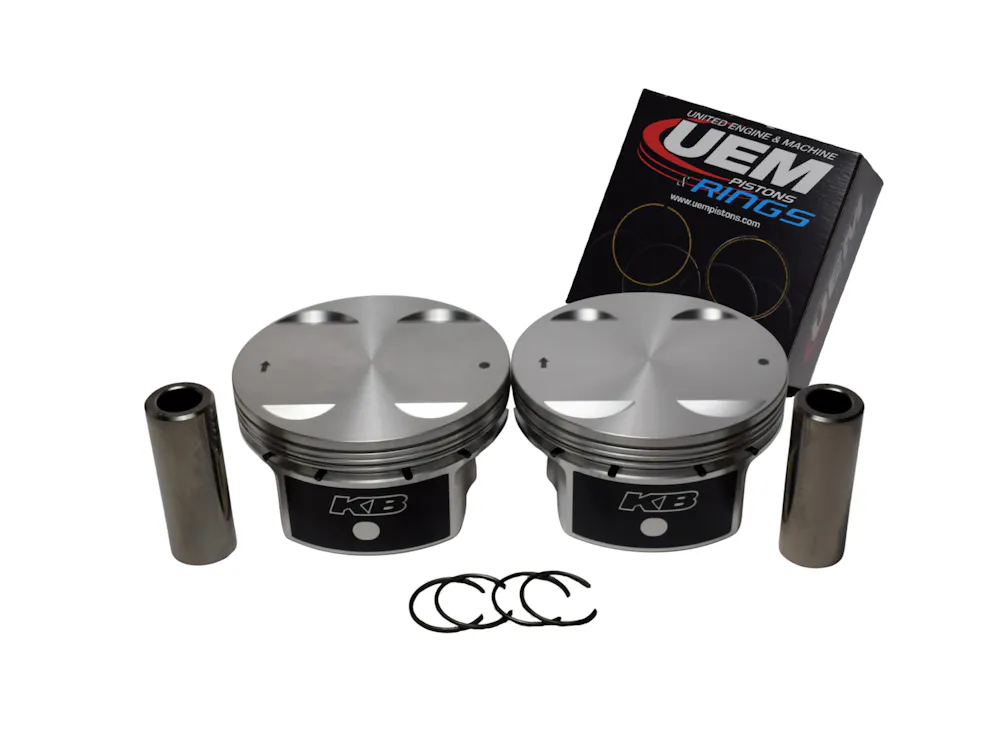

KB Performance Motorcycle Pistons KB599C.005

Part #: KB599C.005
UPC: 800745329882

Loading availability... Loading...

Notify me when this item is in stock.

Brand: KB Performance Motorcycle Pistons Series: KB Forged V-Twin Piston Kits

Description: KB MC Forged Piston Kit - Harley M8 114" 2017- Present 1.6cc Flat Top 10.3:1

Log in to order

Description

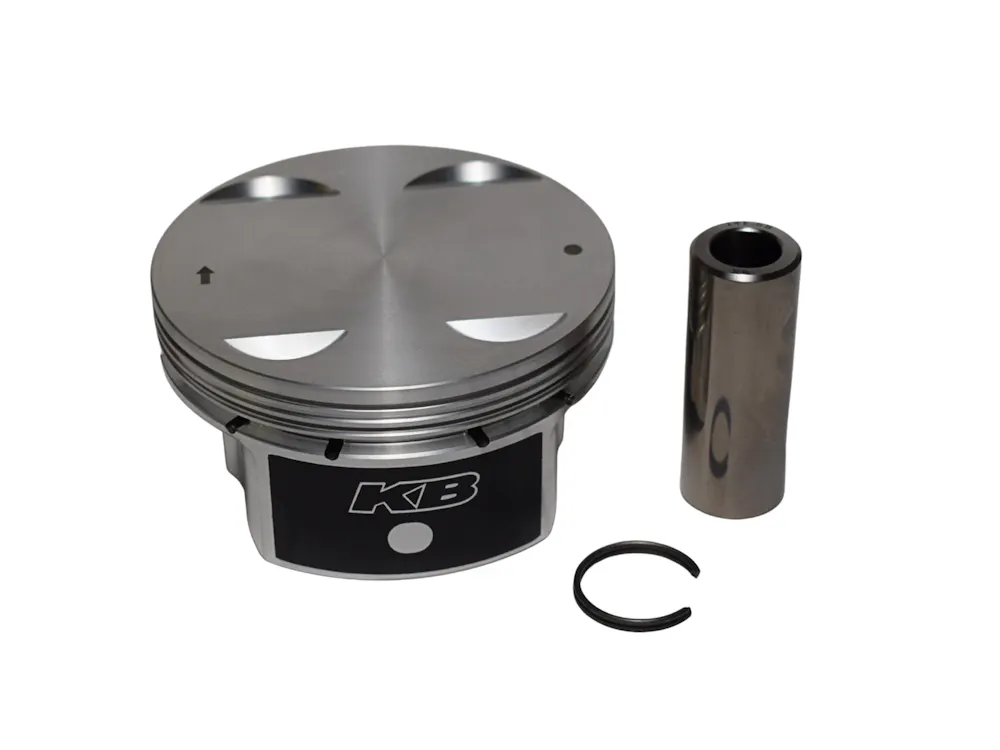

KB MC Forged Piston Kit - Harley M8 114" 2017- Present 1.6cc Flat Top 10.3:1

Features & benefits

Forged 4032 Replacement 114" M8, M42 Skirt Coating, Supplied with Rings & Round-wire Locks

Specifications

GTIN: 00800745329882
Life cycle: Available to Order
AAM brand code: KBM
Warehouse brand code: FHRL
AAIA brand code: FHRL

Attributes

Alloy: Forged 4032 Alloy
Base Number: KB599
Bore (in): 4.016
Bore (mm): 102
Compression Ratio: 10.3:1
Crown (cc): +1.2
Crown Type: Flat Top
Cylinder Bore Diameter: 4.016
Eng. Disp. In.: 114
Engine Family: Milwaukee 8
Engine Manufacturer: Harley Davidson
Exhaust Valve Depth/diameter: 0.120 / 1.400"
Grade Type: Performance
Includes Ring Pack: 25055.005
Intake Valve Depth/diameter: 0.130 / 1.714"
Lock: SRW-028
Make For Engine Family: Harley Davidson
Oil Ring Thickness: 3.0
Oversize: .005"
Oversized: Yes
Oversized Amount: .005
Oversizes: STD, .005, .010"
Pin Configuration: Offset .030"
Pin Diameter (in): 0.927
Pin Diameter (mm): 23.54
Pin Number: 0927x2.5001x70-c9310
Pin Type: Floating
Piston Material: Forged 4032 Alloy
Piston Pin Outside Diameter: 0.927
Piston Rings Included: Yes
Ring Pack: 1.2, 1.2, 3.0MM
Rod (in): 8.015
Rod (mm): 203.58
Second Compression Ring Thickness: 1.2
Sold As: Complete Piston & Ring Kit
Stroke (in): 4.5
Stroke (mm): 114.3
Top Compression Ring Thickness: 1.2
Top Land: 0.160"
Uses Ring Pack: 25055
Valve Reliefs: 4
Year From: 2017
Year Range: 2017-Current
Year To: Current
