KB Performance Motorcycle Pistons / KB595LCA.005
Part #: KB595LCA.005
UPC: 800745276162
Loading...
Notify me when this item is in stock.
Description: KB MC SD Forged Piston Kit - Harley M8 107/124" Big Bore -6.5cc Dome 11.8:1
Description:
Description
KB MC SD Forged Piston Kit - Harley M8 107/124" Big Bore -6.5cc Dome 11.8:1
Features & benefits
- -Forged 4032,L2L coating, Hard anodized crown & top land.
- -For aftermarket 4.250" bore cylinders.
- -Oil/water cooled engines.
- -Up to 3mm larger valves.
- -11.8:1.
Specifications
- GTIN
- 00800745276162
- Life cycle
- Available to Order
- AAM brand code
- KBM
- Warehouse brand code
- FHRL
- AAIA brand code
- FHRL
Attributes
- Alloy
- Forged 4032 Alloy
- Base Number
- KB595LCA
- Bore (in)
- 4.25
- Bore (mm)
- 107.95
- Bore Diameter
- 4.25
- Compression Ratio
- 11.8:1
- Crown (cc)
- -6.5
- Crown Type
- Dome
- Cylinder Bore Diameter
- 4.25
- Eng. Disp Liters
- 2032
- Eng. Disp. In.
- 124
- Eng. Disp. Liters
- 2032
- Engine Family
- Milwaukee 8 124" / Big Bore 107" 2017-Present
- Engine Manufacturer
- Harley Davidson
- Exhaust Valve Depth/diameter
- .250/1.502
- Includes Ring Set
- 25014.005
- Intake Valve Depth/diameter
- .250/1.816
- Lock
- BR8894-1
- Make For Engine Family
- Harley Davidson
- Oversize
- 0.005
- Oversized
- Yes
- Oversizes
- STD .005
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.927
- Pin Diameter (mm)
- 23.5
- Pin Number
- .927x2.250x.180c-SCR415H
- Pin Type
- Floating
- Piston Head Type
- Dome
- Piston Material
- Forged 4032 Alloy
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm
- Rod (in)
- 8.015
- Rod (mm)
- 203.58
- Sold As
- Piston & Ring Kit
- Stroke (in)
- 4.375
- Stroke (mm)
- 111.1
- Top Land
- 0.23
- Year From
- 2017
- Year Range
- 2017-2022
- Year To
- 2022
Fitment status
Select a vehicle or engine to see whether this part applies to your application.

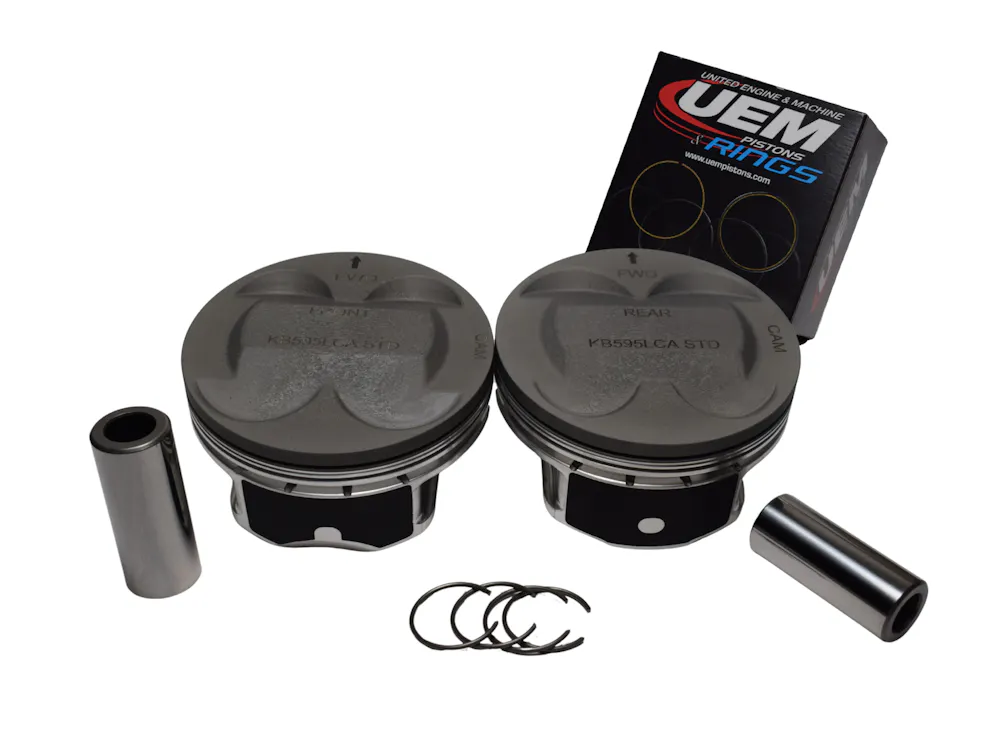

KB Performance Motorcycle Pistons KB595LCA.005
