KB Performance Motorcycle Pistons · KB410.STD

KB Performance Motorcycle Pistons KB410.STD

Part #: KB410.STD
UPC: 800745152121

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: KB Performance Motorcycle Pistons Series: KB Hyper V-Twin Piston Sets

Log in to order

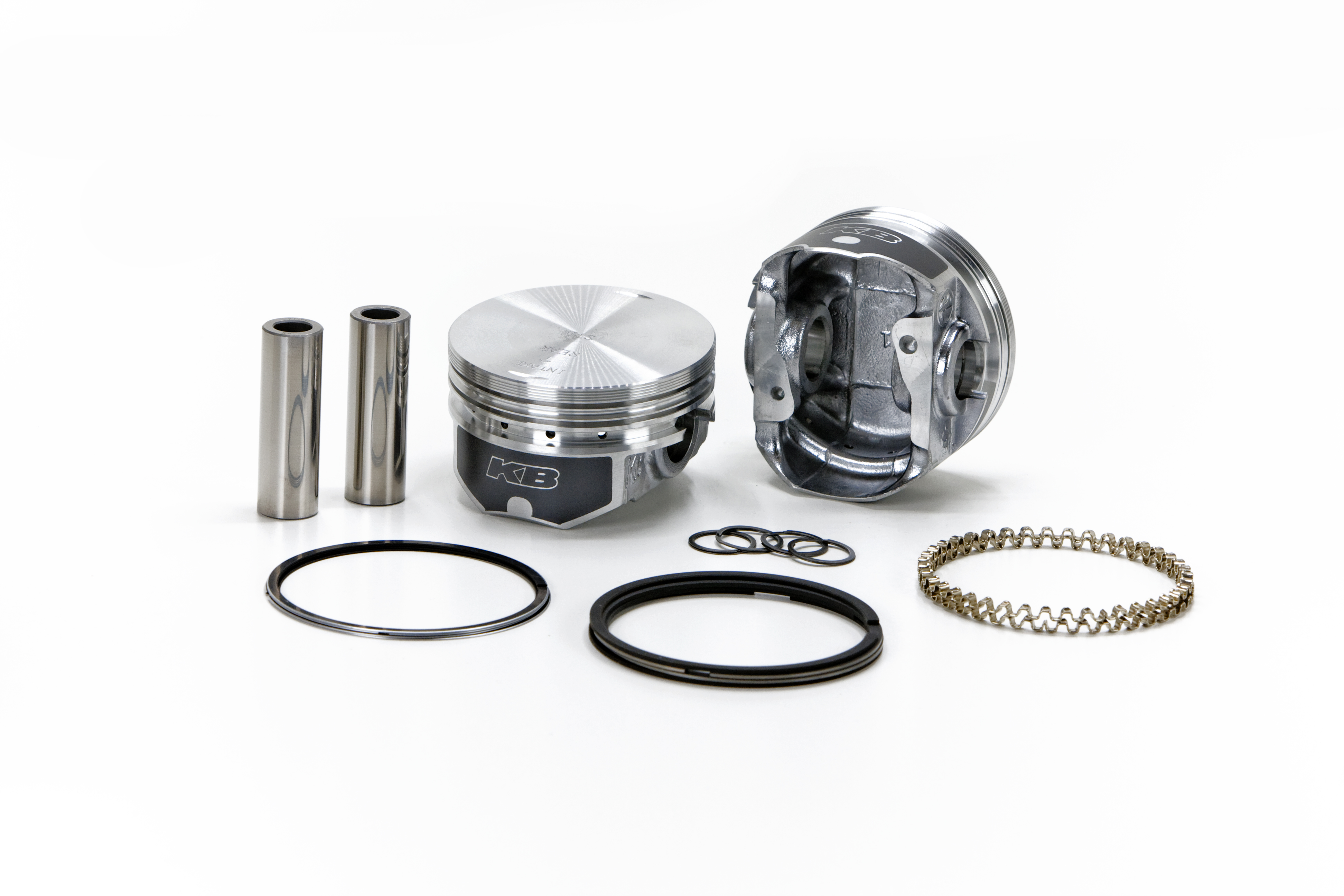

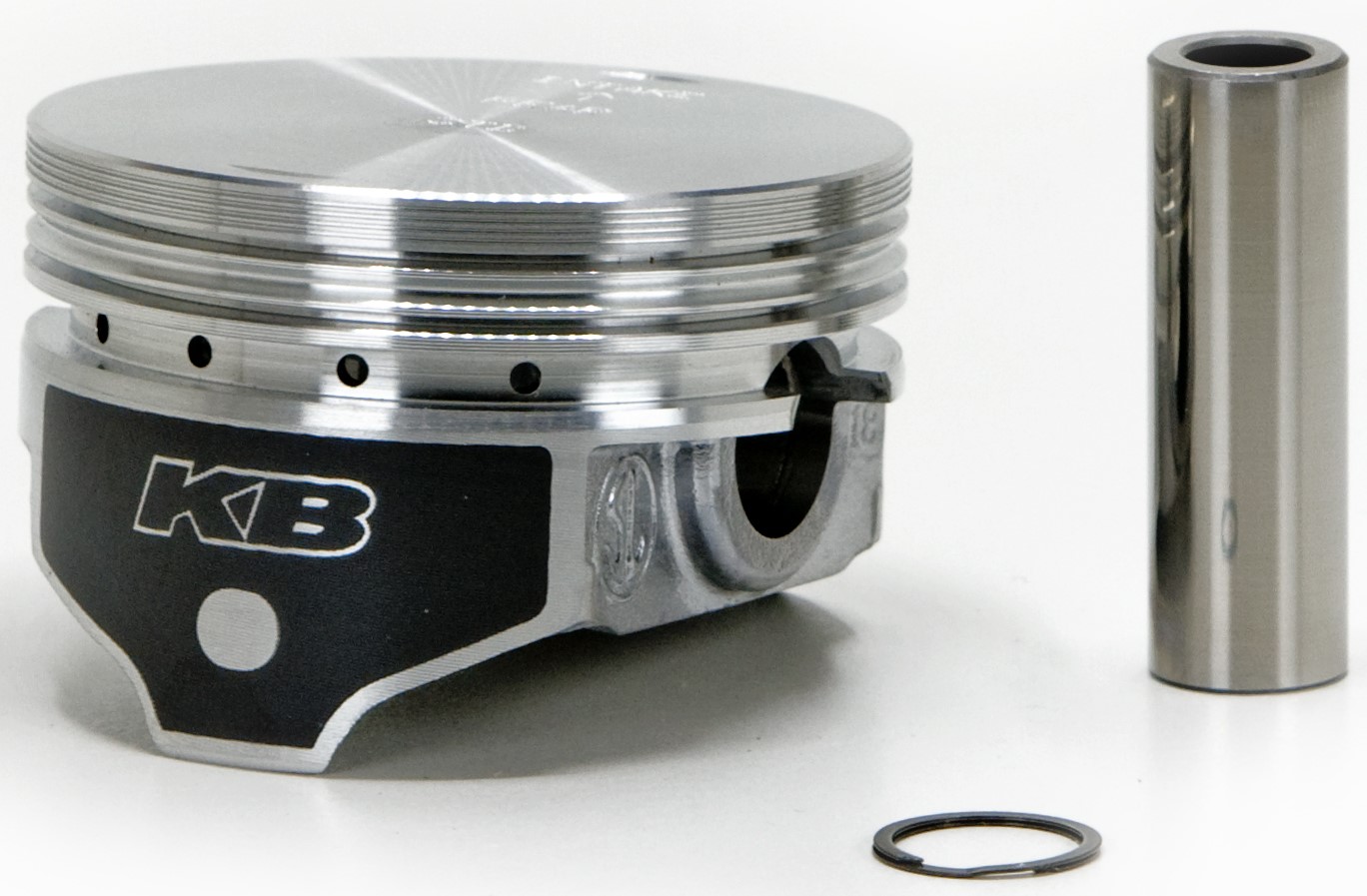

Description: KB MC Hyper Piston Kit - Harley SportsterEVO 883/1200 1986-22 +.05cc Flat Top9:1

Description

KB MC Hyper Piston Kit - Harley SportsterEVO 883/1200 1986-22 +.05cc Flat Top9:1

Features & benefits

- -Hypereutectic.
- -W/ lockring, pin, & ring set.
- -.125" deck clrnc.
- -1.090" comp. hgt.
- -Oil ring sup:R-102/STD-.020 & R-103/.030 & R-104/.040.

Specifications

GTIN: 00800745152121
Life cycle: Available to Order
AAM brand code: KBM
Warehouse brand code: FHRL
AAIA brand code: FHRL

Attributes

Alloy: Cast 390 Hypereutectic Alloy
Base Number: KB410
Bore (in): 3.498
Bore (mm): 88.8
Bore Diameter: 88.8
Compression Ratio: 9.1: w/51cc
Crown (cc): +.05cc
Crown Type: FLAT TOP
Cylinder Bore Diameter: 3.498
Eng. Disp Liters: 1200
Eng. Disp. In.: 74
Eng. Disp. Liters: 1200
Engine Family: Sportster EVO 883 to 1200 Conversion 1986-Present
Engine Manufacturer: Harley Davidson
Exhaust Valve Depth/diameter: .019/2.030
Includes Ring Set: 25009.STD
Intake Valve Depth/diameter: .019/2.030
Lock: RRN-81
Make For Engine Family: Harley Davidson
Oe Deck Height: 5.375
Oversize: STD
Oversized: No
Oversizes: STD .005 .010 .020 .030 .040
Pin Configuration: Centered
Pin Diameter (in): .792
Pin Diameter (mm): 20.1
Pin Number: 0792x216K
Pin Type: Floating
Piston Head Type: Flat
Piston Material: Cast 390 Hypereutectic Alloy
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.926
Rod (mm): 175.9204
Sold As: Piston & Ring Kit
Stroke (in): 3.812
Stroke (mm): 96.8
Top Land: .230
Year From: 1986
Year Range: 1986-2018
Year To: 2018

Fitment status

This product is universal and will fit your application.
