KB Hypereutectic Pistons · SKB378.040
Part #: SKB378.040
UPC: 800745079282
Log in for inventory
Notify me when this item is in stock.
Description: KB Hyper Single Piston - Ford 428FE Rod 6.490 Step Dish +28cc 2V; 4.130+.040", Step Dish 28cc w/2 V,Top Ring:5/64", 2nd Ring: 5/64", Oil Ring: 3/16", Comp Ratios:10.1/60cc,9.3/68cc,9.1/73cc,8.1/88cc,Gram weight 560/143, INT-Valve Depth/DIA .186-2.150", EX-Relief Depth/Dia .186-2.150"
Description:
Description
KB Series Hypereutectic 390 Alloy with 16% Silicon is a High Performance Piston for Marine, Drag, Circle Track and Towng. Fully machined head and valve reliefs. Mini Grooves to reduce scuffing if overheated. Accumulator Grove aids with compression ring seal. Triple Spiral Lock Rings. Machined in Oil Returns. CNC machined pin bores produce straight and accurately sized bores. Diamond finished skirts.
Features & benefits
- Bore: 4.130+.040"
- Stroke: 3.980
- Comp HT: 1.673
- O.E Deck HT: 10.170
- Lock Ring:PRH107-3
- Step Dish 28cc w/2 Valve Reliefs
- Centered Pin
- Pin Size:0.9752/ Pin#0975X300K
- Ring Set: 4130AM8
Application summary
| Year | Make / model |
|---|---|
| 1968 | Ford Country Sedan |
| 1968 | Ford Country Squire |
| 1968 | Ford Custom |
| 1968 | Ford Custom 500 |
| 1968-1969 | Ford Fairlane |
| 1968 | Ford Galaxie 500 |
| 1968-1969 | Ford GT40 |
| 1968 | Ford LTD |
| 1968 | Ford Mustang |
| 1968 | Ford Ranch Wagon |
| 1968 | Ford Torino |
| 1968-1969 | Mercury Comet |
| 1968 | Mercury Cougar |
| 1968-1969 | Mercury Cyclone |
| 1968-1969 | Mercury Montego |
Specifications
- GTIN
- 00800745079282
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- 390
- Base Number
- KB378
- Bore (in)
- 4.13
- Bore (mm)
- 104.9
- Compression Ratio
- 60-10.1, 68-9.3, 73-9.1, 88-8.1
- Crown (cc)
- +28cc
- Crown Type
- STEP DISH 2V
- Eng. Disp Liters
- 7.0
- Eng. Disp. In.
- 428FE
- Engine Family
- Ford BB V8 FE
- Engine Manufacturer
- Ford
- Exhaust Valve Depth/diameter
- .186/2.150
- Intake Valve Depth/diameter
- .186/2.150
- Lock
- PRH107-3
- Make For Engine Family
- Ford
- Oe Deck Height
- 10.17
- Oversize
- .040
- Oversizes
- .020 .040
- Pin Configuration
- Centered
- Pin Diameter (in)
- .975
- Pin Diameter (mm)
- 24.8
- Pin Number
- 0975x300K
- Pin Type
- Floating
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 6.49
- Rod (mm)
- 164.846
- Sold As
- SINGLE
- Stroke (in)
- 3.98
- Stroke (mm)
- 101.1
- Top Land
- .308
- Year Range
- -
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1968 Ford Country Sedan; 1968 Ford Country Squire; 1968 Ford Custom; 1968 Ford Custom 500; 1968-1969 Ford Fairlane; 1968 Ford Galaxie 500; 1968-1969 Ford GT40; 1968 Ford LTD; 1968 Ford Mustang; 1968 Ford Ranch Wagon; 1968 Ford Torino; 1968-1969 Mercury Comet; 1968 Mercury Cougar; 1968-1969 Mercury Cyclone; 1968-1969 Mercury Montego
Resources

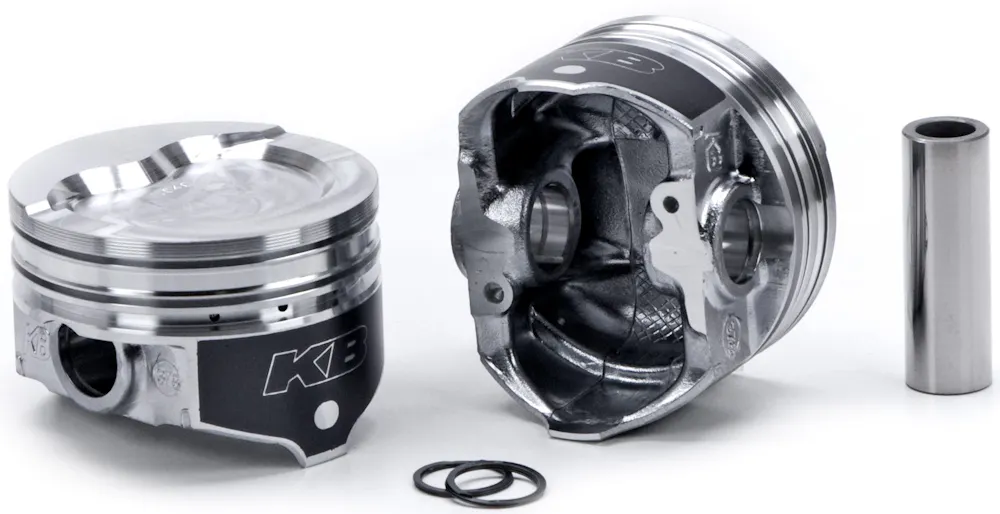

KB Hypereutectic Pistons SKB378.040
