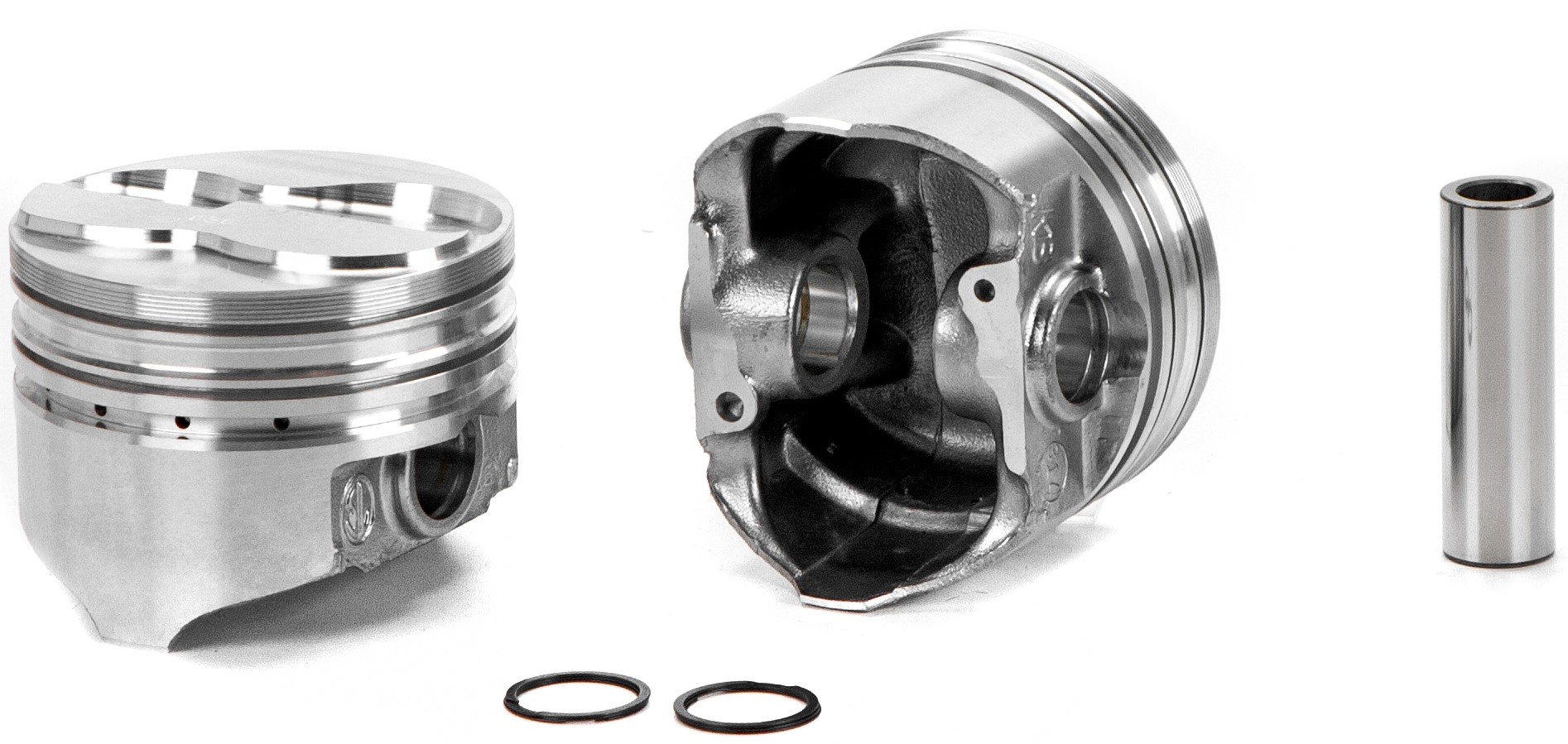

KB Hypereutectic Pistons · SKB314.020
Part #: SKB314.020
UPC: 800745065865
Log in for inventory
Notify me when this item is in stock.
Description: KB Hyper Single Piston - Ford 351W Rod 5.778 Solid Dome -5cc 2V; 4.000+.020", SD -3cc w/2 Valve Reliefs,Top Ring:5/64", 2nd Ring: 5/64", Oil Ring: 3/16", Comp Ratios:12.4/61cc,Gram weight 659/143, INT-Valve Depth/DIA .216-2.210", EX-Relief Depth/Dia .194-1.700
Description:
Description
KB Series Hypereutectic 390 Alloy with 16% Silicon is a High Performance Piston for Marine, Drag, Circle Track and Towng. Fully machined head and valve reliefs. Mini Grooves to reduce scuffing if overheated. Accumulator Grove aids with compression ring seal. Triple Spiral Lock Rings. Machined in Oil Returns. CNC machined pin bores produce straight and accurately sized bores. Diamond finished skirts.
Features & benefits
- Bore: 4.000+.020"
- Ring Set: 4000AD8 or 4000AM8
- Stroke: 3.500
- Comp HT: 1.774
- O.E Deck HT: 9.500
- Lock Ring:PRL99-3
- Solid Dome -5cc w/2 Valve Reliefs
- Centered Pin
- Pre-71 blocks .020" shorter. Not enough stock to clean up.Designed for Trick Flow Twisted Wedge Head, including "P" head
- Pin Size:0.9122/ Pin# 0912X300K
Specifications
- GTIN
- 00800745065865
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- 390
- Base Number
- KB314
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- 61-12.4
- Crown (cc)
- -5cc
- Crown Type
- SOLID DOME 2V
- Eng. Disp Liters
- 5.8
- Eng. Disp. In.
- 351
- Engine Family
- Ford SB V8 Windsor
- Engine Manufacturer
- Ford
- Exhaust Valve Depth/diameter
- .194/1.700
- Intake Valve Depth/diameter
- .216/2.120
- Lock
- PRL99-3
- Make For Engine Family
- Ford
- Oe Deck Height
- 9.5
- Oversize
- .020
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .912
- Pin Diameter (mm)
- 23.16
- Pin Number
- 0912x300K
- Pin Type
- Floating
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 5.956
- Rod (mm)
- 151.2824
- Sold As
- SINGLE
- Stroke (in)
- 3.5
- Stroke (mm)
- 88.9
- Top Land
- .275
- Year Range
- -
Fitment status
This product is universal and will fit your application.
