KB Hypereutectic Pistons · SKB186.030
Part #: SKB186.030
UPC: 800745052704
Log in for inventory
Notify me when this item is in stock.
Description: KB Hyper Single Piston - Chevy 334 Rod 5.700 D-Cup +10cc 2V; 3.736 +.030",D-Cup 10cc w/2V,Top Ring:5/64", 2nd Ring: 5/64", Oil Ring: 3/16", Comp Ratios: 10.5w/58cc,10.1/62cc,9.4w/64cc,8.3w/76cc,Gram weight 447/145, INT-Valve Depth/DIA .280-2.168", EX-Relief Depth/Dia .280-2.168"
Description:
Description
KB Series Hypereutectic 390 Alloy with 16% Silicon is a High Performance Piston for Marine, Drag, Circle Track and Towng. Fully machined head and valve reliefs. Mini Grooves to reduce scuffing if overheated. Accumulator Grove aids with compression ring seal. Triple Spiral Lock Rings. Machined in Oil Returns. CNC machined pin bores produce straight and accurately sized bores. Diamond finished skirts.
Features & benefits
- Bore: 3.736 +.030"
- Stroke: 3.750
- Comp HT: 1.433
- O.E Deck HT: 9.025
- Lock Ring:PRJ100-3
- D-Cup 12cc w/2 Valve Reliefs
- Centered Pin. Includes spacer ring. Made with Chevrolet 305 SB
- Pin Size: 0.9272/ Pin# 0927X300K
- Ring Set: 3736AM8
Specifications
- GTIN
- 00800745052704
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- 390
- Base Number
- KB186
- Bore (in)
- 3.736
- Bore (mm)
- 94.9
- Compression Ratio
- 55-10.5, 58-10.1, 64-9.4, 76-8.3
- Crown (cc)
- +10cc
- Crown Type
- D-CUP 2V
- Eng. Disp Liters
- 5.5
- Eng. Disp. In.
- 334
- Engine Family
- Chevrolet SB V8 Gen I
- Engine Manufacturer
- Chevrolet
- Exhaust Valve Depth/diameter
- .280/2.168
- Intake Valve Depth/diameter
- .280/2.168
- Lock
- PRJ100-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.025
- Oversize
- .030
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .927
- Pin Diameter (mm)
- 23.5
- Pin Number
- 0927X300K
- Pin Type
- Floating
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 5.7
- Rod (mm)
- 144.78
- Sold As
- SINGLE
- Stroke (in)
- 3.75
- Stroke (mm)
- 95.3
- Top Land
- .207
- Year Range
- -
Fitment status
This product is universal and will fit your application.
Resources

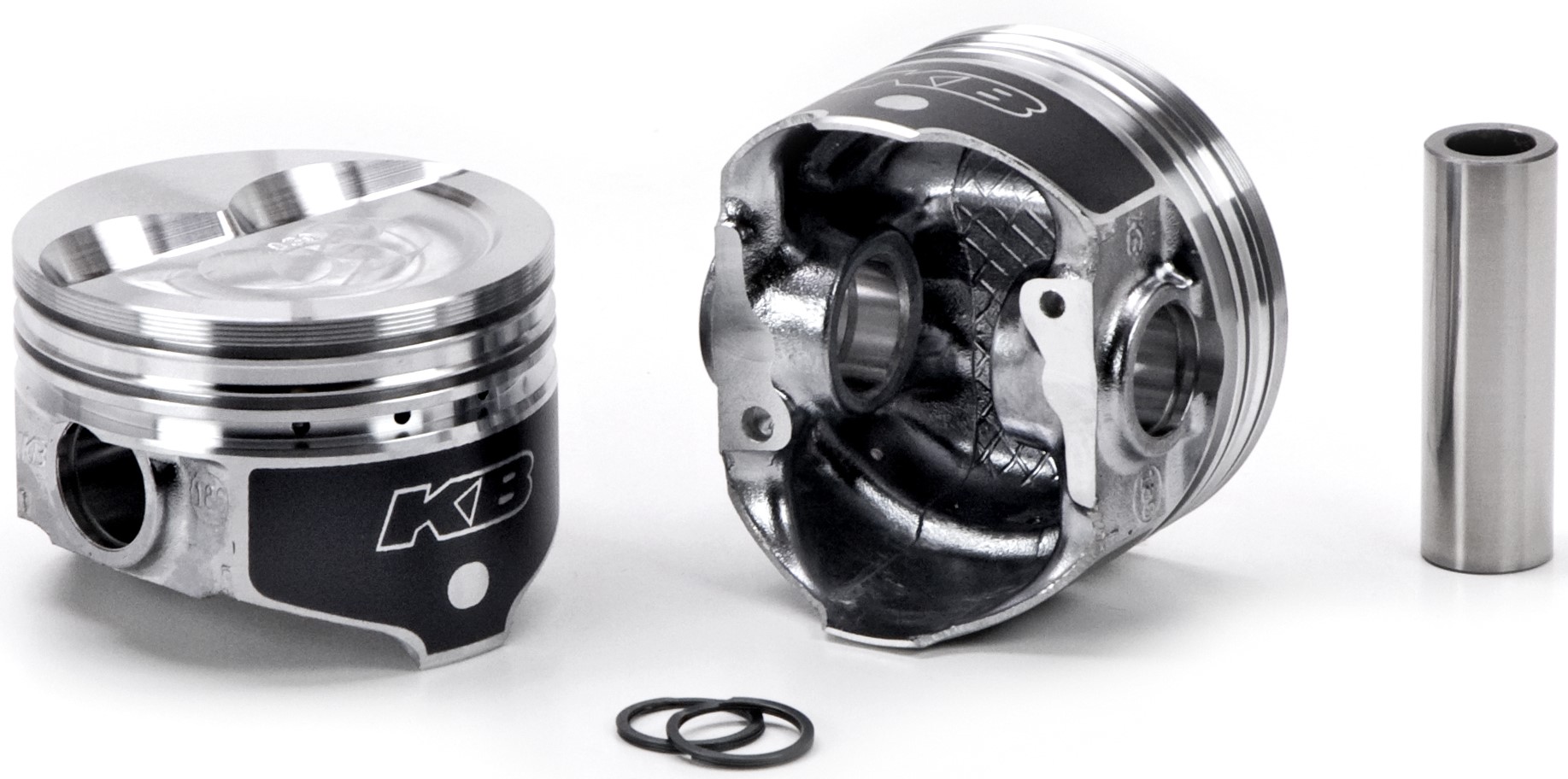

KB Hypereutectic Pistons SKB186.030
