KB Hypereutectic Pistons · SKB165L.STD
Part #: SKB165L.STD
UPC: 800745049742
Log in for inventory
Notify me when this item is in stock.
Description: KB Hyper Left Single Piston - Chevy 283 Rod 5.700 Flat Top +6cc 2V; 3.875" STD, FT 6cc w/2V,Top Ring:5/64", 2nd Ring: 5/64", Oil Ring: 3/16", Comp Ratios: 9.6w/55cc,9.2/58cc,8.8w/62cc,8.6w/64cc,Gram weight 503/145, INT-Valve Depth/DIA .280-2.168", EX-Relief Depth/Dia .280-2.168"
Description:
Description
KB Series Hypereutectic 390 Alloy with 16% Silicon is a High Performance Piston for Marine, Drag, Circle Track and Towng. Fully machined head and valve reliefs. Mini Grooves to reduce scuffing if overheated. Accumulator Grove aids with compression ring seal. Triple Spiral Lock Rings. Machined in Oil Returns. CNC machined pin bores produce straight and accurately sized bores. Diamond finished skirts.
Features & benefits
- Bore: 3.875" STD
- Stroke: 3.000
- Comp HT: 1.805
- O.E Deck HT: 9.025
- Lock Ring:PRJ100-3
- Flat Top 6cc w/2 Valve Reliefs
- Centered Pin
- Pin Size: 0.9272/ Pin# 0927X300K
- Ring Set: 3875AM8
Specifications
- GTIN
- 00800745049742
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- 390
- Base Number
- KB165
- Bore (in)
- 3.875
- Bore (mm)
- 98.4
- Compression Ratio
- 55-9.6, 58-9.2, 62-8.8, 64-8.6
- Crown (cc)
- +6cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 4.6
- Eng. Disp. In.
- 283
- Engine Family
- Chevrolet SB V8 Gen I
- Engine Manufacturer
- Chevrolet
- Exhaust Valve Depth/diameter
- .280/2.168
- Intake Valve Depth/diameter
- .280/2.168
- Lock
- PRJ100-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.025
- Oversize
- STD
- Oversizes
- .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .927
- Pin Diameter (mm)
- 23.5
- Pin Number
- 0927X300K
- Pin Type
- Floating
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 5.7
- Rod (mm)
- 144.78
- Sold As
- SINGLE
- Stroke (in)
- 3
- Stroke (mm)
- 76.2
- Top Land
- .275
- Year From
- 1957
- Year Range
- 1957-1967
- Year To
- 1967
Fitment status
This product is universal and will fit your application.
Resources

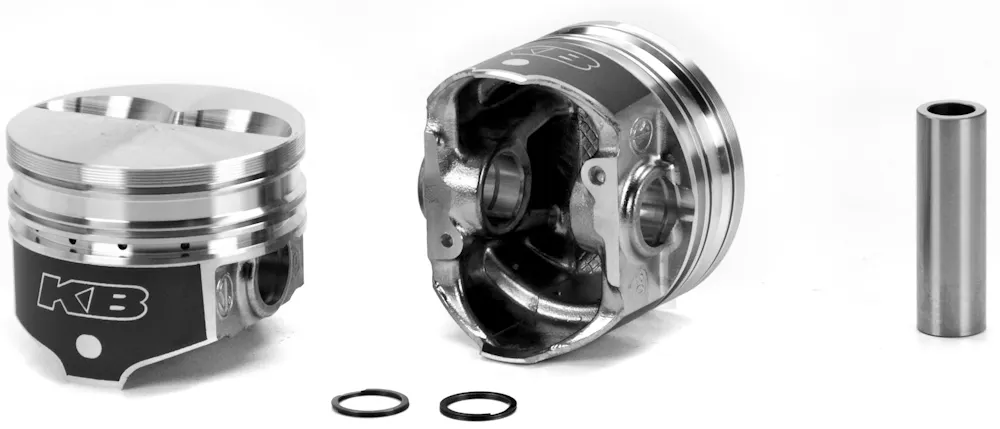

KB Hypereutectic Pistons SKB165L.STD
