KB Hypereutectic Pistons · SKB133L.060
Part #: SKB133L.060
UPC: 800745045713
Log in for inventory
Notify me when this item is in stock.
Description: KB Hyper Left Single Piston - Pontiac 400 Rod 6.630 Flat Top +6cc 2V; 4.120 +.060", Flat Top +6cc w/2V,Top Ring:5/64", 2nd Ring: 5/64", Oil Ring: 3/16", Comp Ratios: 10.7w/71cc,9.2/87cc,8.5w/96cc,7.6w/111cc,Gram weight 541/16"3, INT-Valve Depth/DIA .0240-2.140", EX-Relief Depth/Dia .240-2.140"
Description:
Description
KB Series Hypereutectic 390 Alloy with 16% Silicon is a High Performance Piston for Marine, Drag, Circle Track and Towng. Fully machined head and valve reliefs. Mini Grooves to reduce scuffing if overheated. Accumulator Grove aids with compression ring seal. Triple Spiral Lock Rings. Machined in Oil Returns. CNC machined pin bores produce straight and accurately sized bores. Diamond finished skirts.
Features & benefits
- Bore: 4.120 +.060"
- Pin Size: 0.9805/ Pin# 0980X300K
- Ring Set: 4120AM8
- Stroke: 3.750
- Comp HT: 1.710
- O.E Deck HT: 10.250
- Lock Ring:PRH107-3
- Flat Top 6cc w/2 Valve Reliefs
- Centered Pin
- Deisgned for use with 14 degree head
- 1967 and later. Piston in .025 below factory deck. Check small end of rod to piston before assembly / .045" clearance per side minimumm
Specifications
- GTIN
- 00800745045713
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- 390
- Base Number
- KB133
- Bore (in)
- 4.12
- Bore (mm)
- 104.6
- Compression Ratio
- 71-10.7, 87-9.2, 96-8.5, 111-7.6
- Crown (cc)
- +6cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 6.6
- Eng. Disp. In.
- 400
- Engine Family
- Pontiac V8
- Engine Manufacturer
- Pontiac
- Exhaust Valve Depth/diameter
- .240/2.140
- Intake Valve Depth/diameter
- .240/2.140
- Lock
- PRH107-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 10.25
- Oversize
- .060
- Oversizes
- .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .980
- Pin Diameter (mm)
- 24.9
- Pin Number
- 0980x300K
- Pin Type
- Floating
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 6.63
- Rod (mm)
- 168.402
- Sold As
- SINGLE
- Stroke (in)
- 3.75
- Stroke (mm)
- 95.3
- Top Land
- .300
- Year From
- 1967
- Year Range
- 1967-1979
- Year To
- 1979
Fitment status
This product is universal and will fit your application.
Resources

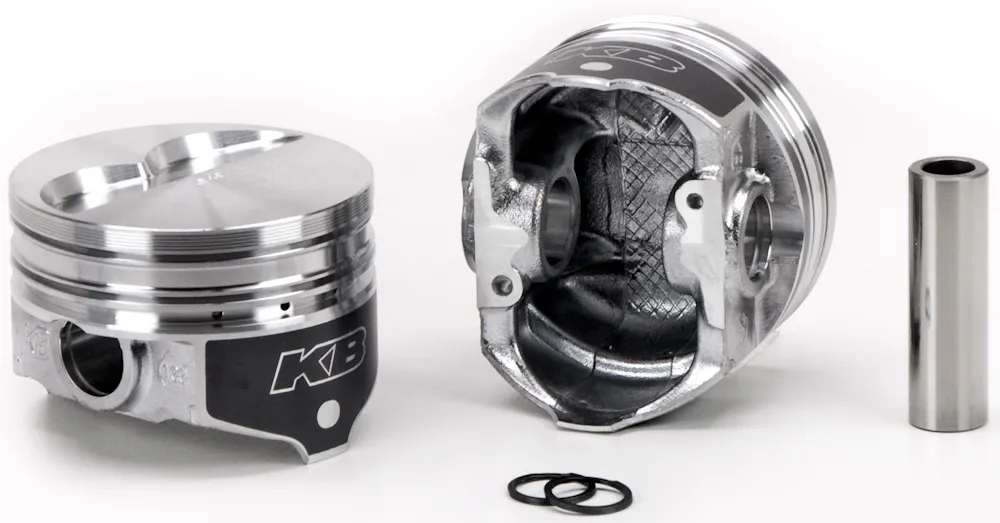

KB Hypereutectic Pistons SKB133L.060
