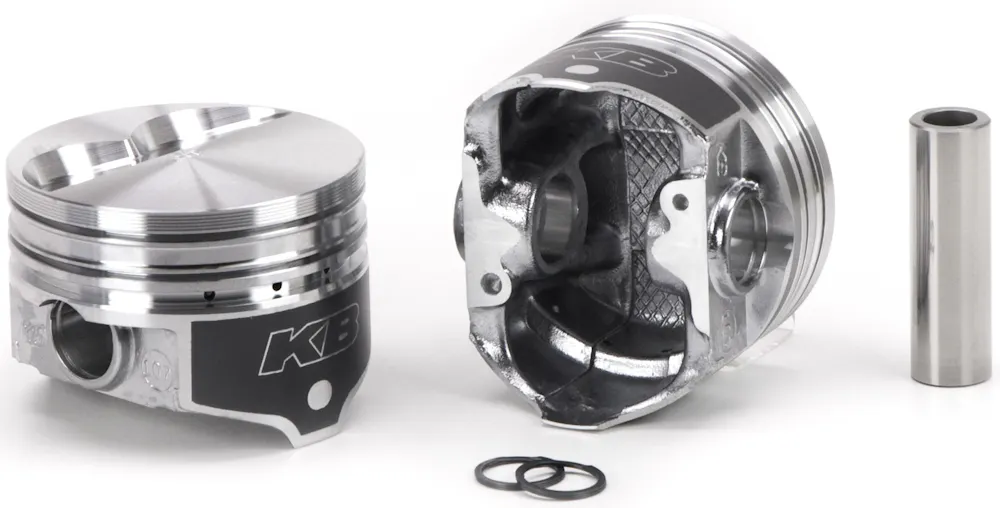

KB Hypereutectic Pistons · SKB107R.070
Part #: SKB107R.070
UPC: 800745187413
Log in for inventory
Notify me when this item is in stock.
Description: KB Hyper Right Single Piston Chry 360 Rod -6.123 Flat Top +5cc 2V; 4.000 +.070" Flat Top 5cc w/2 Valve Reliefs,Top Ring:5/64", 2nd Ring: 5/64", Oil Ring: 3/16", Comp Ratios:10.9/62cc,10.7/64cc,10.2/68cc,9.8/72cc,Gram weight 524/132, INT-Valve Depth/DIA .280-2.160", EX-Relief Depth/Dia .280-2.160"
Description:
Description
KB Series Hypereutectic 390 Alloy with 16% Silicon is a High Performance Piston for Marine, Drag, Circle Track and Towng. Fully machined head and valve reliefs. Mini Grooves to reduce scuffing if overheated. Accumulator Grove aids with compression ring seal. Triple Spiral Lock Rings. Machined in Oil Returns. CNC machined pin bores produce straight and accurately sized bores. Diamond finished skirts.
Features & benefits
- Bore: 4.000 +.070"
- Piston may protrude on 1992 and up Magnum truck blocks
- .070" oversize can be used with 340 block and 360 crank
- Stroke: 3.580
- Comp HT: 1.675
- O.E Deck HT: 9.599
- Lock Ring:PRH107-3
- Flat Top 5cc w/2 Valve Reliefs
- Centered Pin
- Pin Size: .9842/ Pin# 0.984X300K
- Ring Set: 4000BD8 or 4000BMB
Specifications
- GTIN
- 00800745187413
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- 390
- Base Number
- KB107
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- 62-10.9, 64-10.7, 68-10.2, 72-9.8
- Crown (cc)
- +5cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 5.9
- Eng. Disp. In.
- 360
- Engine Family
- Mopar Small Block LA
- Engine Manufacturer
- Chrysler
- Exhaust Valve Depth/diameter
- .280/2.160
- Intake Valve Depth/diameter
- .280/2.160
- Lock
- PRH107-3
- Make For Engine Family
- Mopar
- Oe Deck Height
- 9.599
- Oversize
- .070
- Oversizes
- STD .020 .030 .040 .060 .070
- Pin Configuration
- Centered
- Pin Diameter (in)
- .984
- Pin Diameter (mm)
- 25.0
- Pin Number
- 0984x300K
- Pin Type
- Floating
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 6.123
- Rod (mm)
- 155.5242
- Sold As
- SINGLE
- Stroke (in)
- 3.58
- Stroke (mm)
- 90.9
- Top Land
- .274
- Year From
- 1958
- Year Range
- 1958-2009
- Year To
- 2009
Fitment status
This product is universal and will fit your application.
