KB Hypereutectic Pistons · KB416KTM.020

KB Hypereutectic Pistons KB416KTM.020

Part #: KB416KTM.020
UPC: 800745232410

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: KB Hypereutectic Pistons Series: KB Hyper Piston and Ring Kits

Log in to order

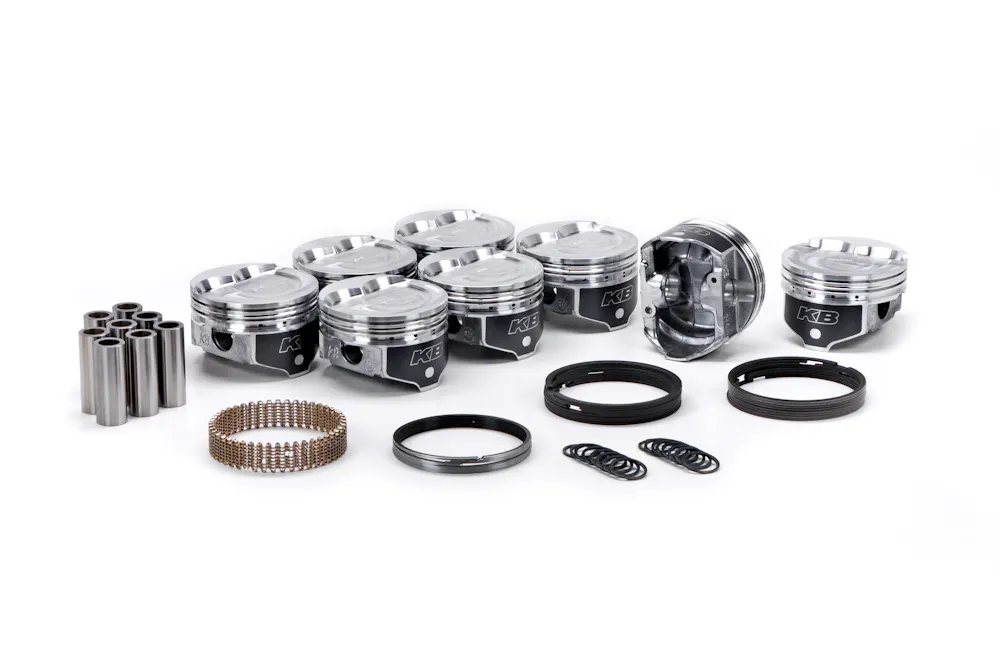

Description: 1 Set KB416.020/1 Set 4000AM8.020

Description

1 Set KB416.020/1 Set 4000AM8.020

Features & benefits

Centered pin. Can be used with Magnum rod, small end narrowed to 1". Made with Chrysler 360 block. Use with closed chamber heads, no quench dome.

Specifications

GTIN: 00800745232410
Weight: 14 lb
Height: 5 in
Length: 22.5 in
Width: 10 in
Life cycle: Available to Order
AAM brand code: KBP
Warehouse brand code: BJDT
AAIA brand code: BJDT

Attributes

Alloy: Cast 390 Hypereutectic Alloy
Base Number: KB416
Bore (in): 4
Bore (mm): 101.6
Bore Diameter: 4.0
Compression Ratio: 62-9.8, 64-9.6, 68-9.2, 72-8.9
Crown (cc): +25.0cc
Crown Type: STEP DISH 2v
Cylinder Bore Diameter: 4
Eng. Disp Liters: 6.7
Eng. Disp. In.: 408
Eng. Disp. Liters: 6.7
Engine Family: Mopar Small Block Magnum
Engine Manufacturer: Chrysler
Exhaust Valve Depth/diameter: .286/2.200
Grade Type: Performance
Intake Valve Depth/diameter: .286/2.200
Lock: PRH107-3
Make For Engine Family: Mopar
Oe Deck Height: 9.599
Oversize: .020
Oversized: Yes
Oversizes: STD .020 .030 .040 .060 .070 .080
Pin Configuration: Centered
Pin Diameter (in): .984
Pin Diameter (mm): 25.0
Pin Number: 0984x216K
Pin Type: Press or Floating
Piston Head Type: Dish
Piston Material: Cast 390 Hypereutectic Alloy
Ring Pack: 5/64, 5/64, 3/16
Rod (in): 6.123
Rod (mm): 155.5242
Sold As: Complete Piston and Ring Kit
Stroke (in): 4.000
Stroke (mm): 101.6
Top Land: .275
Year From: 1959
Year Range: 1959-2010
Year To: 2010

Fitment status

This product is universal and will fit your application.
