KB Hypereutectic Pistons · KB402KTD.060
Part #: KB402KTD.060
UPC: 800745170224
Log in for inventory
Notify me when this item is in stock.
Description: 1 Set KB402.060/1 Set 4360BD8.065
Description:
Description
1 Set KB402.060/1 Set 4360BD8.065
Features & benefits
- Centered pin. Spacer ring included. Made from Ford 460 block. Check rod side clearance.
Specifications
- GTIN
- 00800745170224
- Weight
- 14 lb
- Height
- 5 in
- Length
- 22.5 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- KB402
- Bore (in)
- 4.36
- Bore (mm)
- 110.7
- Bore Diameter
- 110.7
- Compression Ratio
- 76-11.0, 82-10.5, 91-9.8, 97-9.4
- Crown (cc)
- +20.5cc
- Crown Type
- STEP DISH 1V
- Cylinder Bore Diameter
- 4.36
- Eng. Disp Liters
- 8.5
- Eng. Disp. In.
- 521
- Eng. Disp. Liters
- 8.5
- Engine Family
- Ford Big Block 429-460
- Engine Manufacturer
- Ford
- Grade Type
- Performance
- Intake Valve Depth/diameter
- .236/2.370
- Lock
- PRG110-3
- Make For Engine Family
- Ford
- Oe Deck Height
- 10.32
- Oversize
- .060
- Oversized
- Yes
- Oversizes
- .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- 0990x300K
- Pin Type
- Press or Floating
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6.8
- Rod (mm)
- 172.72
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 4.3
- Stroke (mm)
- 109.2
- Top Land
- .300
- Year Range
- -
Fitment status
This product is universal and will fit your application.

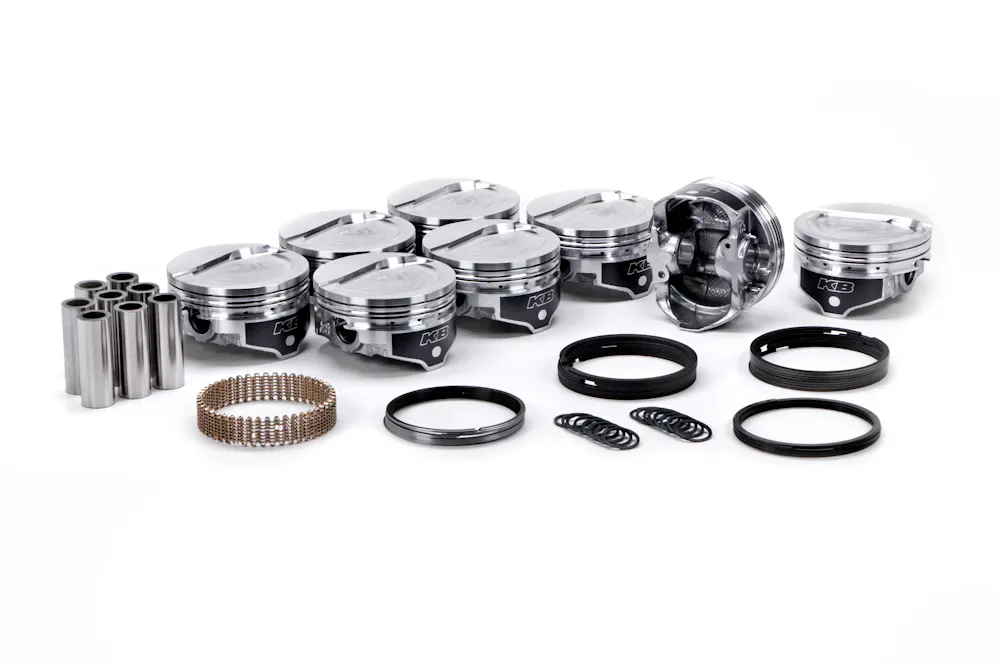

KB Hypereutectic Pistons KB402KTD.060
