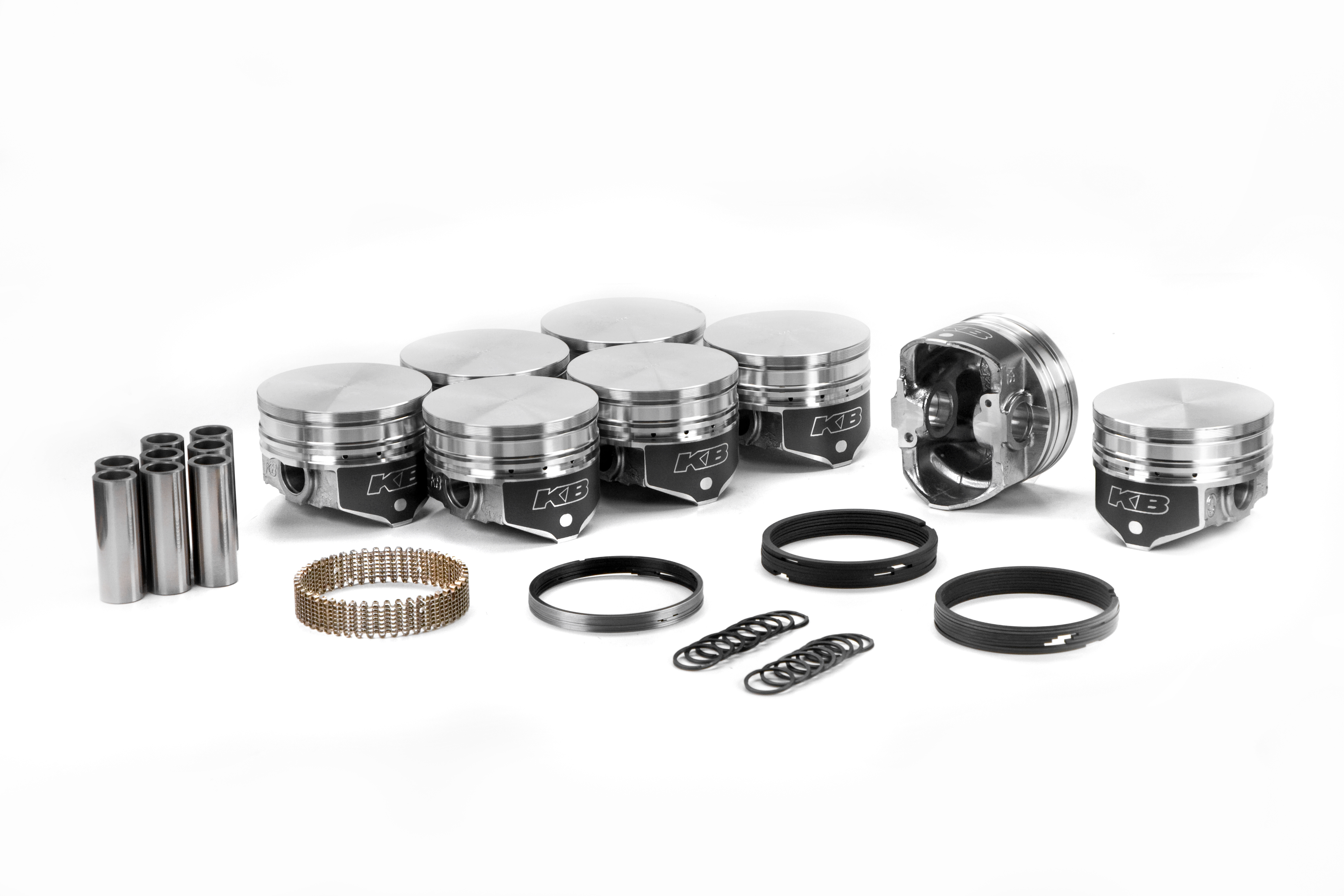

KB Hypereutectic Pistons · KB353KTM.030
Part #: KB353KTM.030
UPC: 800745168658
Log in for inventory
Notify me when this item is in stock.
Description: 1 Set KB353.030/1 Set 4300AM8.030
Description:
Description
1 Set KB353.030/1 Set 4300AM8.030
Features & benefits
- Centered pin.
Specifications
- GTIN
- 00800745168658
- Weight
- 14 lb
- Height
- 5 in
- Length
- 22.5 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- KB353
- Bore (in)
- 4.3
- Bore (mm)
- 109.2
- Bore Diameter
- 109.2
- Compression Ratio
- 76-13.1, 120-9.0
- Crown Type
- FLAT TOP
- Cylinder Bore Diameter
- 4.3
- Eng. Disp Liters
- 8.2
- Eng. Disp. In.
- 500
- Eng. Disp. Liters
- 8.2
- Engine Family
- Cadillac V8
- Engine Manufacturer
- Cadillac
- Grade Type
- Performance
- Lock
- PRG110-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 10.814
- Oversize
- .030
- Oversized
- Yes
- Oversizes
- .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- 1.000
- Pin Diameter (mm)
- 25.4
- Pin Number
- 1.000x300K
- Pin Type
- Press or Floating
- Piston Material
- Cast 390 Hypereutectic Alloy
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 6.75
- Rod (mm)
- 171.45
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 4.3
- Stroke (mm)
- 109.2
- Top Land
- .222
- Year From
- 1970
- Year Range
- 1970-1976
- Year To
- 1976
Fitment status
This product is universal and will fit your application.
