KB Hypereutectic Pistons · KB173.134

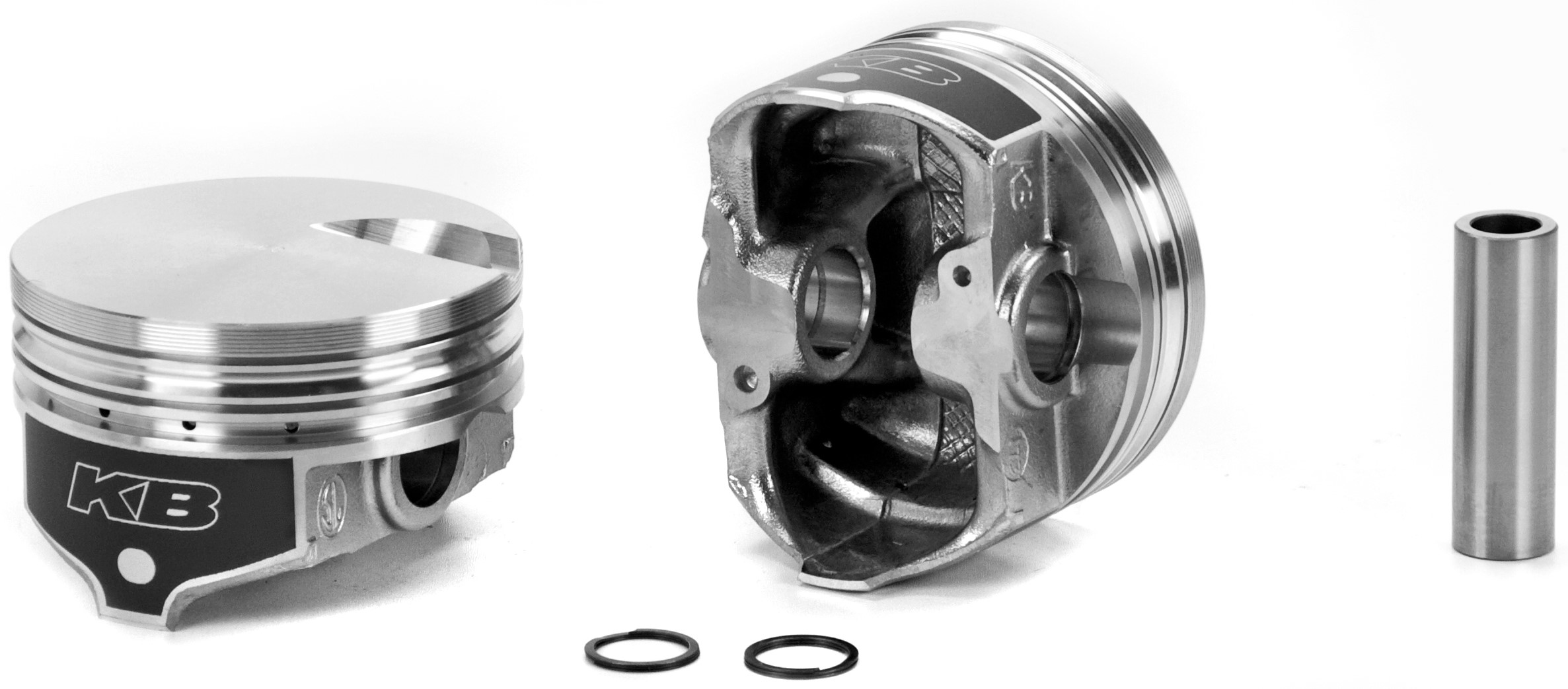

KB Hypereutectic Pistons KB173.134

Part #: KB173.134
UPC: 800745051059

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: KB Hypereutectic Pistons Series: KB Hyper Piston Sets

Log in to order

Description: KB Hyper Piston - Chevy 502 Rod 6.135 Flat Top +3cc 1V

Description

KB Hyper Piston - Chevy 502 Rod 6.135 Flat Top +3cc 1V

Features & benefits

Centered pin.

Specifications

GTIN: 00800745051059
Weight: 12 lb
Height: 5 in
Length: 19 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: KBP
Warehouse brand code: BJDT
AAIA brand code: BJDT

Attributes

Alloy: 390
Base Number: KB173
Bore (in): 4.466
Bore (mm): 113.4
Bore Diameter: 113.4
Compression Ratio: 96.5-10.5, 105-9.8, 108-9.6, 119-8.9
Crown (cc): +3cc
Crown Type: FLAT TOP 1V
Cylinder Bore Diameter: 4.466
Eng. Disp Liters: 8.2
Eng. Disp. In.: 502
Engine Family: Chevrolet BB V8 Gen V
Engine Manufacturer: Chevrolet
Intake Valve Depth/diameter: .286/2.400
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 9.8
Oversize: .134
Oversized: Yes
Oversizes: .004 .034 .064 .100 .134
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: 0990x300K
Pin Type: Press or Floating
Piston Head Type: Flat
Piston Material: Cast 390 Hypereutectic Alloy
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.135
Rod (mm): 155.829
Sold As: PISTON SET
Stroke (in): 4.000
Stroke (mm): 101.6
Top Land: .311
Year From: 1979
Year Range: 1979-1991
Year To: 1991

Fitment status

This product is universal and will fit your application.
