KB Hypereutectic Pistons · KB160.010

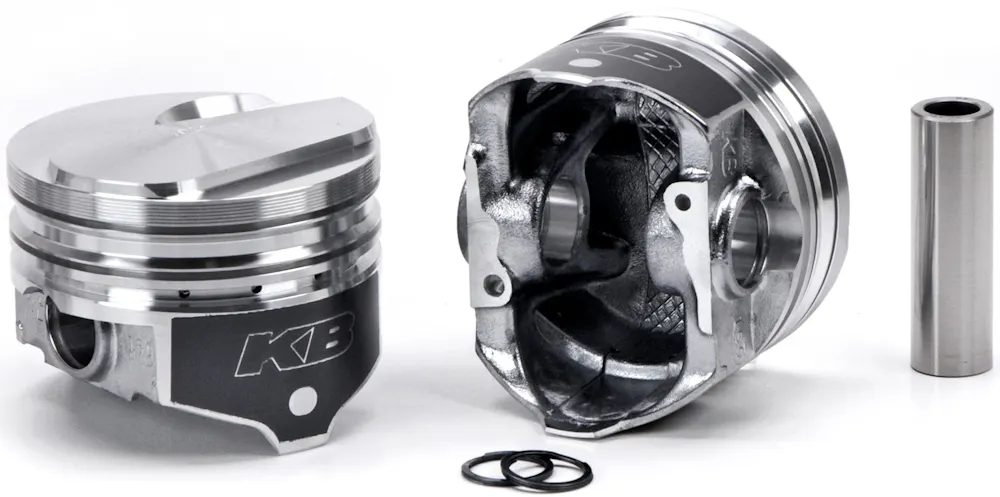

KB Hypereutectic Pistons KB160.010

Part #: KB160.010
UPC: 800745049285

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: KB Hypereutectic Pistons Series: KB Hyper Piston Sets

Log in to order

Description: KB Hyper Piston - Chevy 396, 402 Rod 6.135 cc Hollow Dome -17cc 1V

Description

KB Hyper Piston - Chevy 396, 402 Rod 6.135 cc Hollow Dome -17cc 1V

Features & benefits

Centered pin. For a 396ci engine use part number KB160.STD. This will be a 396ci .030 over bore. Compression ratio will be 10.3 on 96.5cc head. Closed chamber head. Will fit Edelbrock 110cc heads.

Specifications

GTIN: 00800745049285
Weight: 12 lb
Height: 5 in
Length: 19 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: KBP
Warehouse brand code: BJDT
AAIA brand code: BJDT

Attributes

Alloy: 390
Base Number: KB160
Bore (in): 4.125
Bore (mm): 104.8
Bore Diameter: 104.8
Compression Ratio: 96.5-10.5, 105-9.6, 108-9.4, 119-8.5
Crown (cc): -17cc
Crown Type: .180" HOLLOW DOME 1V
Cylinder Bore Diameter: 4.125
Eng. Disp Liters: 6.5
Eng. Disp. In.: 396
Engine Family: Chevrolet BB V8 Mark IV
Engine Manufacturer: Chevrolet
Intake Valve Depth/diameter: .285/2.310
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 9.8
Oversize: .010
Oversized: Yes
Oversizes: STD .010 .020 .030 .040 .060
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: 0990x300K
Pin Type: Press or Floating
Piston Head Type: Dome
Piston Material: Cast 390 Hypereutectic Alloy
Ring Pack: 5/64, 5/64, 3/16
Rod (in): 6.135
Rod (mm): 155.829
Sold As: PISTON SET
Stroke (in): 3.76
Stroke (mm): 95.5
Top Land: .311
Year Range: -

Fitment status

This product is universal and will fit your application.
