KB Hypereutectic Pistons · KB153KTM.060
Part #: KB153KTM.060
Log in for inventory
Notify me when this item is in stock.
Description: Pistons & Rings, 3.736" STD, Flat Top 5cc w/2V,Top Ring:1/16", 2nd Ring: 1/16", Oil Ring: 3/16", Comp Ratios: 10.4w/55cc,10.0/58cc,9.3w/64cc,8.2w/76cc,Gram weight 418/145, INT-Valve Depth/DIA .280-2000", EX-Relief Depth/Dia .280-2.000"
Description:
Description
KB Series Hypereutectic 390 Alloy with 16% Silicon is a High Performance Piston for Marine, Drag, Circle Track and Towng. Fully machined head and valve reliefs. Mini Grooves to reduce scuffing if overheated. Accumulator Grove aids with compression ring seal. Triple Spiral Lock Rings. Machined in Oil Returns. CNC machined pin bores produce straight and accurately sized bores. Diamond finished skirts.
Specifications
- Life cycle
- Available to Order
- AAM brand code
- KBP
- Warehouse brand code
- BJDT
- AAIA brand code
- BJDT
Attributes
- Alloy
- 390
- Base Number
- KB153
- Bore (in)
- 3.736
- Bore (mm)
- 94.9
- Compression Ratio
- 55-10.4, 62-10.0, 64-9.3, 76-8.2
- Crown (cc)
- +5cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 5
- Eng. Disp. In.
- 305
- Engine Family
- Chevrolet SB V8 Gen I
- Engine Manufacturer
- Chevrolet
- Exhaust Valve Depth/diameter
- .280/2.000
- Intake Valve Depth/diameter
- .280/2.000
- Lock
- PRJ100-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.025
- Oversize
- .060
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .927
- Pin Diameter (mm)
- 23.5
- Pin Number
- 0927X300K
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6
- Rod (mm)
- 152.4
- Sold As
- KIT W/RINGS
- Stroke (in)
- 3.48
- Stroke (mm)
- 88.4
- Top Land
- .275
- Year From
- 1960
- Year Range
- 1960-2002
- Year To
- 2002
Fitment status
This product is universal and will fit your application.
Resources

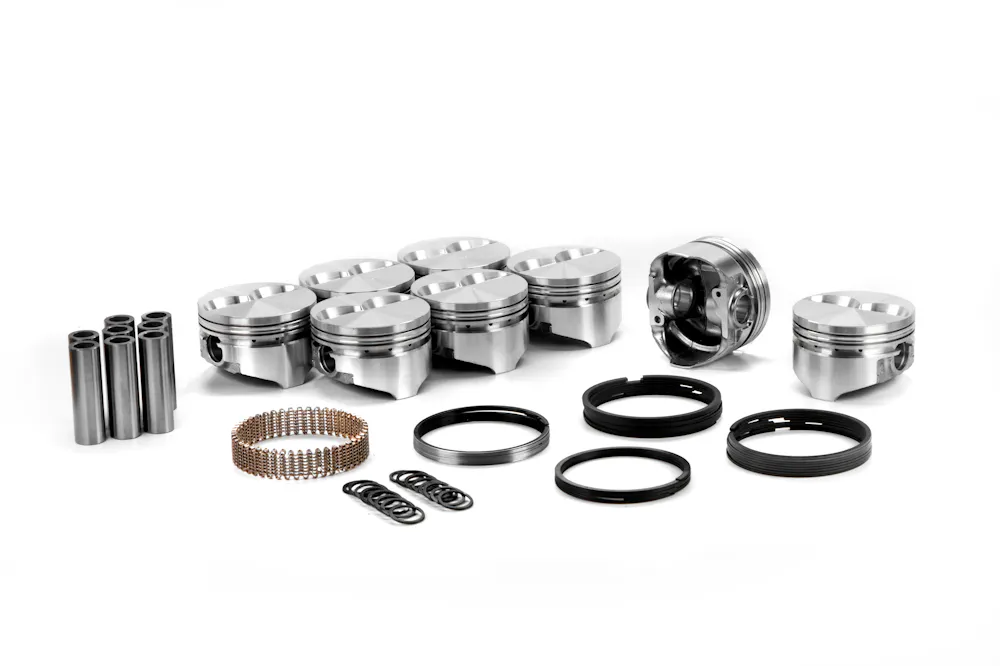

KB Hypereutectic Pistons KB153KTM.060
