KB Hypereutectic Pistons · 9912HCKTM.020

KB Hypereutectic Pistons 9912HCKTM.020

Part #: 9912HCKTM.020
UPC: 800745156969

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: KB Hypereutectic Pistons Series: KB Claimer Piston and Ring Kits

Log in to order

Description: 1 Set 9912HC.020/1 Set 4000AM8.020

Description

1 Set 9912HC.020/1 Set 4000AM8.020

Features & benefits

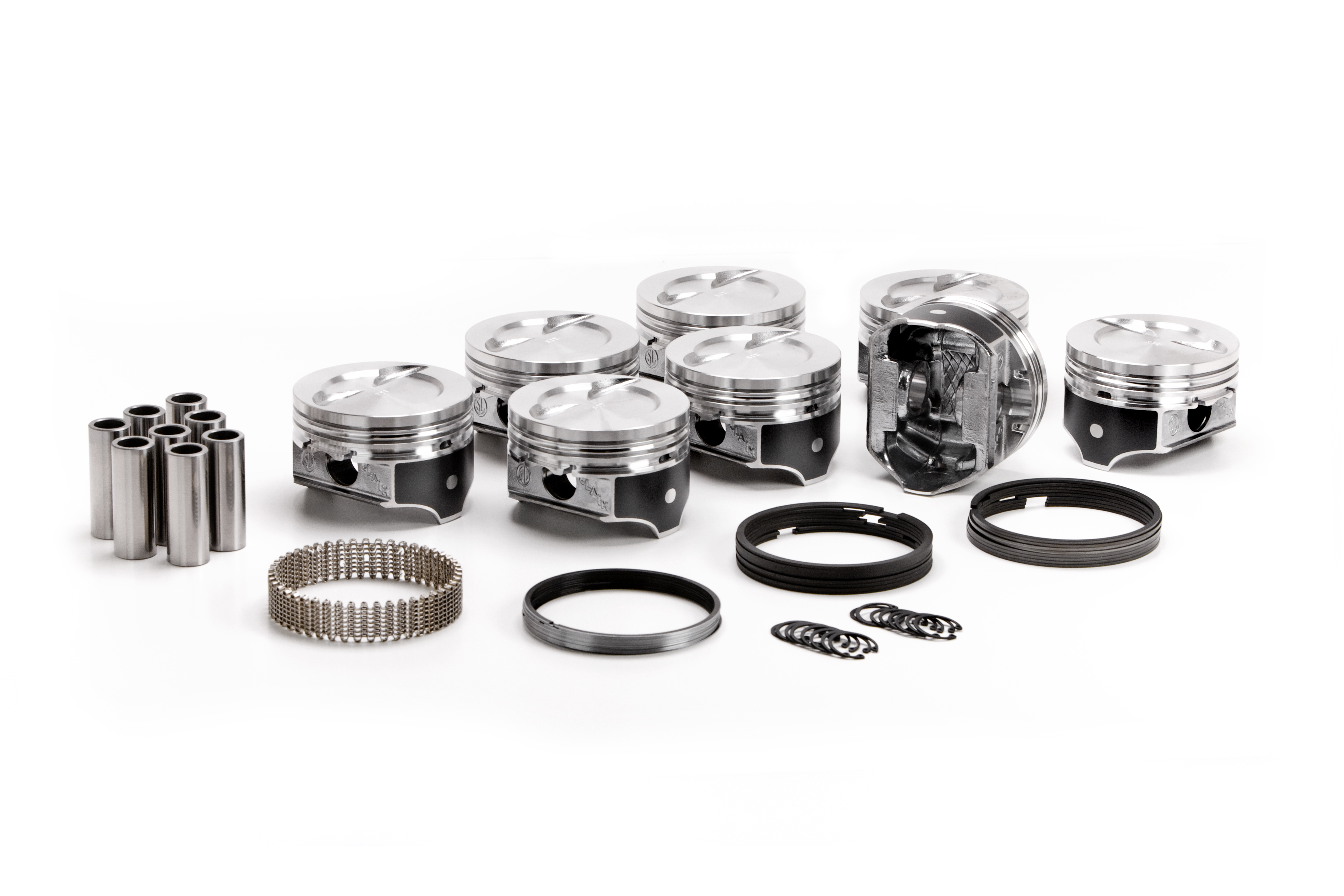

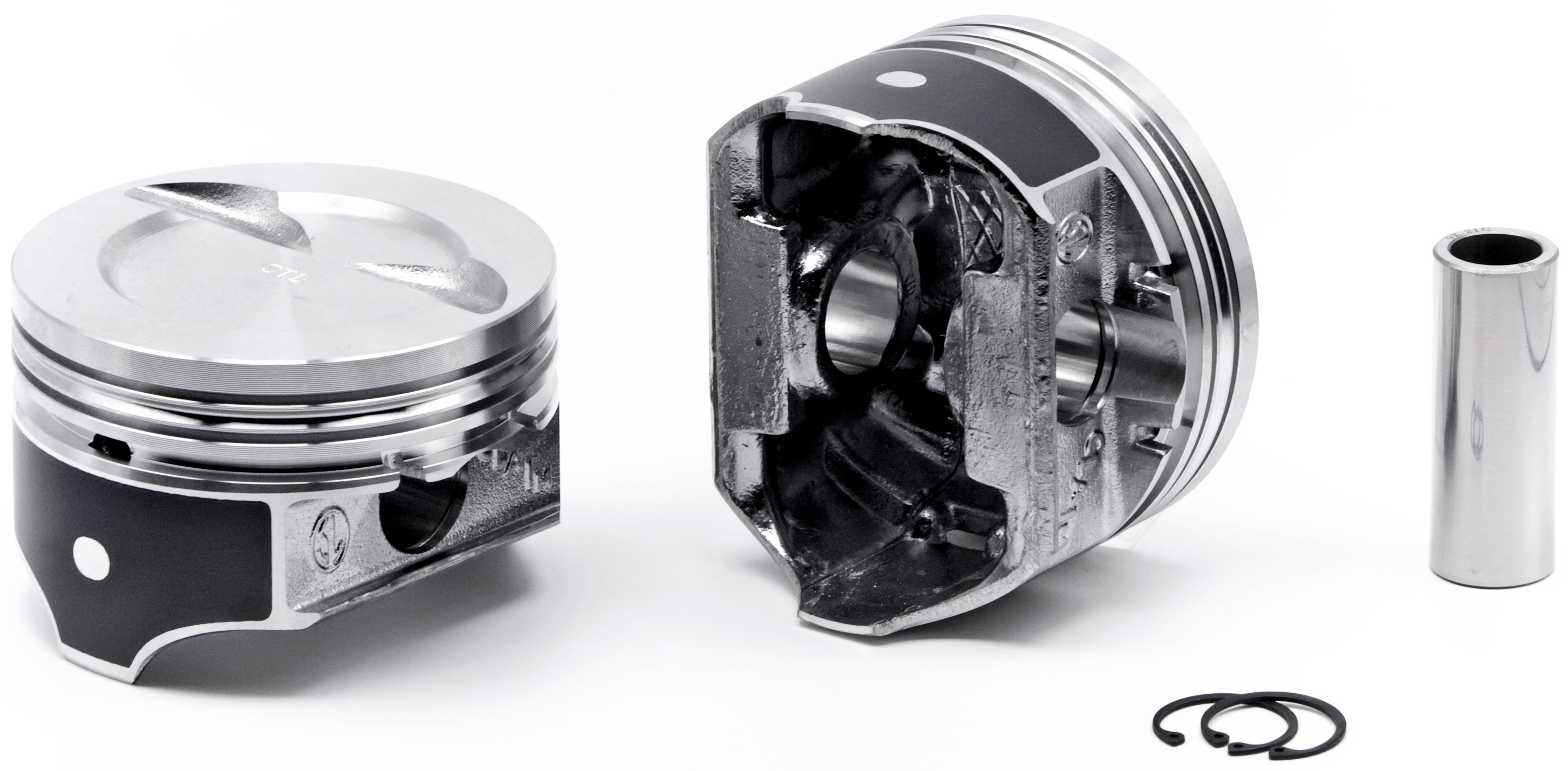

2 symmetrical valve reliefs, centered pin. Coated skirt. Now supplied with lockrings so the piston can run eihter full floating or press fit. Made with Chevy 350 SB. Cast iron moly ring set 4000AM8. Piston and ring set kit 9912HCKTM.

Specifications

GTIN: 00800745156969
Weight: 14 lb
Height: 5 in
Length: 22.5 in
Width: 10 in
Life cycle: Available to Order
AAM brand code: KBP
Warehouse brand code: BJDT
AAIA brand code: BJDT

Attributes

Alloy: Cast 390 Hypereutectic Alloy
Base Number: 9912HC
Bore (in): 4
Bore (mm): 101.6
Bore Diameter: 4.0
Compression Ratio: 58-10.9, 62-10.4, 64-10.2, 76-9.1
Crown (cc): +13cc
Crown Type: CIRCULAR DISH 2V
Cylinder Bore Diameter: 4
Eng. Disp Liters: 6.3
Eng. Disp. In.: 383
Eng. Disp. Liters: 6.3
Engine Family: Chevrolet SB V8 Gen I
Engine Manufacturer: Chevrolet
Exhaust Valve Depth/diameter: .250/2.200
Grade Type: Performance
Intake Valve Depth/diameter: .250/2.200
Lock: 93
Make For Engine Family: General Motors
Oe Deck Height: 9.03
Oversize: .020
Oversized: Yes
Oversizes: STD .020 .030 .040 .060
Pin Configuration: Centered
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: 0927X216K
Pin Type: Press or Floating
Piston Head Type: Dish
Piston Material: Cast 390 Hypereutectic Alloy
Ring Pack: 5/64, 5/64, 3/16
Rod (in): 5.7
Rod (mm): 144.78
Sold As: Complete Piston and Ring Kit
Stroke (in): 3.75
Stroke (mm): 95.3
Top Land: .194
Year Range: -

Fitment status

This product is universal and will fit your application.
