KB Hypereutectic Pistons · 9909HC.040

KB Hypereutectic Pistons 9909HC.040

Part #: 9909HC.040
UPC: 800745119520

Loading availability... Loading...

Notify me when this item is in stock.

Brand: KB Hypereutectic Pistons Series: KB Claimer Piston Sets

Log in to order

Description: KB Claimer Piston Set - Chevrolet 383 V8 Stroker 6.0 Rod, 2V Flat Top

Description

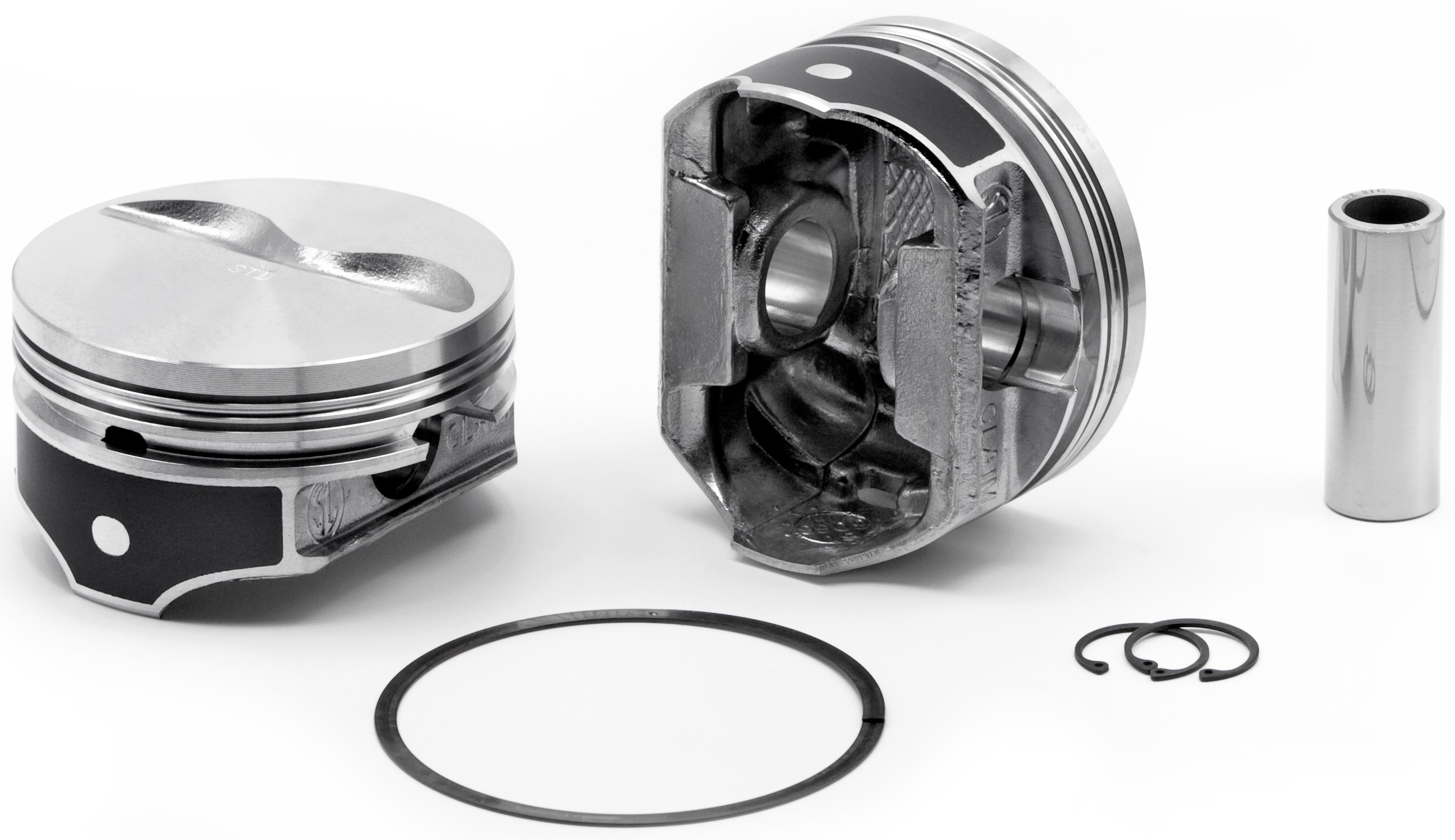

KB Claimer Piston Set - Chevrolet 383 V8 Stroker 6.0 Rod, 2V Flat Top

Features & benefits

2 symmetrical valve reliefs, centered pin. Coated skirt. Now supplied with lockrings so the piston can run either full floating or press fit. Made with Chevy 350 SB. Cast iron moly ring set 4000BM8. Piston and ring set kit 9909HCTKM.

Specifications

GTIN: 00800745119520
Weight: 12 lb
Height: 5 in
Length: 19 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: KBP
Warehouse brand code: BJDT
AAIA brand code: BJDT

Attributes

Alloy: 390
Base Number: 9909HC
Bore (in): 4
Bore (mm): 101.6
Bore Diameter: 4.0
Compression Ratio: 58-12.0, 62-11.4, 64-11.1, 76-9.8
Crown (cc): +5cc
Crown Type: FLAT TOP 2V
Cylinder Bore Diameter: 4
Eng. Disp Liters: 6.3
Eng. Disp. In.: 383
Engine Family: Chevrolet SB V8 Gen I
Engine Manufacturer: Chevrolet
Exhaust Valve Depth/diameter: .250/2.200
Intake Valve Depth/diameter: .250/2.200
Lock: 93
Make For Engine Family: General Motors
Oe Deck Height: 9.025
Oversize: .040
Oversized: Yes
Oversizes: STD .020 .030 .040 .060
Pin Configuration: Centered
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: 0927X216K
Pin Type: Press or Floating
Piston Head Type: Flat
Piston Material: Cast 390 Hypereutectic Alloy
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6
Rod (mm): 152.4
Sold As: PISTON SET
Stroke (in): 3.75
Stroke (mm): 95.3
Top Land: .260
Year Range: -

Fitment status

This product is universal and will fit your application.
