KB Hypereutectic Pistons · 9901HC.040

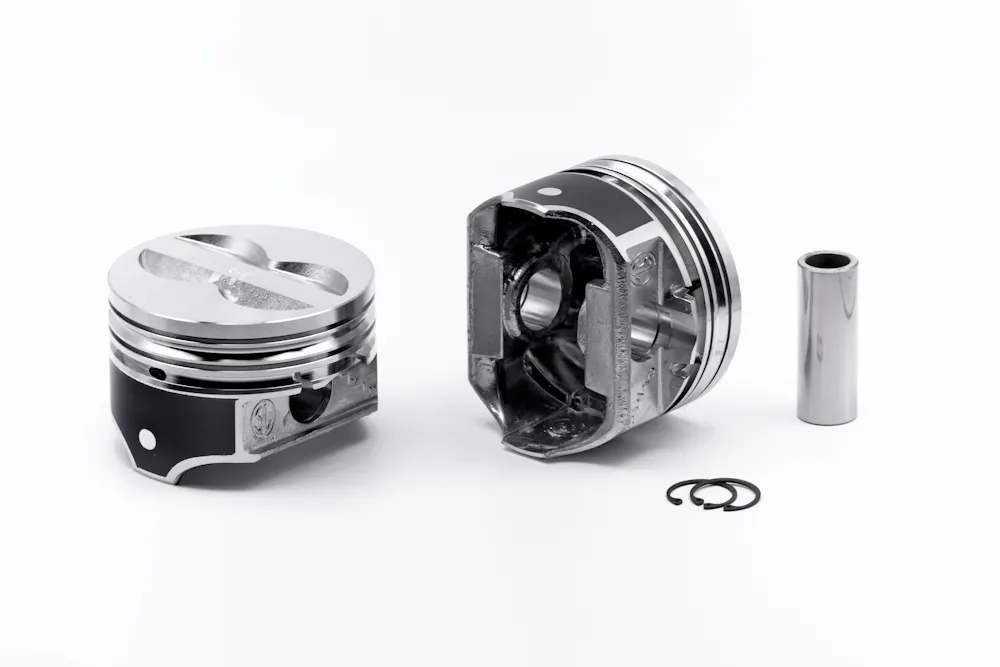

KB Hypereutectic Pistons 9901HC.040

Part #: 9901HC.040
UPC: 800745118875

Loading availability... Loading...

Notify me when this item is in stock.

Brand: KB Hypereutectic Pistons Series: KB Claimer Piston Sets

Log in to order

Description: KB AUTOMOTIVE Claimer Piston - Chevrolet 350ci/5.7L (V8)

Description

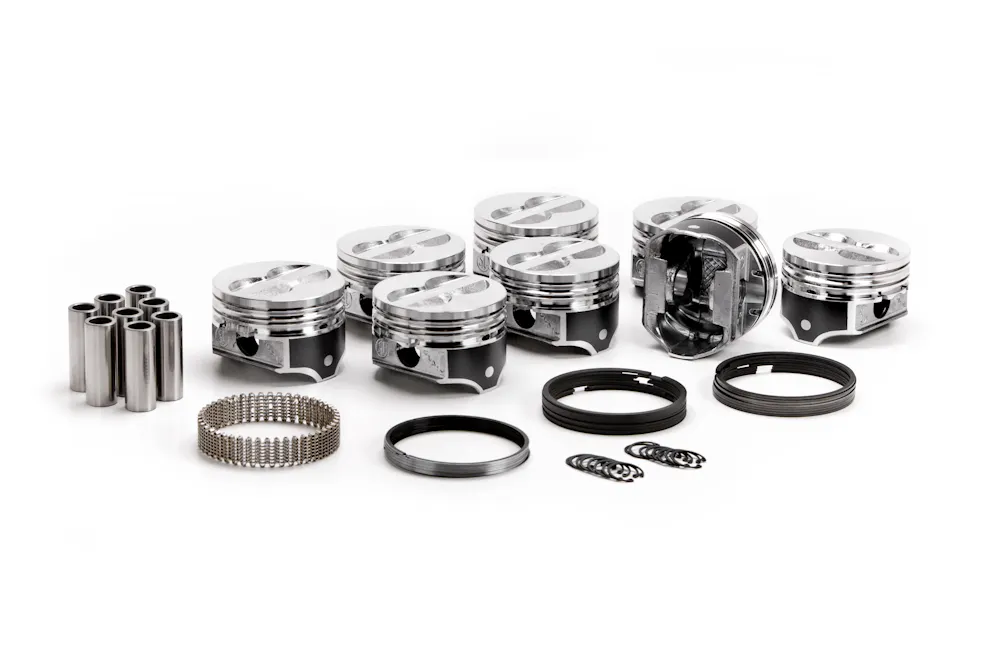

KB AUTOMOTIVE Claimer Piston - Chevrolet 350ci/5.7L (V8)

Features & benefits

4 symmetrical valve reliefs, centered pin. Coated skirt. Now supplied with lockrings so the piston can be either full floating or press pin. Cast iron moly ring set 4000AM8. Piston and ring set kit 9901HCKTM.

Specifications

GTIN: 00800745118875
Weight: 12 lb
Height: 5 in
Length: 19 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: KBP
Warehouse brand code: BJDT
AAIA brand code: BJDT

Attributes

Alloy: 390
Base Number: 9901HC
Bore (in): 4
Bore (mm): 101.6
Bore Diameter: 4.0
Compression Ratio: 58-10.9, 62-10.4, 64-10.2, 76-9.0
Crown (cc): +7cc
Crown Type: FLAT TOP 4V
Cylinder Bore Diameter: 4
Eng. Disp Liters: 5.7
Eng. Disp. In.: 350
Engine Family: Chevrolet SB V8 Gen I
Engine Manufacturer: Chevrolet
Exhaust Valve Depth/diameter: .200/2.120
Intake Valve Depth/diameter: .200/2.120
Lock: 93
Make For Engine Family: General Motors
Oe Deck Height: 9.025
Oversize: .040
Oversized: Yes
Oversizes: STD .020 .030 .040 .060 .080
Pin Configuration: Centered
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: 0927x216K
Pin Type: Press or Floating
Piston Head Type: Flat
Piston Material: Cast 390 Hypereutectic Alloy
Ring Pack: 5/64, 5/64, 3/16
Rod (in): 5.7
Rod (mm): 144.78
Sold As: PISTON SET
Stroke (in): 3.48
Stroke (mm): 88.4
Top Land: .254
Year From: 1958
Year Range: 1958-2007
Year To: 2007

Fitment status

This product is universal and will fit your application.
