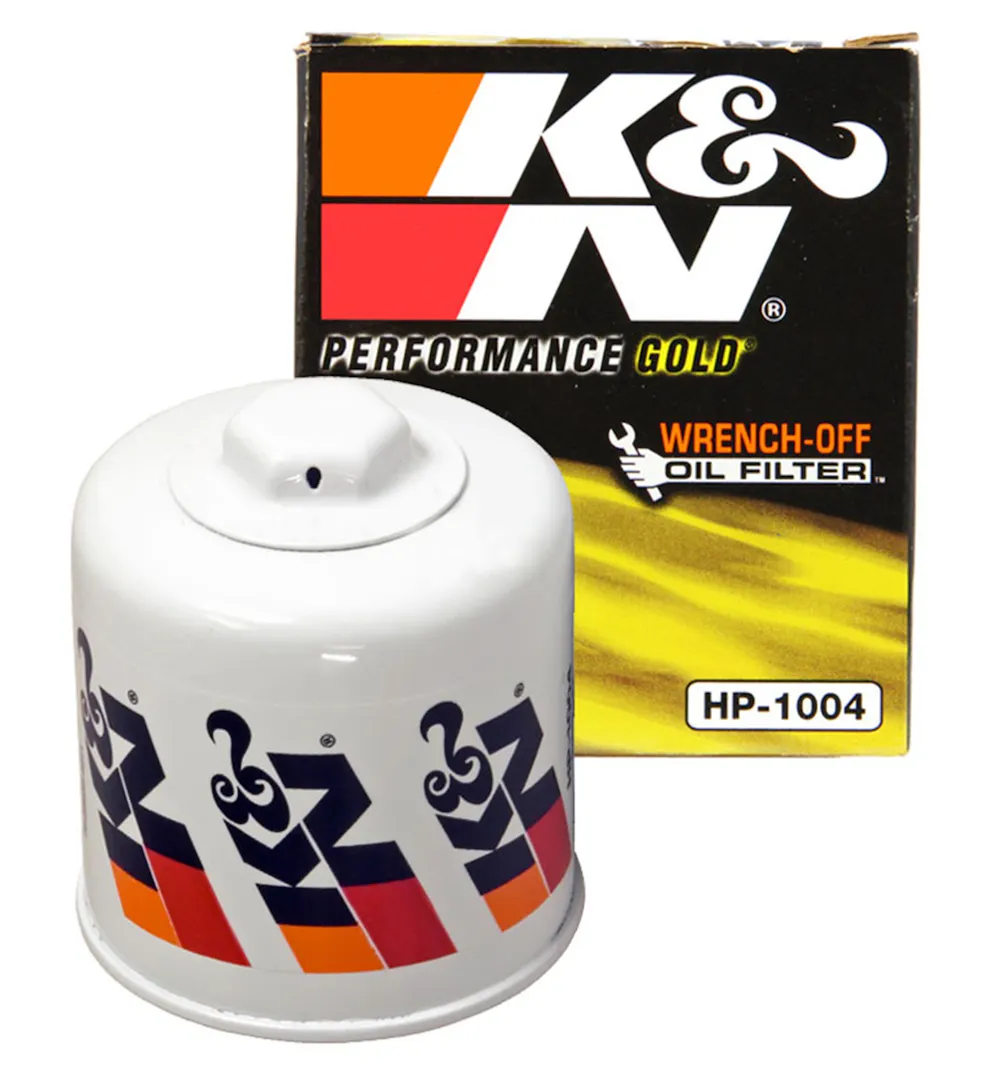

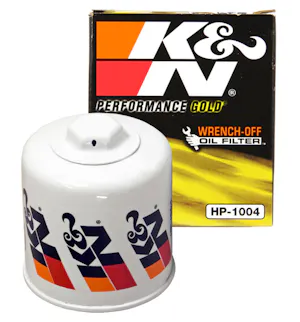

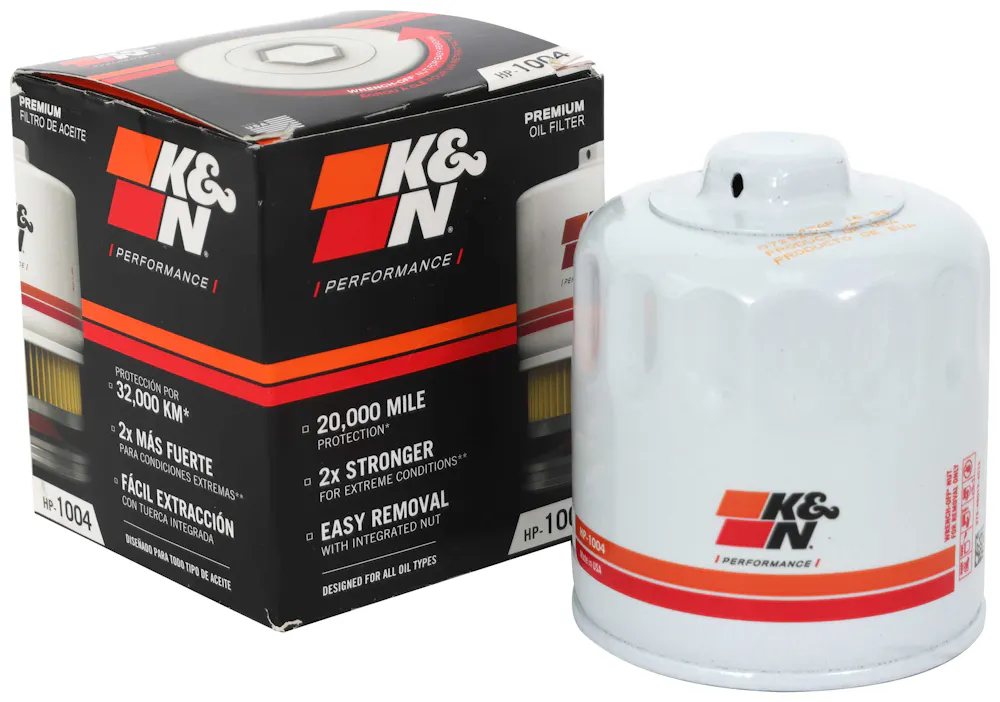

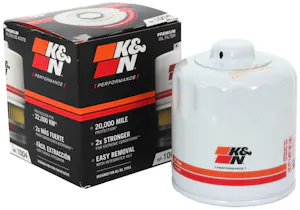

K&N · HP-1004
Part #: HP-1004
UPC: 024844034943
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.

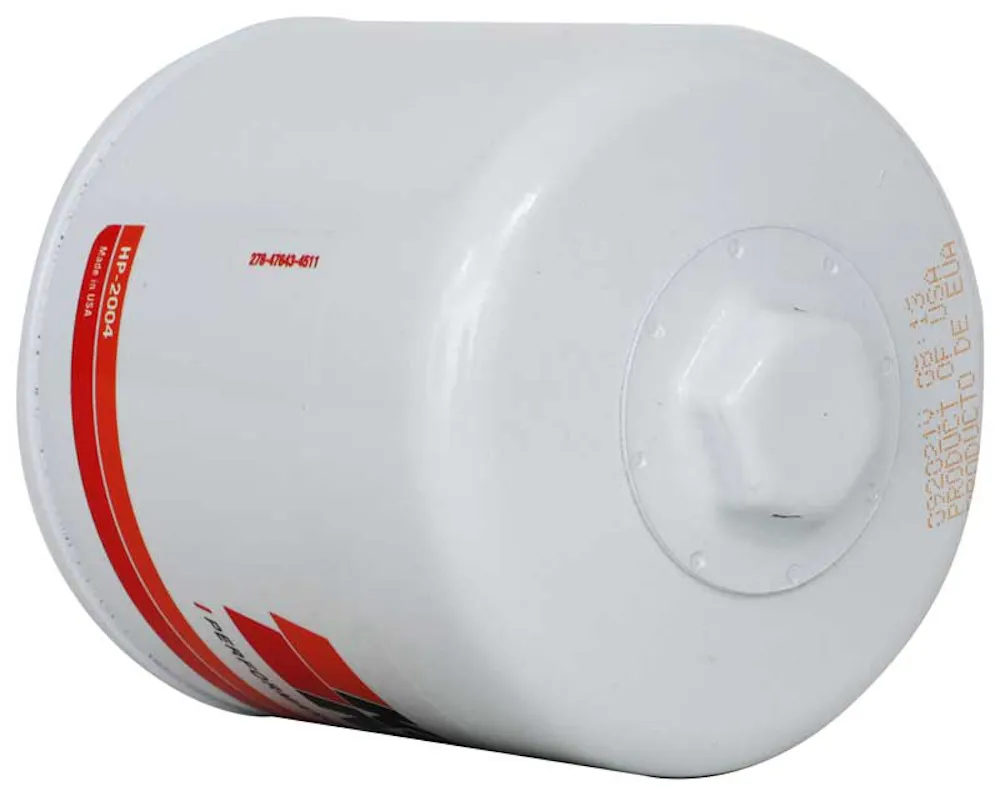

Description: K&N Wrench-Off oil filters are engineered to help ensure high flow rates and exceptional protection from contaminants. Each filter comes with a hex nut welded to the top of the canister, allowing for easy removal with a standard wrench.
Description:
Description
K&N premium oil filters are meticulously engineered to offer outstanding filtration and engine protection. Designed to operate with all synthetic, conventional, and blended motor oils, K&N's pleated synthetic-blend filtration media helps to shield your engine from contaminants and ensure a consistent flow of oil. The heavy-duty canister is engineered to be exceptionally durable, and a one-inch welded hex nut can be used for quick and easy filter removal. Each filter is specifically designed to withstand the service intervals recommended by vehicle manufacturers, and is protected by the K&N 1-Year Limited Warranty.
Features & benefits
- Designed to allow high flow rates and a consistent flow of oil to your engine
- Pleated synthetic-blend filtration media removes most harmful contaminants
- Fast and easy Wrench-Off® removal using the welded one-inch hex nut
- High capacity to withstand the service intervals recommended by vehicle manufacturers
- Heavy-duty canister for outstanding durability
- Laboratory tested to ensure excellent capacity, efficiency, and mechanical strength
- Designed to operate with all synthetic, conventional, and blended motor oils
- 1-Year Limited Warranty
Application summary
| Year | Make / model |
|---|---|
| 1997-1999 | Acura CL |
| 2001-2003 | Acura CL |
| 1997-2002 | Acura EL |
| 1988-2001 | Acura Integra |
| 2001-2002 | Acura MDX |
| 1996-2004 | Acura RL |
| 1996-1999 | Acura SLX |
| 1995-2003 | Acura TL |
| 1992-1994 | Acura Vigor |
| 1993 | Asuna Sunfire |
| 2023-2024 | BYD Song Plus |
| 1997-2005 | Chevrolet LUV |
| 1985-1988 | Chevrolet Spectrum |
| 2001-2005 | Chrysler Sebring |
| 2003-2005 | Dodge H100 |
| 1991-1996 | Dodge Stealth |
| 2001-2005 | Dodge Stratus |
| 1994-1995 | Ford Aspire |
| 1988-1993 | Ford Festiva |
| 2019-2023 | Genesis G70 |
| 1989 | Geo Spectrum |
| 1990-1993 | Geo Storm |
| 1984-2002 | Honda Accord |
| 1988-2000 | Honda Civic |
| 1993-1997 | Honda Civic del Sol |
| 1997-2001 | Honda CR-V |
| 1988-1991 | Honda CRX |
| 1995-2004 | Honda Odyssey |
| 1994-2002 | Honda Passport |
| 2003 | Honda Pilot |
| 1983-2001 | Honda Prelude |
| 2000-2009 | Honda S2000 |
| 1995-2019 | Hyundai Accent |
| 2020-2023 | Hyundai Creta |
| 1992-2026 | Hyundai Elantra |
| 2013-2014 | Hyundai Elantra Coupe |
| 2013-2020 | Hyundai Elantra GT |
| 2022-2026 | Hyundai Elantra N |
| 1986-1994 | Hyundai Excel |
| 2010-2014 | Hyundai Genesis Coupe |
| 2023-2024 | Hyundai HB20 |
| 2023-2024 | Hyundai HB20S |
| 2017-2022 | Hyundai Ioniq |
| 2015 | Hyundai ix35 |
| 2018-2021 | Hyundai Kona |
| 2022-2023 | Hyundai Kona N |
| 2001-2006 | Hyundai Santa Fe |
| 2010-2012 | Hyundai Santa Fe |
| 2019-2020 | Hyundai Santa Fe |
| 2013-2018 | Hyundai Santa Fe Sport |
| 1991-1995 | Hyundai Scoupe |
| 1989-2019 | Hyundai Sonata |
| 2020 | Hyundai Starex |
| 1997-2001 | Hyundai Tiburon |
| 2003-2008 | Hyundai Tiburon |
| 2005-2021 | Hyundai Tucson |
| 2012-2017 | Hyundai Veloster |
| 2019-2021 | Hyundai Veloster |
| 2019-2022 | Hyundai Veloster N |
| 2001 | Hyundai XG300 |
| 2002-2005 | Hyundai XG350 |
| 1989-1994 | Isuzu Amigo |
| 1998-2000 | Isuzu Amigo |
| 2002-2004 | Isuzu Axiom |
| 1985-1989 | Isuzu I-Mark |
| 1989-1992 | Isuzu Impulse |
| 1996-1999 | Isuzu Oasis |
| 1988-1995 | Isuzu Pickup |
| 1991-2004 | Isuzu Rodeo |
| 2001-2003 | Isuzu Rodeo Sport |
| 1991-1993 | Isuzu Stylus |
| 1984-2002 | Isuzu Trooper |
| 1999-2001 | Isuzu VehiCROSS |
| 2004-2006 | Kia Amanti |
| 2010-2024 | Kia Forte |
| 2010-2017 | Kia Forte Koup |
| 2012-2018 | Kia Forte5 |
| 2020-2024 | Kia Forte5 |
| 2024-2026 | Kia K3 |
| 2001-2010 | Kia Magentis |
| 2017-2026 | Kia Niro |
Specifications
- GTIN
- 10024844034943
- Weight
- 0.77 lb
- Height
- 4 in
- Length
- 3.19 in
- Width
- 3.19 in
- EO
- Legal US
- Life cycle
- Available to Order
- Alt. part number
- HP-1004
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- AAM Standard Pack
- 12
- Additional O-Ring Included
- No
- Alternate Part Number
- HP-1004
- Anti Drain Back Valve
- Yes
- Anti-Drain Back Valve
- Yes
- Bypass Valve
- Yes
- California Proposition 65
- No
- Filter Material
- High Flow Premium Media
- Gasket Material
- High Temperature Nitrile
- Height
- 3.406 in (87 mm)
- Height (in.)
- 3.406 in. (87 mm)
- Item Height
- 3.406 in. (87mm)
- Item Weight
- 0.800 lbs. (0.3 kg)
- Outside Diameter
- 3.156 in (80 mm)
- PSI Relief Valve
- 11-17
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 4.000 in. (102mm)
- Product Box Length
- 3.190 in. (81mm)
- Product Box Width
- 3.190 in. (81mm)
- Product Style
- Oil Filters
- Removal Nut
- Yes
- Removal Nut Size
- 1 inch
- Style
- Spin-On

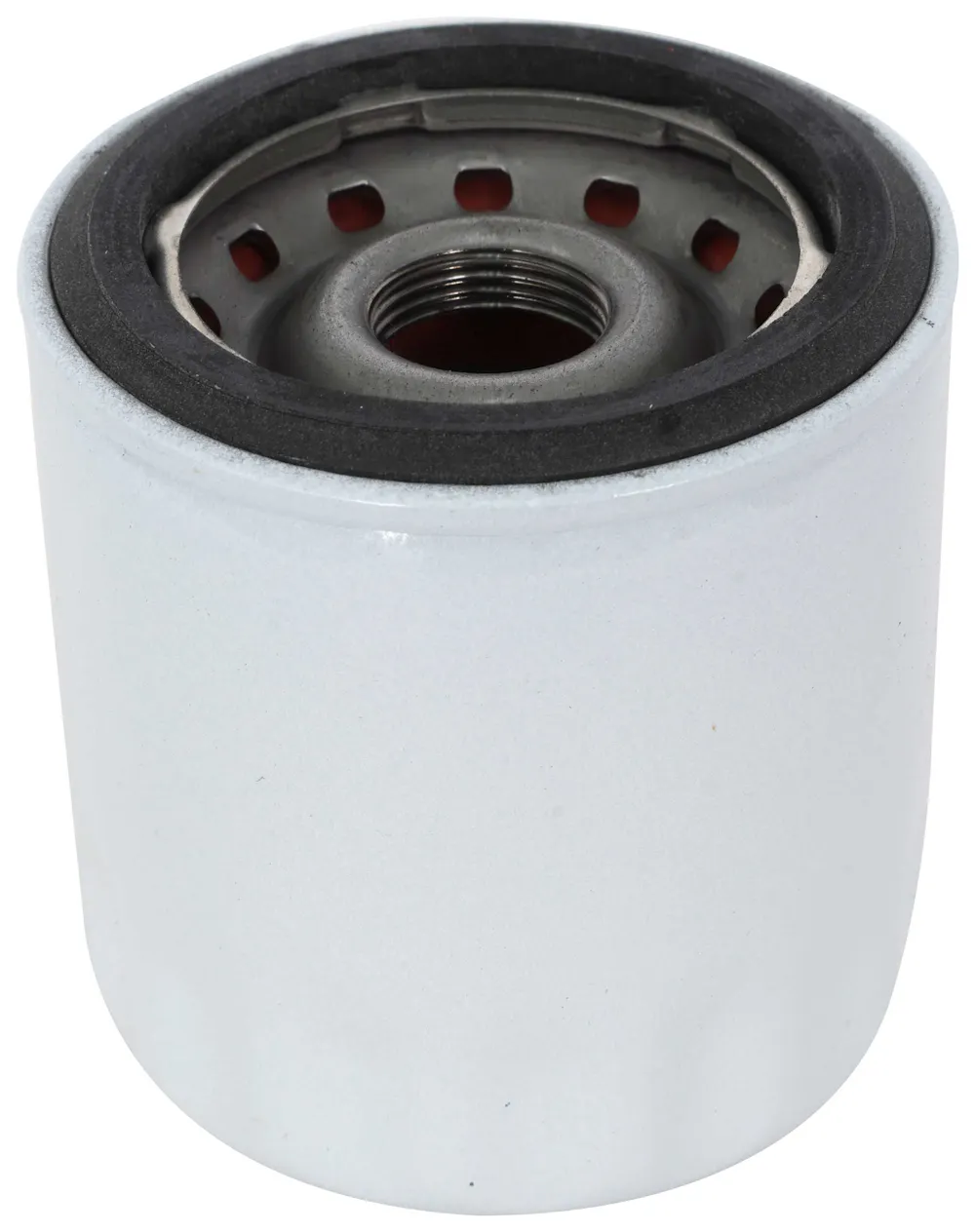

- Thread Size
- M20 x 1.500 in. -6H
- Thread Specification
- M20 X 1.5-6H
- Title
- K&N HP-1004 Oil Filter
- Warranty
- 1 Year Limited
- Weight
- 0.8 lb (0.3 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-1999 Acura CL; 2001-2003 Acura CL; 1997-2002 Acura EL; 1988-2001 Acura Integra; 2001-2002 Acura MDX; 1996-2004 Acura RL; 1996-1999 Acura SLX; 1995-2003 Acura TL; 1992-1994 Acura Vigor; 1993 Asuna Sunfire; 2023-2024 BYD Song Plus; 1997-2005 Chevrolet LUV; 1985-1988 Chevrolet Spectrum; 2001-2005 Chrysler Sebring; 2003-2005 Dodge H100; 1991-1996 Dodge Stealth; 2001-2005 Dodge Stratus; 1994-1995 Ford Aspire; 1988-1993 Ford Festiva; 2019-2023 Genesis G70; 1989 Geo Spectrum; 1990-1993 Geo Storm; 1984-2002 Honda Accord; 1988-2000 Honda Civic; 1993-1997 Honda Civic del Sol; 1997-2001 Honda CR-V; 1988-1991 Honda CRX; 1995-2004 Honda Odyssey; 1994-2002 Honda Passport; 2003 Honda Pilot; 1983-2001 Honda Prelude; 2000-2009 Honda S2000; 1995-2019 Hyundai Accent; 2020-2023 Hyundai Creta; 1992-2026 Hyundai Elantra; 2013-2014 Hyundai Elantra Coupe; 2013-2020 Hyundai Elantra GT; 2022-2026 Hyundai Elantra N; 1986-1994 Hyundai Excel; 2010-2014 Hyundai Genesis Coupe; 2023-2024 Hyundai HB20; 2023-2024 Hyundai HB20S; 2017-2022 Hyundai Ioniq; 2015 Hyundai ix35; 2018-2021 Hyundai Kona; 2022-2023 Hyundai Kona N; 2001-2006 Hyundai Santa Fe; 2010-2012 Hyundai Santa Fe; 2019-2020 Hyundai Santa Fe; 2013-2018 Hyundai Santa Fe Sport; 1991-1995 Hyundai Scoupe; 1989-2019 Hyundai Sonata; 2020 Hyundai Starex; 1997-2001 Hyundai Tiburon; 2003-2008 Hyundai Tiburon; 2005-2021 Hyundai Tucson; 2012-2017 Hyundai Veloster; 2019-2021 Hyundai Veloster; 2019-2022 Hyundai Veloster N; 2001 Hyundai XG300; 2002-2005 Hyundai XG350; 1989-1994 Isuzu Amigo; 1998-2000 Isuzu Amigo; 2002-2004 Isuzu Axiom; 1985-1989 Isuzu I-Mark; 1989-1992 Isuzu Impulse; 1996-1999 Isuzu Oasis; 1988-1995 Isuzu Pickup; 1991-2004 Isuzu Rodeo; 2001-2003 Isuzu Rodeo Sport; 1991-1993 Isuzu Stylus; 1984-2002 Isuzu Trooper; 1999-2001 Isuzu VehiCROSS; 2004-2006 Kia Amanti; 2010-2024 Kia Forte; 2010-2017 Kia Forte Koup; 2012-2018 Kia Forte5; 2020-2024 Kia Forte5; 2024-2026 Kia K3; 2001-2010 Kia Magentis; 2017-2026 Kia Niro; ...
