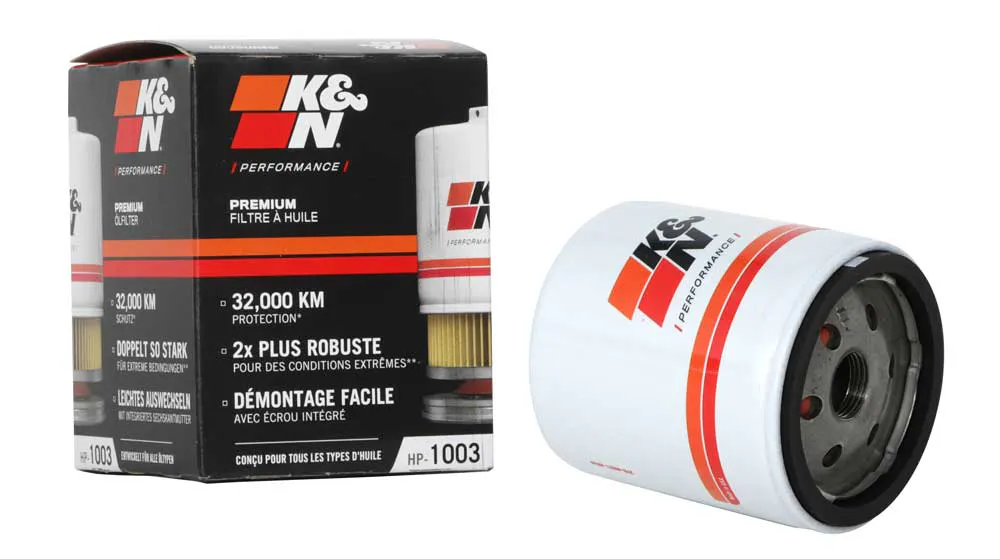

K&N · HP-1003
Part #: HP-1003
UPC: 024844034936
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.

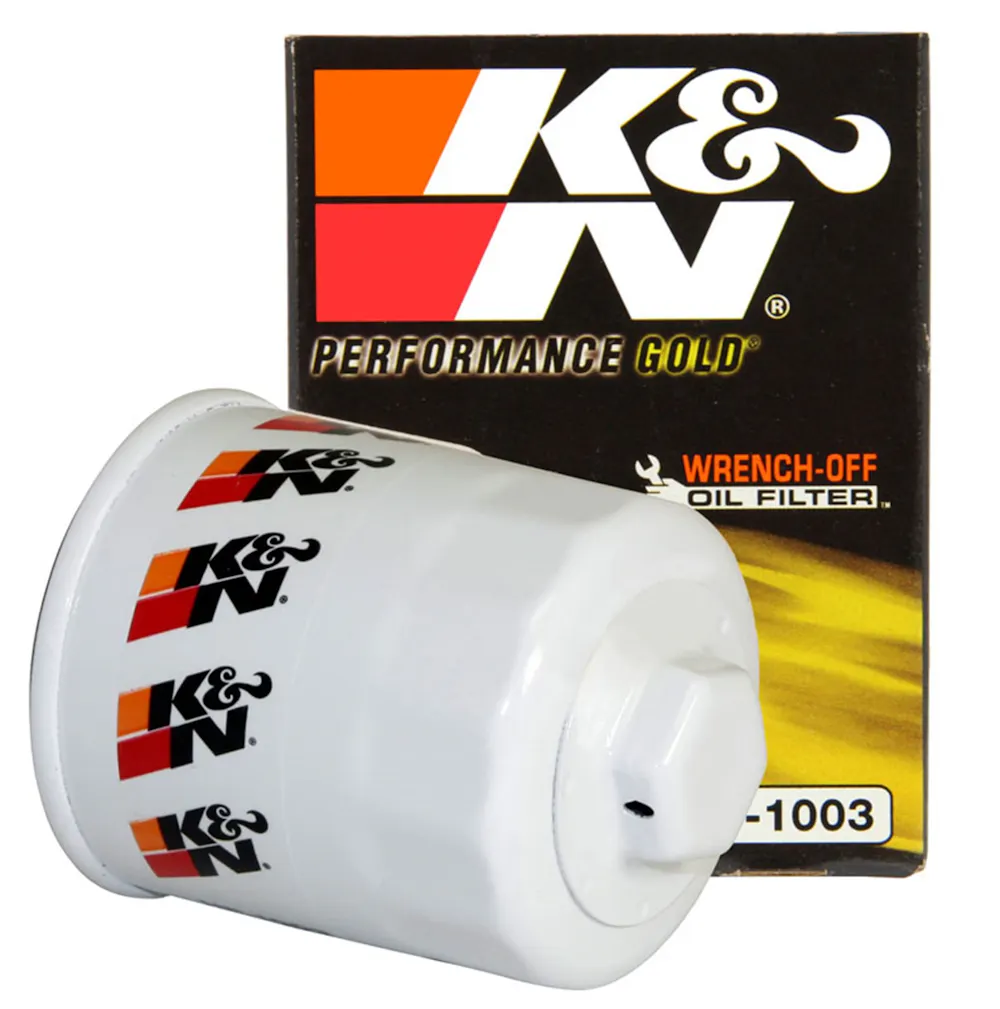

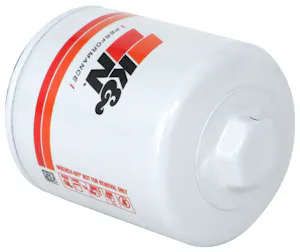

Description: K&N Wrench-Off oil filters are engineered to help ensure high flow rates and exceptional protection from contaminants. Each filter comes with a hex nut welded to the top of the canister, allowing for easy removal with a standard wrench.
Description:
Description
K&N premium oil filters are meticulously engineered to offer outstanding filtration and engine protection. Designed to operate with all synthetic, conventional, and blended motor oils, K&N's pleated synthetic-blend filtration media helps to shield your engine from contaminants and ensure a consistent flow of oil. The heavy-duty canister is engineered to be exceptionally durable, and a one-inch welded hex nut can be used for quick and easy filter removal. Each filter is specifically designed to withstand the service intervals recommended by vehicle manufacturers, and is protected by the K&N 1-Year Limited Warranty.
Features & benefits
- Designed to allow high flow rates and a consistent flow of oil to your engine
- Pleated synthetic-blend filtration media removes most harmful contaminants

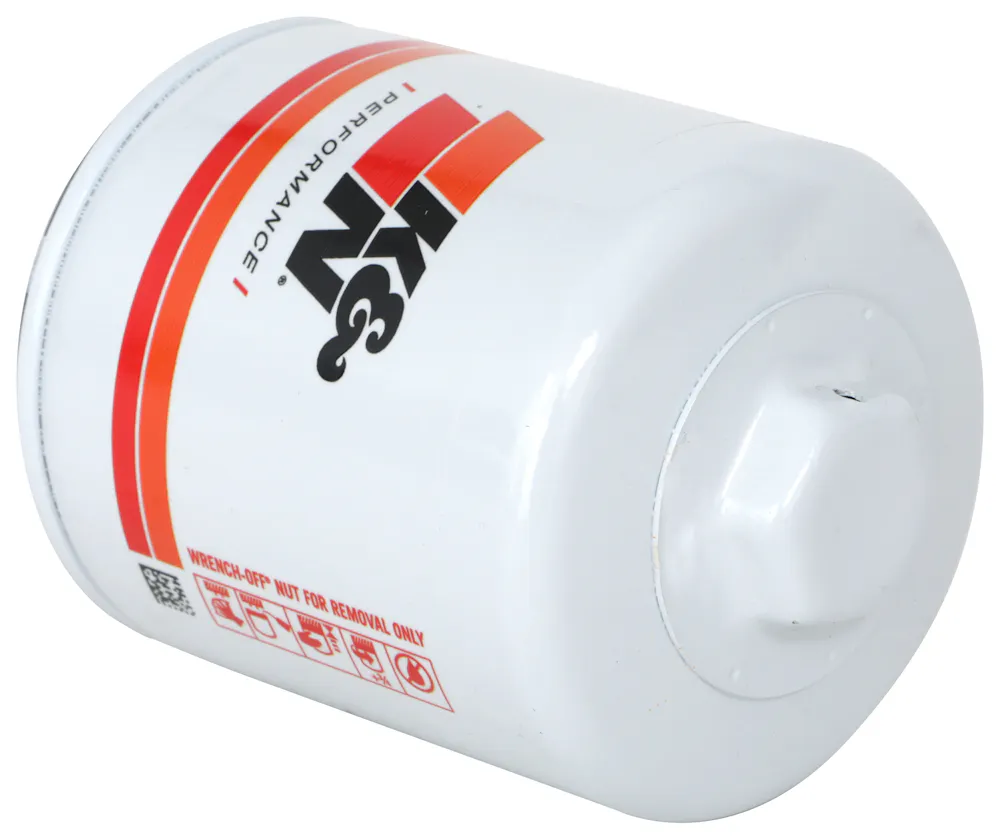

- Fast and easy Wrench-Off® removal using the welded one-inch hex nut
- High capacity to withstand the service intervals recommended by vehicle manufacturers
- Heavy-duty canister for outstanding durability
- Laboratory tested to ensure excellent capacity, efficiency, and mechanical strength
- Designed to operate with all synthetic, conventional, and blended motor oils
- 1-Year Limited Warranty
Application summary
| Year | Make / model |
|---|---|
| 2020-2021 | BAIC M50S |
| 2022-2024 | Changan Alsvin |
| 2022-2024 | Changan CS35 |
| 2011-2012 | Chevrolet Matiz |
| 1985-1988 | Chevrolet Nova |
| 1998-2002 | Chevrolet Prizm |
| 1999-2008 | Chevrolet Tracker |
| 2023 | Chirey Tiggo 8PRO |
| 2023-2024 | Chirey Tiggo 8PRO Max |
| 1988-1992 | Daihatsu Charade |
| 1990-1992 | Daihatsu Rocky |
| 1989-1997 | Geo Prizm |
| 1991-1996 | INFINITI G20 |
| 2021-2025 | Lexus ES250 |
| 2019-2025 | Lexus ES300h |
| 2024-2026 | Lexus GX550 |
| 2010-2012 | Lexus HS250h |
| 2018-2025 | Lexus LS500 |
| 2022-2026 | Lexus LX600 |
| 2025-2026 | Lexus LX700h |
| 2022-2025 | Lexus NX250 |
| 2022-2026 | Lexus NX350 |
| 2022-2026 | Lexus NX350h |
| 2022-2026 | Lexus NX450h+ |
| 2023-2026 | Lexus RX350 |
| 2023-2026 | Lexus RX350h |
| 2024-2026 | Lexus RX450h+ |
| 2023-2026 | Lexus RX500h |
| 2024-2026 | Lexus TX350 |
| 2024-2026 | Lexus TX500h |
| 2024-2025 | Lexus TX550h+ |
| 2019-2022 | Lexus UX200 |
| 2019-2024 | Lexus UX250h |
| 2025-2026 | Lexus UX300h |
| 2005-2011 | Lotus Elise |
| 2006-2010 | Lotus Exige |
| 2025-2026 | Mazda CX-50 |
| 2005-2007 | Nissan Micra |
| 1991-1993 | Nissan NX |
| 1991-1994 | Nissan Sentra |
| 2004-2010 | Pontiac Matiz |
| 2003-2010 | Pontiac Vibe |
| 2005-2010 | Scion tC |
| 2004-2006 | Scion xA |
| 2004-2006 | Scion xB |
| 2008-2015 | Scion xB |
| 2002-2007 | Suzuki Aerio |
| 2021-2024 | Suzuki Baleno |
| 2020-2025 | Suzuki Ertiga |
| 1999-2002 | Suzuki Esteem |
| 2024-2025 | Suzuki Fronx |
| 2009-2016 | Suzuki Grand Vitara |
| 2024 | Suzuki Grand Vitara |
| 2021-2025 | Suzuki Jimny |
| 2010-2014 | Suzuki Kizashi |
| 2016 | Suzuki Kizashi |
| 2014-2016 | Suzuki S-Cross |
| 2020-2024 | Suzuki S-Cross |
| 1996-1998 | Suzuki Sidekick |
| 2001 | Suzuki Swift |
| 2012-2016 | Suzuki Swift |
| 2020-2024 | Suzuki Swift |
| 2007-2014 | Suzuki SX4 |
| 2012 | Suzuki SX4 Crossover |
| 1999-2003 | Suzuki Vitara |
| 2020-2023 | Suzuki Vitara |
| 2025-2026 | Toyota 4Runner |
| 2019-2022 | Toyota Avalon |
| 2007-2015 | Toyota Avanza |
| 2020-2025 | Toyota Avanza |
| 2018-2022 | Toyota C-HR |
| 1983-2011 | Toyota Camry |
| 2018-2026 | Toyota Camry |
| 1986-2005 | Toyota Celica |
| 1983-2012 | Toyota Corolla |
| 2016-2026 | Toyota Corolla |
| 2022-2026 | Toyota Corolla Cross |
| 2017-2018 | Toyota Corolla iM |
| 2023-2026 | Toyota Crown |
| 2025-2026 | Toyota Crown Signia |
| 2000-2005 | Toyota Echo |
Specifications
- GTIN
- 10024844034936
- Weight
- 0.57 lb
- Height
- 3.63 in
- Length
- 2.88 in
- Width
- 2.81 in
- EO
- Legal US
- Life cycle
- Available to Order
- Alt. part number
- HP-1003
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- AAM Standard Pack
- 12
- Additional O-Ring Included
- No
- Alternate Part Number
- HP-1003
- Anti Drain Back Valve
- Yes
- Anti-Drain Back Valve
- Yes
- Bypass Valve
- Yes
- California Proposition 65
- No
- Filter Material
- High Flow Premium Media
- Gasket Material
- High Temperature Nitrile
- Height
- 3.313 in (84 mm)
- Height (in.)
- 3.313 in. (84 mm)
- Item Height
- 3.313 in. (84mm)
- Item Weight
- 0.600 lbs. (0.3 kg)
- Outside Diameter
- 2.688 in (68 mm)
- PSI Relief Valve
- 11-17
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 3.630 in. (92mm)
- Product Box Length
- 2.880 in. (73mm)
- Product Box Width
- 2.810 in. (71 mm)
- Product Style
- Oil Filters
- Removal Nut
- Yes
- Removal Nut Size
- 1 inch
- Style
- Spin-On
- Thread Size
- .750 in. - 16
- Thread Specification
- 3/4 In. - 16
- Title
- K&N HP-1003 Oil Filter
- Warranty
- 1 Year Limited
- Weight
- 0.6 lb (0.3 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2020-2021 BAIC M50S; 2022-2024 Changan Alsvin; 2022-2024 Changan CS35; 2011-2012 Chevrolet Matiz; 1985-1988 Chevrolet Nova; 1998-2002 Chevrolet Prizm; 1999-2008 Chevrolet Tracker; 2023 Chirey Tiggo 8PRO; 2023-2024 Chirey Tiggo 8PRO Max; 1988-1992 Daihatsu Charade; 1990-1992 Daihatsu Rocky; 1989-1997 Geo Prizm; 1991-1996 INFINITI G20; 2021-2025 Lexus ES250; 2019-2025 Lexus ES300h; 2024-2026 Lexus GX550; 2010-2012 Lexus HS250h; 2018-2025 Lexus LS500; 2022-2026 Lexus LX600; 2025-2026 Lexus LX700h; 2022-2025 Lexus NX250; 2022-2026 Lexus NX350; 2022-2026 Lexus NX350h; 2022-2026 Lexus NX450h+; 2023-2026 Lexus RX350; 2023-2026 Lexus RX350h; 2024-2026 Lexus RX450h+; 2023-2026 Lexus RX500h; 2024-2026 Lexus TX350; 2024-2026 Lexus TX500h; 2024-2025 Lexus TX550h+; 2019-2022 Lexus UX200; 2019-2024 Lexus UX250h; 2025-2026 Lexus UX300h; 2005-2011 Lotus Elise; 2006-2010 Lotus Exige; 2025-2026 Mazda CX-50; 2005-2007 Nissan Micra; 1991-1993 Nissan NX; 1991-1994 Nissan Sentra; 2004-2010 Pontiac Matiz; 2003-2010 Pontiac Vibe; 2005-2010 Scion tC; 2004-2006 Scion xA; 2004-2006 Scion xB; 2008-2015 Scion xB; 2002-2007 Suzuki Aerio; 2021-2024 Suzuki Baleno; 2020-2025 Suzuki Ertiga; 1999-2002 Suzuki Esteem; 2024-2025 Suzuki Fronx; 2009-2016 Suzuki Grand Vitara; 2024 Suzuki Grand Vitara; 2021-2025 Suzuki Jimny; 2010-2014 Suzuki Kizashi; 2016 Suzuki Kizashi; 2014-2016 Suzuki S-Cross; 2020-2024 Suzuki S-Cross; 1996-1998 Suzuki Sidekick; 2001 Suzuki Swift; 2012-2016 Suzuki Swift; 2020-2024 Suzuki Swift; 2007-2014 Suzuki SX4; 2012 Suzuki SX4 Crossover; 1999-2003 Suzuki Vitara; 2020-2023 Suzuki Vitara; 2025-2026 Toyota 4Runner; 2019-2022 Toyota Avalon; 2007-2015 Toyota Avanza; 2020-2025 Toyota Avanza; 2018-2022 Toyota C-HR; 1983-2011 Toyota Camry; 2018-2026 Toyota Camry; 1986-2005 Toyota Celica; 1983-2012 Toyota Corolla; 2016-2026 Toyota Corolla; 2022-2026 Toyota Corolla Cross; 2017-2018 Toyota Corolla iM; 2023-2026 Toyota Crown; 2025-2026 Toyota Crown Signia; 2000-2005 Toyota Echo; ...
