Description: Performance Air Intake System; PERF. INTAKE KIT; TOYOTA TUNDRA; V6-4.0L; 05-06

Description:

Description

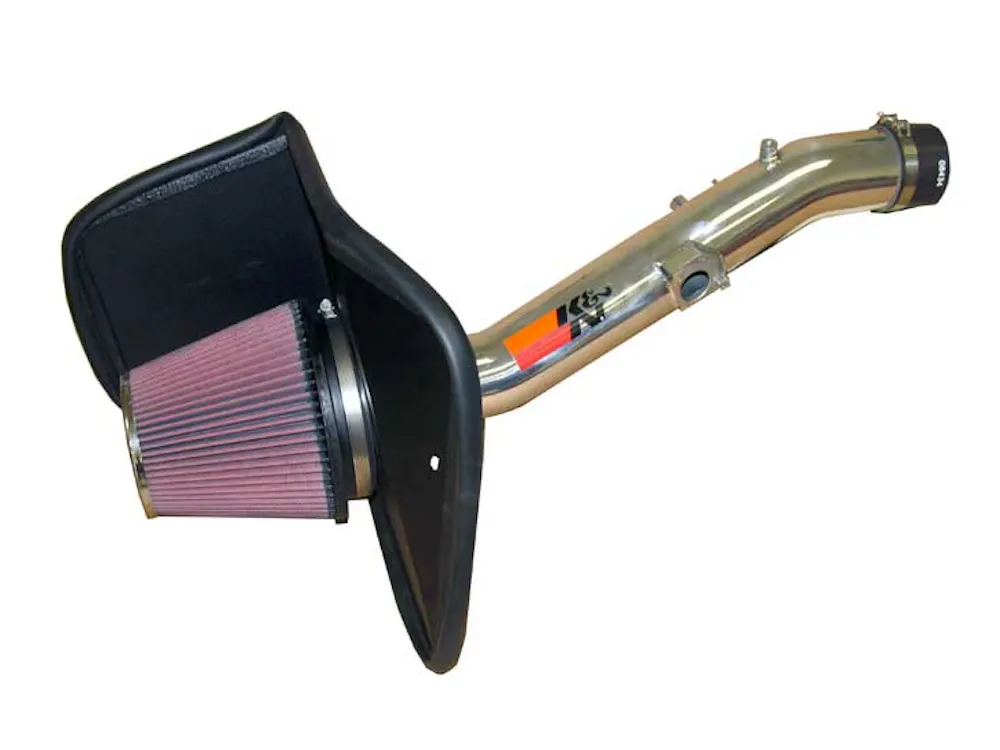

The K&N 77-9028KP high-flow performance air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Toyota Tundra models. The restrictive factory air filter and air intake housing on your vehicle are replaced by this K&N air intake system which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. The improved air flow allows your engine to inhale a larger amount of air than it would from the stock air intake. More air means more usable power and acceleration throughout your engine's RPM range. The 77-9028KP air intake comes with a chrome topped K&N high-flow air filter and a heat shield that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive chrome-like finish that's made to last and it accommodates the factory mass air sensor, crank case vent hose and a replacement silicone fuel pressure regulator hose. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a screwdriver, ratchet set and several wrenches. Some K&N 77 series air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.

Features & benefits

  • Guarantee To Increase Horsepower
  • Designed To Improve Throttle Response And Engine Sound
  • Free Flowing Aluminum Tube
  • Replaces Entire Factory Air Intake System
  • Lasts Up To 100000 Miles Before Service Is Required
  • Easy To Install Usually In 90 Minutes or Less
  • Washable And Reusable Lifetime Air Filter
  • K&N Million Mile Limited Warranty

Information

Double Air Flow; Adds Up To 15 Extra Horsepower; Keeps Dirt On Outside; Additional Filtering Barrier; Reusable/Washable; Long Lasting Performance; Biodegradable Cleaning Product; Made From Cotton/Screen Wires

Application summary

Year Make / model
2005-2006 Toyota Tundra

Specifications

GTIN
00024844125071
Weight
12.4 lb
Height
12.5 in
Length
18.25 in
Width
18.25 in
EO
Not in CA
Life cycle
Discontinued
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
6.500 in. (165mm)
Air Filter Large End Diameter
7.500 in. (191mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
6.000 in. (152mm)
Air Filter Oulet Width
6.000 in. (152mm)
Air Filter Outlet Length
6.000 in. (152mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
6.000 in. (152mm)
Air Filter Washable
Yes
Alternate Replacement Filter
RF-1042
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
5
Clamp Style
Regular
Clamps Included
5
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
2
Estimated Horse Power Gain
8.33 HP @ 5159 RPM
Estimated Horsepower Gain
8.33 HP @ 5159 RPM
Filter Color
Red
Filter Material
Cotton Gauze
Horse Power Increase
8 HP
Intake Pipe Color
Polished
Intake Pipe Color / Finish
Polished
Intake Pipe Inlet Length
21.000 in. (533mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
3.000 in. (76mm)
Intake Pipe Material
Aluminum
Intake Pipe Outlet Length
21.000 in. (533mm)
Intake Pipe Outlet Shape
Round
Intake Pipe Outlet Width
3.000 in. (76mm)
Item Weight
12.400 lbs. (5.6 kg)
Mass Air Flow Sensor Adapter Included
Mass Air Flow Sensor Adapter Included When Required
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
12.5 in (318 mm)
Product Box Length
18.25 in (464 mm)
Product Box Width
18.25 in (464 mm)
Product Style
77 Series Kits
RPM
5159
Replacement Filter
RF-1042
Street Legal
No
Street Legal In All US States
No
TUV Approved (Europe)
No
Title
K&N 77-9028KP Performance Air Intake System
Warranty
1,000,000 Miles/10 Year
Weight
12.4 lb (5.6 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2005-2006 Toyota Tundra
