K&N · 69-9501TP

Part #: 69-9501TP
UPC: 024844108081

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; K&N's easy to install Typhoon cold air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tubes come in an attractive chrome-like finish.

Description:

This part number superseded 69-9501TR.

Description

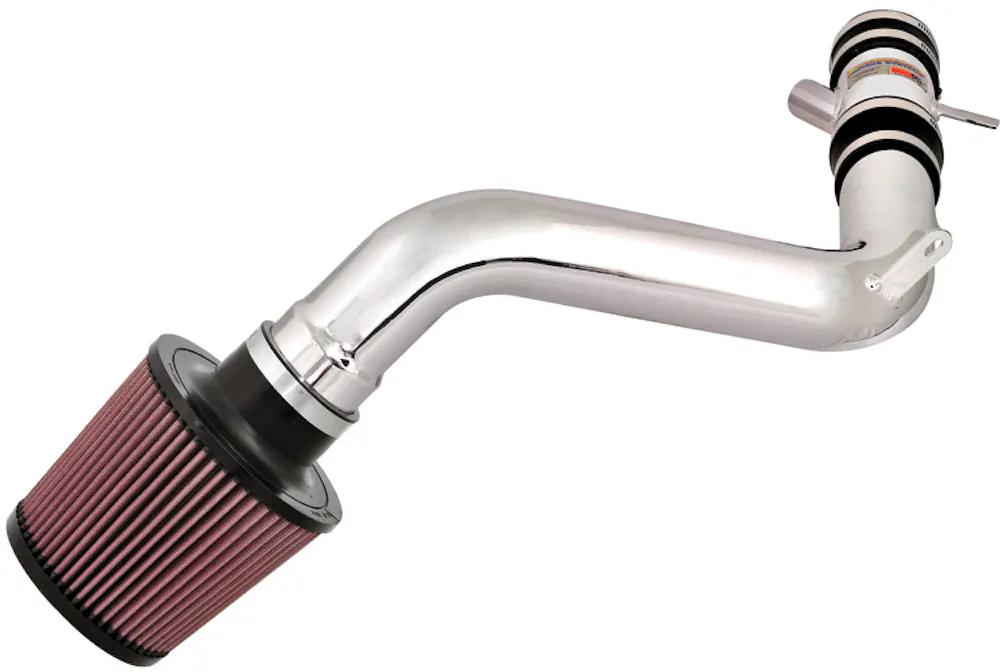

The K&N 69-9501TP Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-9501TP cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing cooler outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points.

Features & benefits

  • Guaranteed To Increase Horsepower
  • Designed To Improve Throttle Response And Engine Sound
  • Free Flowing Aluminum Tube
  • Easy To Install Usually In 90 Minutes or Less
  • Lasts Up To 100000 Miles Before Service Is Required
  • Replaces Entire Factory Air Intake System
  • Washable And Reusable Lifetime Air Filter
  • K&N Million Mile Limited Warranty

Information

Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Increase HP And Acceleration; Can Be Configured As Cold Air Or Short Ram Intake; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty

Application summary

Year Make / model
2001-2005 Seat Leon
2001-2002 Seat Toledo
2000-2005 Volkswagen Golf
2000-2004 Volkswagen Jetta

Specifications

GTIN
00024844108081
Weight
6.24 lb
Height
8.5 in
Length
18.25 in
Width
14.5 in
EO
Legal US
Life cycle
Discontinued
Alt. part number
69-9501TP
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
5.500 in. (140mm)
Air Filter Large End Diameter
6.000 in. (152mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
2.750 in. (70mm)
Air Filter Oulet Width
2.750 in. (70mm)
Air Filter Outlet Length
2.750 in. (70mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
2.750 in. (70mm)
Air Filter Washable
Yes
Alternate Part Number
69-9501TP
CARB EO Number
D-269-38
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
7
Clamp Style
Regular
Clamps Included
7
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
3
Estimated Horse Power Gain
10.03 HP @ 5079 RPM
Estimated Horsepower Gain
10.03 HP @ 5079 RPM
Estimated Torque Gain
10 lbft
Filter Color
Red
Filter Material
Cotton Gauze
Flange Angle
0 degrees
Flange Offset
0 in (0 mm)
Flange Type
Centered
Horse Power Increase
10 HP
Intake Pipe Color
Polished
Intake Pipe Color / Finish
Polished
Intake Pipe Inlet Length
4.750 in. (121mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
2.750 in. (70mm)
Intake Pipe Material
Aluminum
Intake Pipe Outlet Length
23.000 in. (584mm)
Intake Pipe Outlet Shape
Round
Intake Pipe Outlet Width
2.500 in. (64mm)
Intake Pipe Ports
All intake tube ports needed for the specified applications are included
Item Weight
6.200 lbs. (2.8 kg)
Mass Air Flow Sensor Adapter Included
No
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
8.5 in (216 mm)
Product Box Length
18.25 in (464 mm)
Product Box Width
14.5 in (368 mm)
Product Style
69 Series Typhoon Kits
RPM
5079
Replacement Filter
RU-4960
Street Legal In All US States
Not legal for sale or use in California on any pollution controlled motor vehicle. NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com.
System Type
Complete Cold-Air Intake System
TUV Approved (Europe)
No
Title
K&N 69-9501TP Performance Air Intake System
Warranty
No-Hassle Lifetime Limited
Weight
6.2 lb (2.8 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2001-2005 Seat Leon; 2001-2002 Seat Toledo; 2000-2005 Volkswagen Golf; 2000-2004 Volkswagen Jetta
