K&N · 69-8613TS
Part #: 69-8613TS
UPC: 024844200815
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

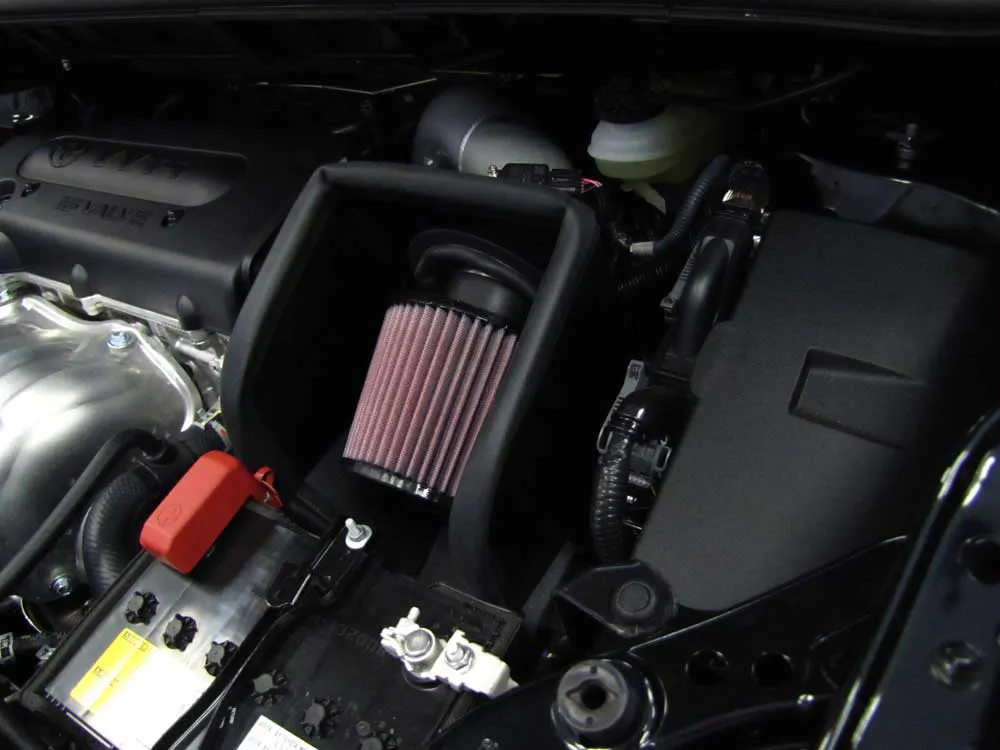

Description: Performance Air Intake System; K&N's mandrel-bent aluminum cold air intake systems are guaranteed to provide an increase in horsepower and torque, and are protected by the K&N No-Hassle Lifetime Limited Warranty.
Description:
Description
Gain a guaranteed increase in horsepower and torque with K&N cold air intake system featuring madrel-bent aluminum intake tube. Each system is paired with a washable, reusable High-Flow Air Filter featuring oiled cotton filter media.
Features & benefits
- Guaranteed to increase horsepower and torque.
- Mandrel-bent aluminum intake tube paired with oversized oiled cotton air filter.
- Engineered to provide high airflow and exceptional filtration.
- Replaces factory air filter and intake tube.
- Filter only requires cleaning every 100,000 miles under normal highway driving conditions.
- Typical installation can be completed in 60 minutes or less with simple hand tools.
- No-Hassle Lifetime Limited Warranty.
- Will not void vehicle warranty.
Information
Associated products: RX-4990DK Air Filter Wrap, RU-3570 Universal Clamp-On Air Filter, 99-5000 Filter Care Service Kit Aerosol
Application summary
| Year | Make / model |
|---|---|
| 2008-2015 | Scion xB |
| 2009-2013 | Toyota Matrix |
Specifications
- GTIN
- 00024844200815
- Weight
- 10.84 lb
- Height
- 12.25 in
- Length
- 20.25 in
- Width
- 12.25 in
- EO
- Not in CA
- Life cycle
- Available to Order
- Alt. part number
- 69-8613TS
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- AAM Standard Pack
- 1
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Height
- 5.000 in. (127mm)
- Air Filter Large End Diameter
- 6.000 in. (152mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Oulet Length
- 3.000 in. (76mm)
- Air Filter Oulet Width
- 3.000 in. (76mm)
- Air Filter Outlet Length
- 3.000 in. (76mm)
- Air Filter Outlet Shape
- Round
- Air Filter Outlet Width
- 3.000 in. (76mm)
- Air Filter Washable
- Yes
- Alternate Part Number
- 69-8613TS
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- California Restricted
- Not legal for sale or use in California
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 3
- Clamp Style
- Regular
- Clamps Included
- 3
- Coupler Color
- Black
- Coupler Color/Finish
- Black
- Couplers Included
- 1
- Estimated Horse Power Gain
- 9.06 HP @ 5026 RPM
- Estimated Horsepower Gain
- 9.06 HP @ 5026 RPM
- Estimated Torque Gain
- 10 lbft
- Filter Color
- Red
- Filter Material
- Cotton Gauze
- Flange Angle
- 0 degrees
- Flange Offset
- 0 in (0 mm)
- Flange Type
- Centered
- Horse Power Increase
- 9 HP
- Intake Pipe Color
- Silver
- Intake Pipe Color / Finish
- Silver
- Intake Pipe Inlet Length
- 17.500 in. (445mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 3.000 in. (76mm)
- Intake Pipe Material
- Aluminum
- Intake Pipe Outlet Length
- 17.500 in. (445mm)
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Outlet Width
- 3.000 in. (76mm)
- Intake Pipe Ports
- All intake tube ports needed for the specified applications are included
- Item Weight
- 10.800 lbs. (4.9 kg)
- Mass Air Flow Sensor Adapter Included
- Yes
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 12.25 in (311 mm)
- Product Box Length
- 20.25 in (514 mm)
- Product Box Width
- 12.25 in (311 mm)
- Product Style
- 69 Series Typhoon Kits
- RPM
- 5026
- Replacement Filter
- RU-3570
- Retail Packaging
- No
- Street Legal
- No
- Street Legal In All US States
- Not legal for sale or use in California on any pollution controlled motor vehicle.
- System Type
- Cold-Air Intake System
- TUV Approved (Europe)
- No
- Title
- K&N 69-8613TS Performance Air Intake System
- Warranty
- No-Hassle Lifetime Limited
- Weight
- 10.8 lb (4.9 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2008-2015 Scion xB; 2009-2013 Toyota Matrix
