K&N · 69-8607TS

Part #: 69-8607TS
UPC: 024844109804

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; K&N's easy-to-install Typhoon cold-air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tubes come in a silver powder coat finish.

Description:

Description

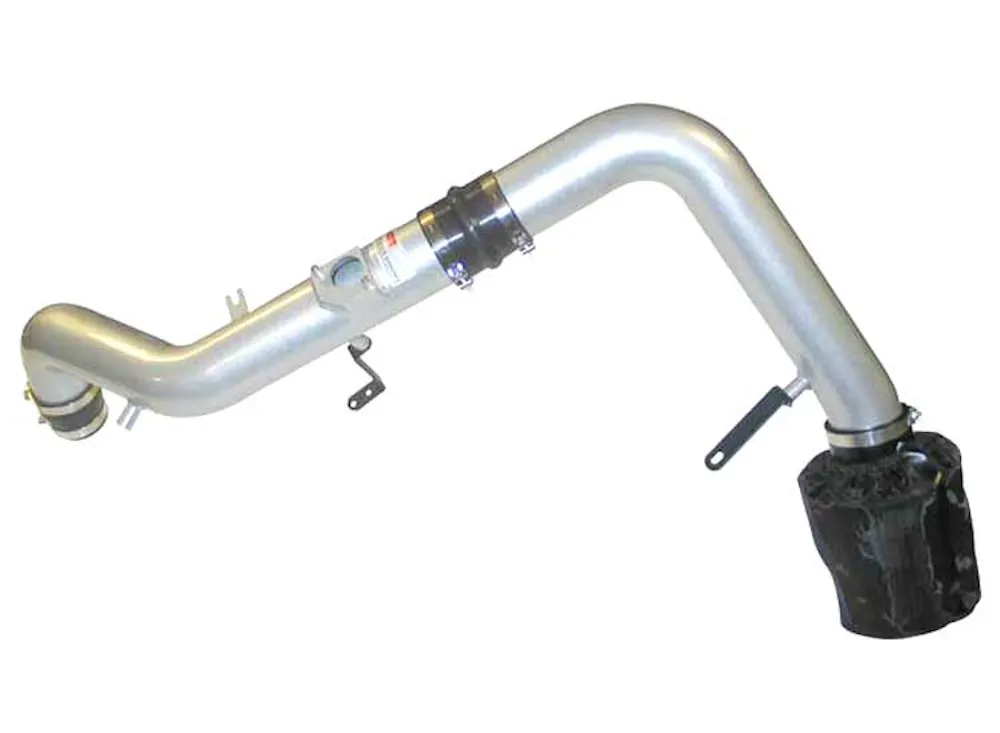

The K&N 69-8607TS Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Scion TC models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in outside air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-8607TS cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less.

Features & benefits

  • Guaranteed to increase horsepower

Information

Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty

Application summary

Year Make / model
2005-2006 Scion tC

Specifications

GTIN
00024844109804
Weight
7.9 lb
Height
14.5 in
Length
24.1 in
Width
15.5 in
EO
Not in CA
Life cycle
Discontinued
Alt. part number
69-8607TS
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
5.500 in. (140mm)
Air Filter Large End Diameter
6.000 in. (152mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
2.750 in. (70mm)
Air Filter Oulet Width
2.750 in. (70mm)
Air Filter Outlet Length
2.750 in. (70mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
2.750 in. (70mm)
Air Filter Washable
Yes
Alternate Part Number
69-8607TS
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
5
Clamp Style
Regular
Clamps Included
5
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
2
Estimated Horse Power Gain
6.02 HP @ 5412 RPM
Estimated Horsepower Gain
6.02 HP @ 5412 RPM
Estimated Torque Gain
6 lbft
Filter Color
Red
Filter Material
Cotton Gauze
Horse Power Increase
6 HP
Intake Pipe Color
Silver
Intake Pipe Color / Finish
Silver
Intake Pipe Inlet Length
26.000 in. (660mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
2.750 in. (70mm)
Intake Pipe Material
Aluminum
Intake Pipe Outlet Length
23.500 in. (597mm)
Intake Pipe Outlet Shape
Round
Intake Pipe Outlet Width
2.750 in. (70mm)
Intake Pipe Ports
All intake tube ports needed for the specified applications are included
Item Weight
7.900 lbs. (3.6 kg)
Mass Air Flow Sensor Adapter Included
Yes
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
14.5 in (368 mm)
Product Box Length
24.1 in (612 mm)
Product Box Width
15.5 in (394 mm)
Product Style
69 Series Typhoon Kits
RPM
5412
Replacement Filter
RU-4960
Street Legal
No
Street Legal In All US States
Not legal for sale or use in California on any pollution controlled motor vehicle.
System Type
Cold-Air Intake System
TUV Approved (Europe)
No
Title
K&N 69-8607TS Performance Air Intake System
Warranty
No-Hassle Lifetime Limited
Weight
7.9 lb (3.6 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2005-2006 Scion tC
