K&N · 69-8606TB
Part #: 69-8606TB
UPC: 024844105523
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Description: Performance Air Intake System; K&N's easy-to-install Typhoon cold-air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tube comes in a blue powder coat finish.
Description:
This part number superseded 69-8606TR.
Description

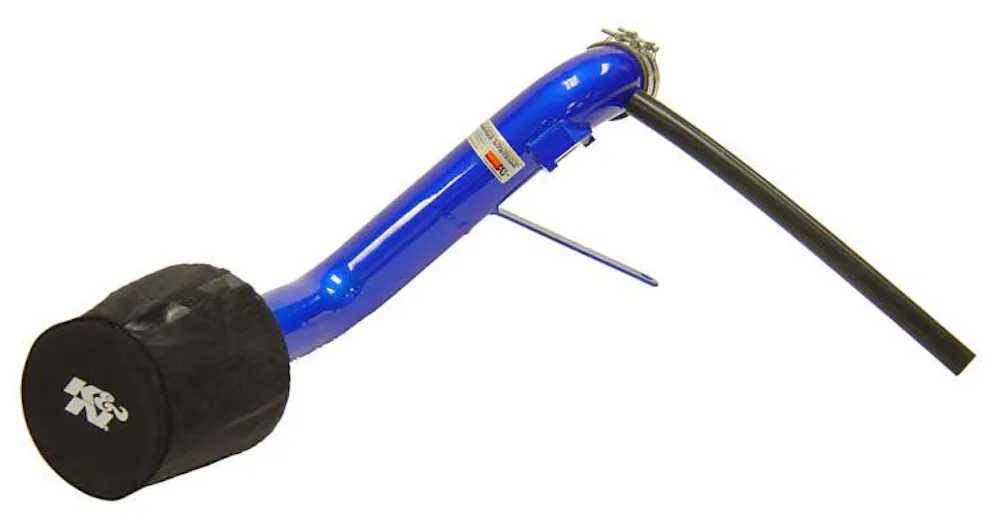

The K&N 69-8606TB Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Scion XA and Toyota Yaris models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in outside air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-8606TB cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing outside air through free-flowing aluminum tubing delivering high volumes of clean air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less.
Features & benefits
- Guaranteed To Increase Horsepower
- Designed To Improve Throttle Response And Engine Sound
- Free Flowing Aluminum Tube
- Easy To Install Usually In 90 Minutes or Less
- Lasts Up To 100000 Miles Before Service Is Required
- Replaces Entire Factory Air Intake System
- Washable And Reusable Lifetime Air Filter
- K&N Million Mile Limited Warranty
Information
Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty
Application summary
| Year | Make / model |
|---|---|
| 2004-2006 | Scion xA |
Specifications
- GTIN
- 00024844105523
- Weight
- 5.95 lb
- Height
- 8.5 in
- Length
- 18.25 in
- Width
- 14.5 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- 69-8606TB
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Height
- 5.500 in. (140mm)
- Air Filter Large End Diameter
- 6.000 in. (152mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Oulet Length
- 2.500 in. (64mm)
- Air Filter Oulet Width
- 2.500 in. (64mm)
- Air Filter Outlet Length
- 2.500 in. (64mm)
- Air Filter Outlet Shape
- Round
- Air Filter Outlet Width
- 2.500 in. (64mm)
- Air Filter Washable
- Yes
- Alternate Part Number
- 69-8606TB
- CARB EO Number
- D-269-38
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 4
- Clamp Style
- Regular
- Clamps Included
- 4
- Coupler Color
- Black
- Coupler Color/Finish
- Black
- Couplers Included
- 1
- Estimated Horse Power Gain
- 4.36 HP @ 4925 RPM
- Estimated Horsepower Gain
- 4.36 HP @ 4925 RPM
- Estimated Torque Gain
- 5 lbft
- Filter Color
- Red
- Filter Material
- Cotton Gauze
- Flange Angle
- 0 degrees
- Flange Offset
- 0 in (0 mm)
- Flange Type
- Centered
- Horse Power Increase
- 4 HP
- Intake Pipe Color
- Blue
- Intake Pipe Color / Finish
- Polished
- Intake Pipe Inlet Length
- 20.750 in. (527mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 2.500 in. (64mm)
- Intake Pipe Material
- Aluminum
- Intake Pipe Outlet Length
- 20.750 in. (527mm)
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Outlet Width
- 2.500 in. (64mm)
- Intake Pipe Ports
- All intake tube ports needed for the specified applications are included
- Item Weight
- 6.000 lbs. (2.7 kg)
- Mass Air Flow Sensor Adapter Included
- Yes
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 8.5 in (216 mm)
- Product Box Length
- 18.25 in (464 mm)
- Product Box Width
- 14.5 in (368 mm)
- Product Style
- 69 Series Typhoon Kits
- RPM
- 4925
- Replacement Filter
- RU-4950
- Street Legal In All US States
- Not legal for sale or use in California on any pollution controlled motor vehicle. NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com.
- System Type
- Cold-Air Intake System
- TUV Approved (Europe)
- No
- Title
- K&N 69-8606TB Performance Air Intake System
- Warranty
- No-Hassle Lifetime Limited
- Weight
- 6 lb (2.7 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2006 Scion xA
