K&N · 69-7070TP

Part #: 69-7070TP
UPC: 024844102201

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; K&N's easy-to-install Typhoon cold-air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum tubes come in a silver powder coat finish.

Description:

This part number superseded 69-7070TR.

Description

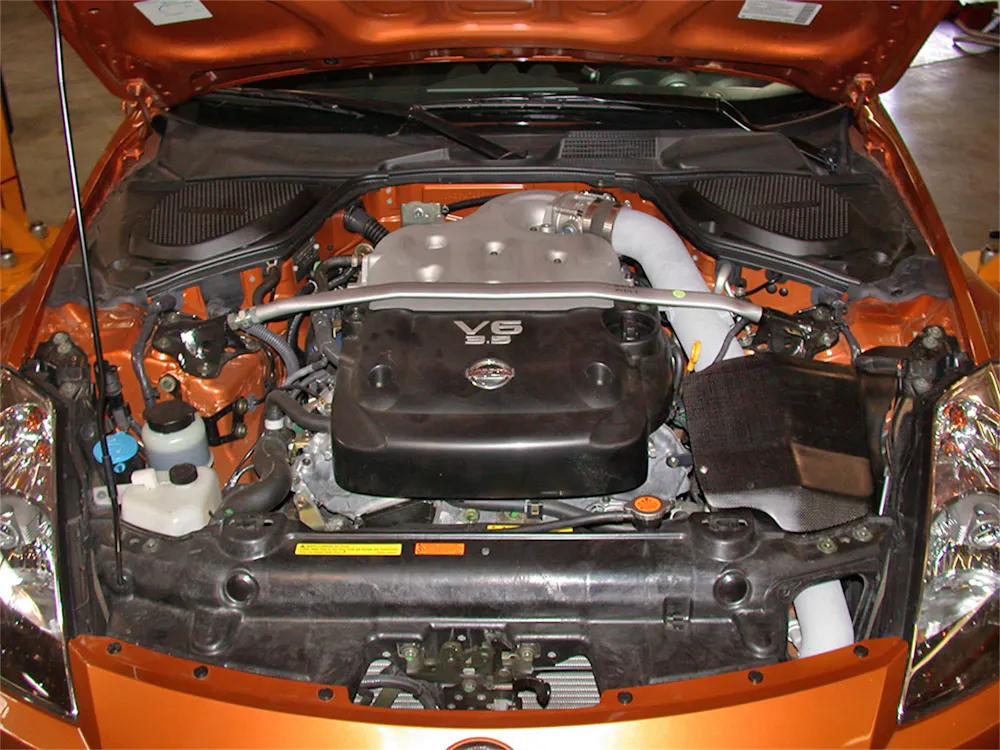

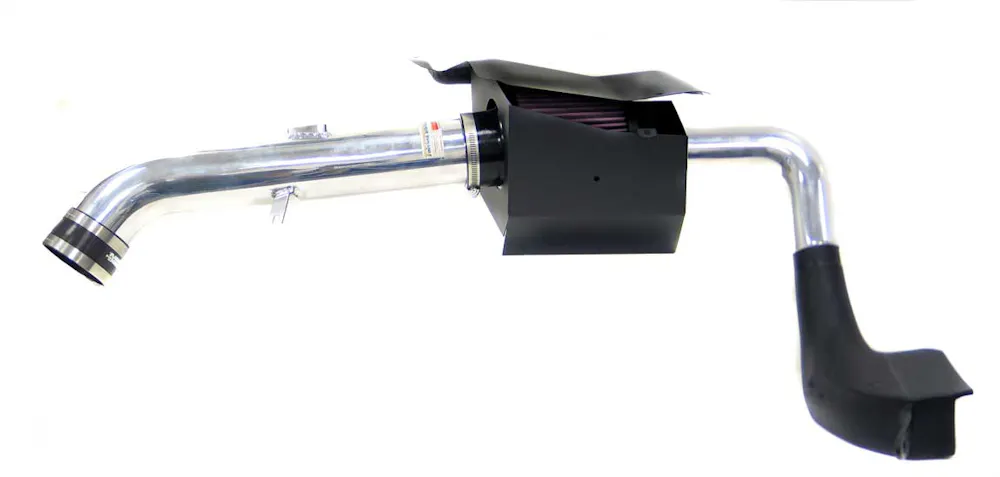

The K&N 69-7070TP Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Nissan 300Z 3.5 Liter V6 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-7070TP cold-air intake consists of a roto-molded plastic intake scoop that mounts behind the 350Z's front fascia directing cooler outside air through free-flowing aluminum tubing into the K&N carbon fiber topped air box. Inside the air box is a black rubber topped K&N high-flow air filter connecting to a mandrel-bent, 3 aluminum induction tube that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The intake tubes have an attractive silver powder-coat finish that's made to last. The cold-air intake system accommodates the factory mass air sensor and crank case vent hose. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. The tools needed for installation are a screwdriver, pliers, ratchet set and several wrenches. ach vehicle and air intake.

Features & benefits

  • Designed to improve throttle response and engine sound
  • Washable and reusable lifetime air filter
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Replaces entire factory air intake system
  • K&N Million Mile Limited Warranty

Application summary

Year Make / model
2003-2006 Nissan 350Z

Specifications

GTIN
00024844102201
Weight
12.3 lb
Height
14.5 in
Length
24.1 in
Width
15.5 in
EO
Legal US
Life cycle
Discontinued
Alt. part number
69-7070TP
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

AAM Standard Pack
1
Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
5.563 in. (141mm)
Air Filter Large End Diameter
6.000 in. (152mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
3.000 in. (76mm)
Air Filter Oulet Width
3.000 in. (76mm)
Air Filter Outlet Length
3.000 in. (76mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
3.000 in. (76mm)
Air Filter Washable
Yes
Alternate Part Number
69-7070TP
CARB EO Number
D-269-32
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
3
Clamp Style
Regular
Clamps Included
3
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
1
Estimated Horse Power Gain
7.67 HP @ 6208 RPM
Estimated Horsepower Gain
7.67 HP @ 6208 RPM
Estimated Torque Gain
7 lbft
Filter Color
Red
Filter Material
Cotton Gauze
Flange Angle
0 degrees
Flange Offset
0 in (0 mm)
Flange Type
Centered
Horse Power Increase
8 HP
Intake Pipe Color
Polished
Intake Pipe Color / Finish
Polished
Intake Pipe Inlet Length
19.000 in. (483mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
3.000 in. (76mm)
Intake Pipe Material
Aluminum
Intake Pipe Outlet Length
12.000 in. (305mm)
Intake Pipe Outlet Shape
Round
Intake Pipe Outlet Width
2.500 in. (64mm)
Intake Pipe Ports
All intake tube ports needed for the specified applications are included
Item Weight
12.300 lbs. (5.6 kg)
Mass Air Flow Sensor Adapter Included
Yes
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
14.5 in (368 mm)
Product Box Length
24.1 in (612 mm)
Product Box Width
15.5 in (394 mm)
Product Style
69 Series Typhoon Kits
RPM
6208
Replacement Filter
RU-4990
Street Legal
Yes
Street Legal In All US States
Legal for use in all 50 states.
System Type
Complete Cold-Air Intake System
TUV Approved (Europe)
No
Title
K&N 69-7070TP Performance Air Intake System
Warranty
No-Hassle Lifetime Limited
Weight
12.3 lb (5.6 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2003-2006 Nissan 350Z
