K&N · 69-7070TB
Part #: 69-7070TB
UPC: 024844102195
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Description: Performance Air Intake System; TYPHOON; NISSAN 350Z; V6-3.0L; 03-06
Description:
Description

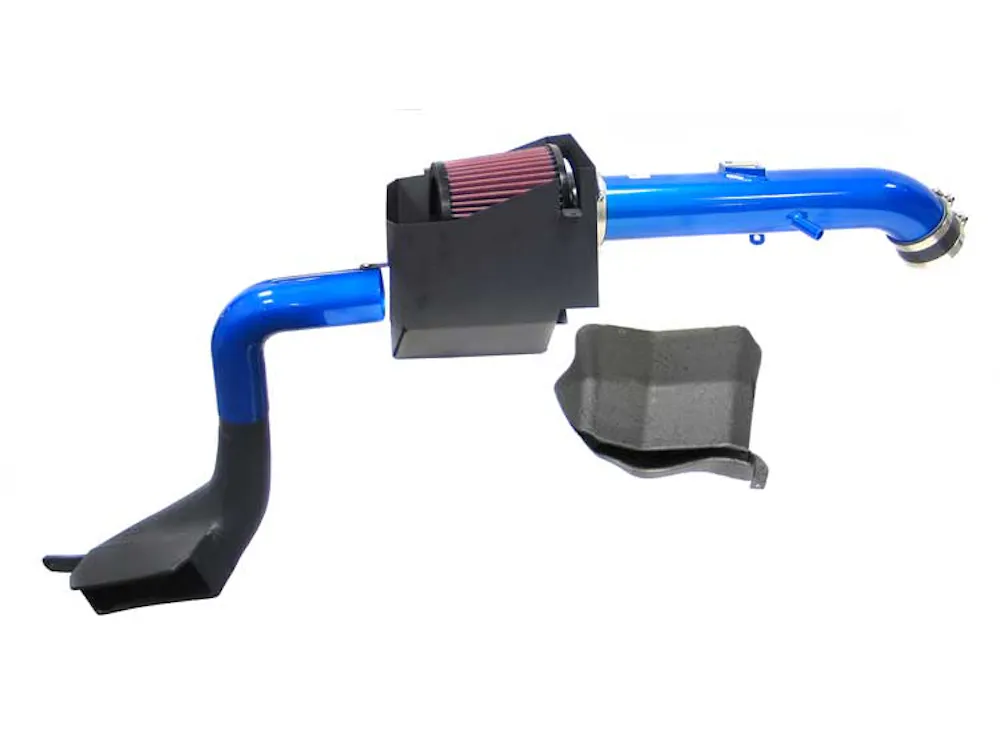

The K&N 69-7070TB Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Nissan 300Z 3.5 Liter V6 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-7070TB cold-air intake consists of a roto-molded plastic intake scoop that mounts behind the 350Z's front fascia directing cooler outside air through free-flowing aluminum tubing into the K&N carbon fiber topped air box. Inside the air box is a black rubber topped K&N high-flow air filter connecting to a mandrel-bent, 3 aluminum induction tube that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The intake tubes have an attractive black powder-coat finish that's made to last. The cold-air intake system accommodates the factory mass air sensor and crank case vent hose. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. The tools needed for installation are a screwdriver, pliers, ratchet set and several wrenches. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.
Features & benefits
- Guaranteed To Increase Horsepower
- Designed To Improve Throttle Response And Engine Sound
- Free Flowing Aluminum Tube
- Easy To Install Usually In 90 Minutes or Less
- Lasts Up To 100000 Miles Before Service Is Required
- Replaces Entire Factory Air Intake System
- Washable And Reusable Lifetime Air Filter
- K&N Million Mile Limited Warranty
Information
Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty
Application summary
| Year | Make / model |
|---|---|
| 2003-2006 | Nissan 350Z |
Specifications
- GTIN
- 00024844102195
- Weight
- 12.3 lb
- Height
- 14.5 in
- Length
- 24.1 in
- Width
- 15.5 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Height
- 5.563 in. (141mm)
- Air Filter Large End Diameter
- 6.000 in. (152mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Oulet Length
- 3.000 in. (76mm)
- Air Filter Oulet Width
- 3.000 in. (76mm)
- Air Filter Outlet Length
- 3.000 in. (76mm)
- Air Filter Outlet Shape
- Round
- Air Filter Outlet Width
- 3.000 in. (76mm)
- Air Filter Washable
- Yes
- CARB EO Number
- D-269-32
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 3
- Clamp Style
- Regular
- Clamps Included
- 3
- Coupler Color
- Black
- Coupler Color/Finish
- Black
- Couplers Included
- 1
- Estimated Horse Power Gain
- 7.67 HP @ 6208 RPM
- Estimated Horsepower Gain
- 7.67 HP @ 6208 RPM
- Filter Color
- Red
- Filter Material
- Cotton Gauze
- Flange Angle
- 0 degrees
- Flange Offset
- 0 in (0 mm)
- Flange Type
- Centered
- Horse Power Increase
- 8 HP
- Intake Pipe Color
- Blue
- Intake Pipe Color / Finish
- Polished
- Intake Pipe Inlet Length
- 19.000 in. (483mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 3.000 in. (76mm)
- Intake Pipe Material
- Aluminum
- Intake Pipe Outlet Length
- 12.000 in. (305mm)
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Outlet Width
- 2.500 in. (64mm)
- Item Weight
- 12.300 lbs. (5.6 kg)
- Mass Air Flow Sensor Adapter Included
- Mass Air Flow Sensor Adapter Included When Required
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 14.5 in (368 mm)
- Product Box Length
- 24.1 in (612 mm)
- Product Box Width
- 15.5 in (394 mm)
- Product Style
- 69 Series Typhoon Kits
- RPM
- 6208
- Replacement Filter
- RU-4990
- Street Legal
- Yes
- Street Legal In All US States
- Yes
- System Type
- Complete Cold Air
- TUV Approved (Europe)
- No
- Title
- K&N 69-7070TB Performance Air Intake System
- Warranty
- 1,000,000 Miles/10 Year
- Weight
- 12.3 lb (5.6 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2003-2006 Nissan 350Z
