K&N · 69-6506TS
Part #: 69-6506TS
UPC: 024844102430
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Description: Performance Air Intake System; K&N's easy-to-install Typhoon air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tube comes in a silver powder coat finish.
Description:
This part number superseded 69-6506TP.
Description

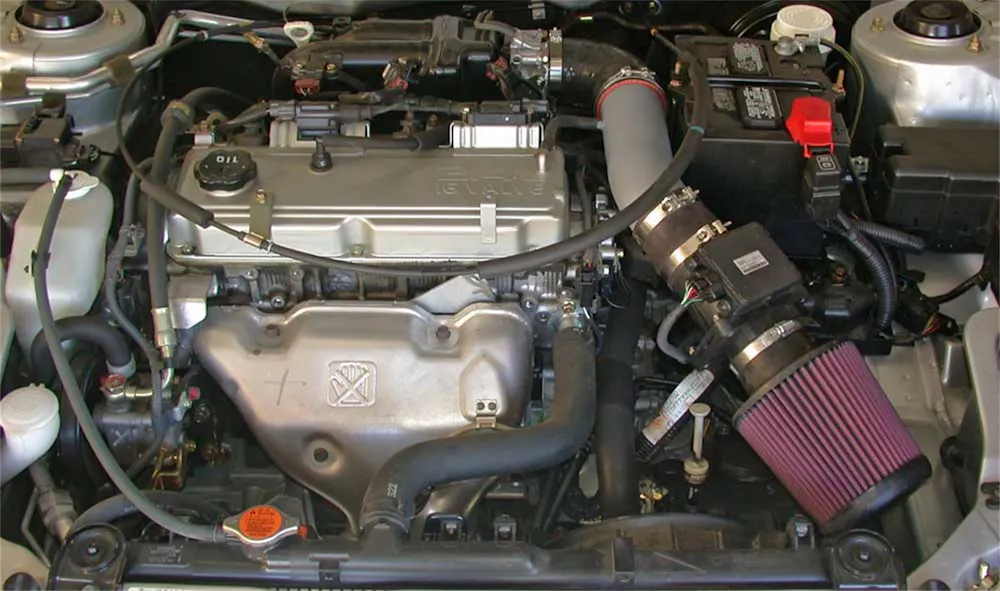

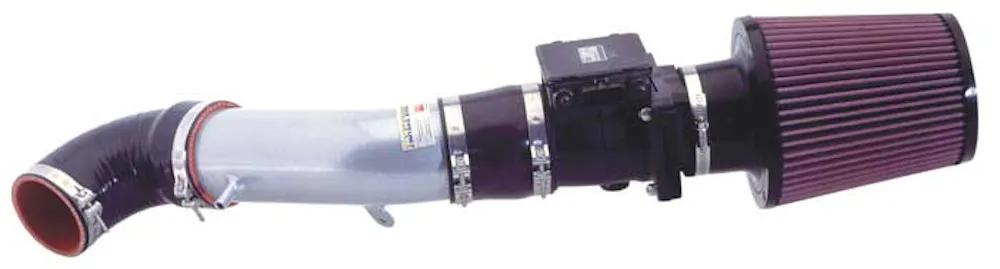

The K&N 69-6506TS Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mitsubishi Eclipse models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-6506TS air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive silver powder-coat finish that's made to last and it accommodates the factory mass air sensor and a replacement silicone crank case vent hose. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less.
Features & benefits
- Designed to improve throttle response and engine sound
- Easy to install, usually in 90 minutes or less
- Filter lasts up to 100,000 miles before service is required
- Replaces entire factory air intake system
- Washable and reusable lifetime air filter
- K&N Million Mile Limited Warranty
Application summary
| Year | Make / model |
|---|---|
| 2000-2005 | Mitsubishi Eclipse |
Specifications
- GTIN
- 00024844102430
- Weight
- 6.55 lb
- Height
- 8.5 in
- Length
- 18.25 in
- Width
- 14.5 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- 69-6506TS
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- AAM Standard Pack
- 1
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Height
- 6.500 in. (165mm)
- Air Filter Large End Diameter
- 6.000 in. (152mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Oulet Length
- 3.000 in. (76mm)
- Air Filter Oulet Width
- 3.000 in. (76mm)
- Air Filter Outlet Length
- 3.000 in. (76mm)
- Air Filter Outlet Shape
- Round
- Air Filter Outlet Width
- 3.000 in. (76mm)
- Air Filter Washable
- Yes
- Alternate Part Number
- 69-6506TS
- CARB EO Number
- D-269-30
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 5
- Clamp Style
- Regular
- Clamps Included
- 5
- Coupler Color
- Black
- Coupler Color/Finish
- Black
- Couplers Included
- 2
- Estimated Horse Power Gain
- 5.88 HP @ 4213 RPM
- Estimated Horsepower Gain
- 5.88 HP @ 4213 RPM
- Estimated Torque Gain
- 7 lbft
- Filter Color
- Red
- Filter Material
- Cotton Gauze
- Flange Angle
- 0 degrees
- Flange Offset
- 0 in (0 mm)
- Flange Type
- Centered
- Horse Power Increase
- 6 HP
- Intake Pipe Color
- Silver
- Intake Pipe Color / Finish
- Silver
- Intake Pipe Inlet Length
- 12.000 in. (305mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 3.000 in. (76mm)
- Intake Pipe Material
- Aluminum
- Intake Pipe Outlet Length
- 12.000 in. (305mm)
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Outlet Width
- 3.000 in. (76mm)
- Intake Pipe Ports
- All intake tube ports needed for the specified applications are included
- Item Weight
- 6.500 lbs. (3 kg)
- Mass Air Flow Sensor Adapter Included
- No
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 8.5 in (216 mm)
- Product Box Length
- 18.25 in (464 mm)
- Product Box Width
- 14.5 in (368 mm)
- Product Style
- 69 Series Typhoon Kits
- RPM
- 4213
- Replacement Filter
- RU-4730
- Street Legal In All US States
- Not legal for sale or use in California on any pollution controlled motor vehicle. NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com.
- System Type
- Short-Ram Intake System
- TUV Approved (Europe)
- No
- Title
- K&N 69-6506TS Performance Air Intake System
- Warranty
- No-Hassle Lifetime Limited
- Weight
- 6.5 lb (3 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2000-2005 Mitsubishi Eclipse
