K&N · 69-6501TB
Part #: 69-6501TB
UPC: 024844092885
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Description: Performance Air Intake System; TYPHOON; MITSU. ECLIPSE GT; V6-3.0L; 00-05; BLUE
Description:
This part number superseded 69-6501TR.
Description

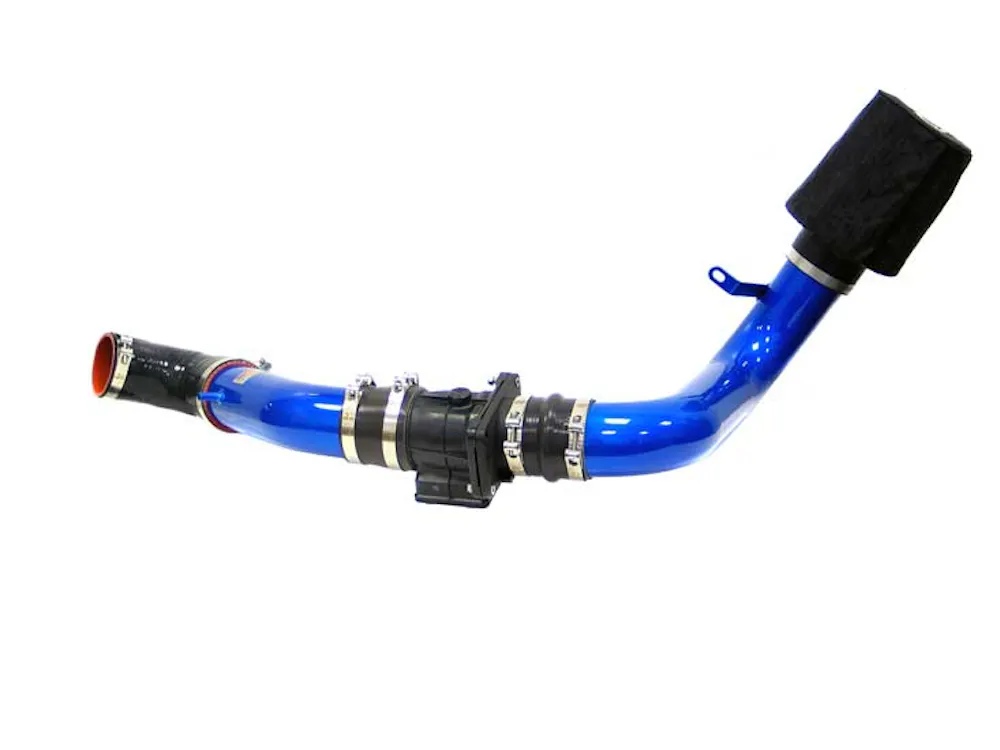

The K&N 69-6501TB Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mitsubishi Eclipse models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-6501TB cold-air intake consists of a K&N high-flow air filter that mounts between the driver side wheel well and from bumper. Cooler outside air is directed through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less. Some Typhoon air intakes are not legal for sale or use in California or other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the applications and specific CARB status for each vehicle and air intake.
Features & benefits
- Guaranteed To Increase Horsepower
- Designed To Improve Throttle Response And Engine Sound
- Free Flowing Aluminum Tube
- Easy To Install Usually In 90 Minutes or Less
- Lasts Up To 100000 Miles Before Service Is Required
- Replaces Entire Factory Air Intake System
- Washable And Reusable Lifetime Air Filter
- K&N Million Mile Limited Warranty
Information
Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty
Application summary
| Year | Make / model |
|---|---|
| 2000-2005 | Mitsubishi Eclipse |
Specifications
- GTIN
- 00024844092885
- Weight
- 8.2 lb
- Height
- 8.5 in
- Length
- 18.25 in
- Width
- 14.5 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Height
- 6.500 in. (165mm)
- Air Filter Large End Diameter
- 6.000 in. (152mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Oulet Length
- 3.000 in. (76mm)
- Air Filter Oulet Width
- 3.000 in. (76mm)
- Air Filter Outlet Length
- 3.000 in. (76mm)
- Air Filter Outlet Shape
- Round
- Air Filter Outlet Width
- 3.000 in. (76mm)
- Air Filter Washable
- Yes
- Base Outside Diameter
- 5.500 in. (140mm)
- CARB EO Number
- D-269-32
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 7
- Clamp Style
- Regular
- Clamps Included
- 7
- Coupler Color
- Black
- Coupler Color/Finish
- Black
- Couplers Included
- 3
- Estimated Horse Power Gain
- 6.9 HP @ 5800 RPM
- Estimated Horsepower Gain
- 6.9 HP @ 5800 RPM
- Filter Color
- Red
- Filter Material
- Cotton Gauze
- Flange Angle
- 0 Degree
- Flange Inside Diameter
- 3.000 in. (76mm)
- Flange Length
- 1.875 in. (48mm)
- Flange Offset
- 0.000 in. (0mm)
- Flange Type
- Centered
- Footnote 1
- 1/4-20 Jack Nut Into Top
- Height
- 6.5 in (165 mm)
- Horse Power Increase
- 7 HP
- Intake Pipe Color
- Blue
- Intake Pipe Color / Finish
- Polished
- Intake Pipe Inlet Length
- 10.000 in. (254mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 3.000 in. (76mm)
- Intake Pipe Material
- Aluminum
- Intake Pipe Outlet Length
- 26.000 in. (660mm)
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Outlet Width
- 3.000 in. (76mm)
- Item Height
- 6.500 in. (165mm)
- Item Weight
- 8.200 lbs. (3.7 kg)
- Mass Air Flow Sensor Adapter Included
- Mass Air Flow Sensor Adapter Included When Required
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 8.5 in (216 mm)
- Product Box Length
- 18.25 in (464 mm)
- Product Box Width
- 14.5 in (368 mm)
- Product Style
- 69 Series Typhoon Kits
- RPM
- 5800
- Replacement Filter
- RU-4730
- Street Legal
- Yes
- Street Legal In All US States
- Yes
- System Type
- Complete Cold Air
- TUV Approved (Europe)
- No
- Title
- K&N 69-6501TB Performance Air Intake System
- Top Material
- None
- Top Material/Finish
- None
- Top Outside Diameter
- 5.000 in. (127mm)
- Top Style
- X-Stream
- Warranty
- 1,000,000 Miles/10 Year
- Weight
- 8.2 lb (3.7 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2000-2005 Mitsubishi Eclipse
