K&N · 69-6030-1TFK

Part #: 69-6030-1TFK
UPC: 024844112583

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; K&N's easy-to-install Typhoon air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tube comes in a flat black powder coat finish.

Description:

This part number superseded 69-6030TB.

Description

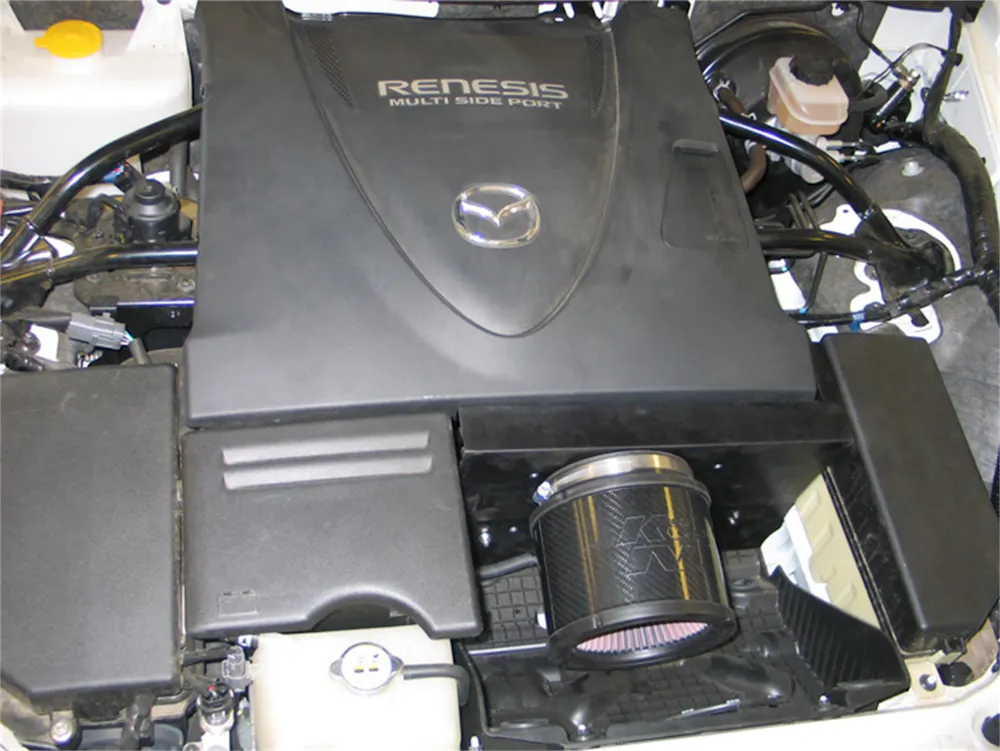

The K&N 69-6030-1TFK Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda RX-8 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-6030-1TFK air intake comes with a K&N high-flow air filter encased within an ultra-lightweight carbon fiber housing and a heat shield that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive flat black finish that's made to last and it accommodates the factory mass air sensor, air straightener and several vent lines. The oversized encased air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less. ach vehicle and air intake.

Features & benefits

  • Guaranteed to increase horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tube
  • Easy to install, usually in 90 minutes or less
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Replaces entire factory air intake system
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty

Information

Associated products: RU-5123 Universal Clamp-On Air Filter, 99-5000 Filter Care Service Kit Aerosol

Application summary

Year Make / model
2004-2011 Mazda RX-8

Specifications

GTIN
00024844112583
Weight
7.8 lb
Height
8.5 in
Length
18.25 in
Width
14.5 in
EO
Legal US
Life cycle
Available to Order
Alt. part number
69-6030-1TFK
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

AAM Standard Pack
1
Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
5.125 in. (130mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
5.375 in. (137mm)
Air Filter Oulet Width
5.375 in. (137mm)
Air Filter Outlet Length
5.375 in. (137mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
5.375 in. (137mm)
Air Filter Washable
Yes
Alternate Part Number
69-6030-1TFK
CARB EO Number
D-269-37
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
6
Clamp Style
Mini
Clamps Included
6
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
2
Estimated Horse Power Gain
11.15 HP @ 8660 RPM
Estimated Horsepower Gain
11.15 HP @ 8660 RPM
Estimated Torque Gain
7 lbft
Filter Color
Red
Filter Material
Cotton Gauze
Horse Power Increase
11 HP
Intake Pipe Color
Flat Black
Intake Pipe Color / Finish
Flat Black
Intake Pipe Inlet Length
13.000 in. (330mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
3.500 in. (89mm)
Intake Pipe Material
Aluminum
Intake Pipe Outlet Length
13.000 in. (330mm)
Intake Pipe Outlet Shape
Round
Intake Pipe Outlet Width
3.500 in. (89mm)
Intake Pipe Ports
All intake tube ports needed for the specified applications are included
Item Weight
7.800 lbs. (3.5 kg)
Mass Air Flow Sensor Adapter Included
Yes
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
8.5 in (216 mm)
Product Box Length
18.25 in (464 mm)
Product Box Width
14.5 in (368 mm)
Product Style
69 Series Typhoon Kits
RPM
8660
Replacement Filter
RU-5123
Retail Packaging
No
Street Legal In All US States
Not legal for sale or use in California on any pollution controlled motor vehicle. NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com.
System Type
Cold-Air Intake System
TUV Approved (Europe)
No
Title
K&N 69-6030-1TFK Performance Air Intake System
Warranty
No-Hassle Lifetime Limited
Weight
7.8 lb (3.5 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2004-2011 Mazda RX-8
