K&N · 69-5306TS

Part #: 69-5306TS
UPC: 024844266989

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; TYPHOON; KIA SOUL; L4-2.0L; 2010-2011

Description:

Description

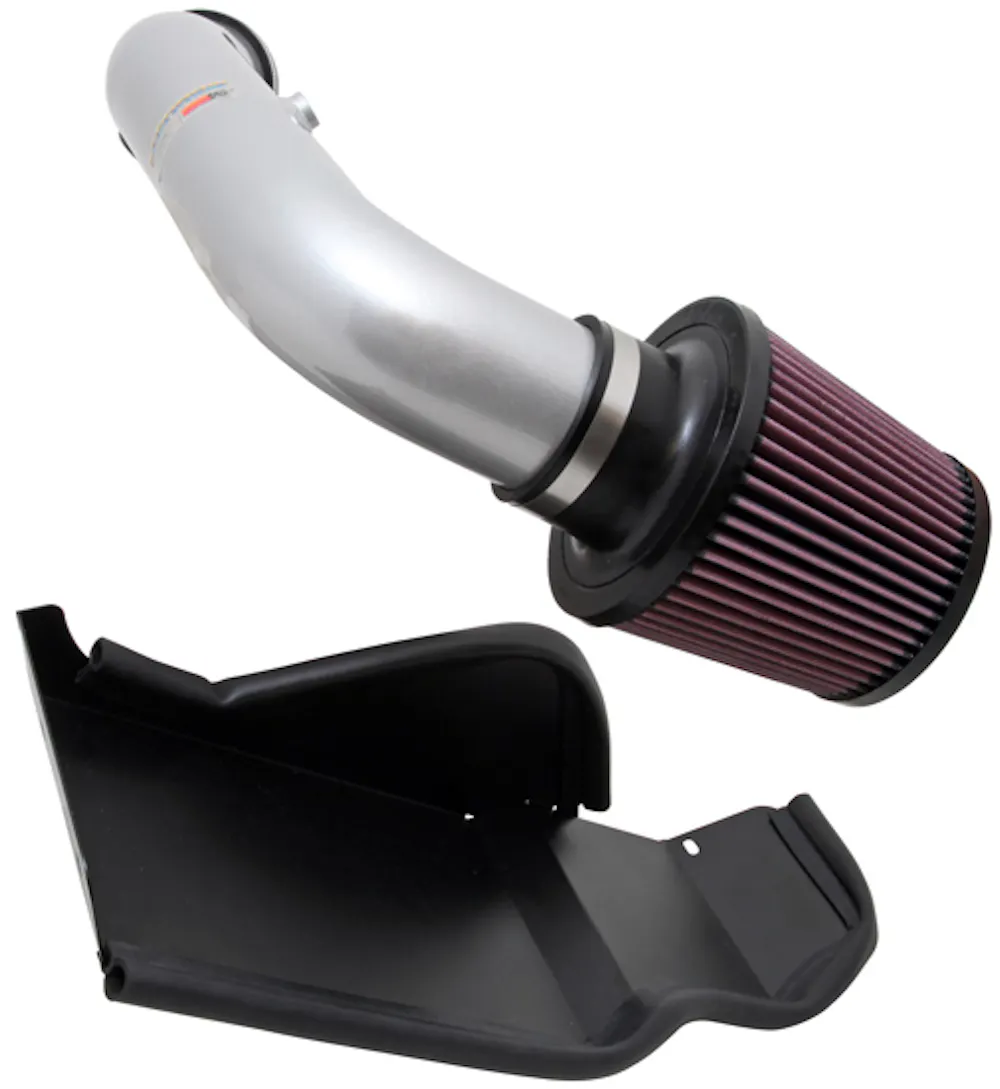

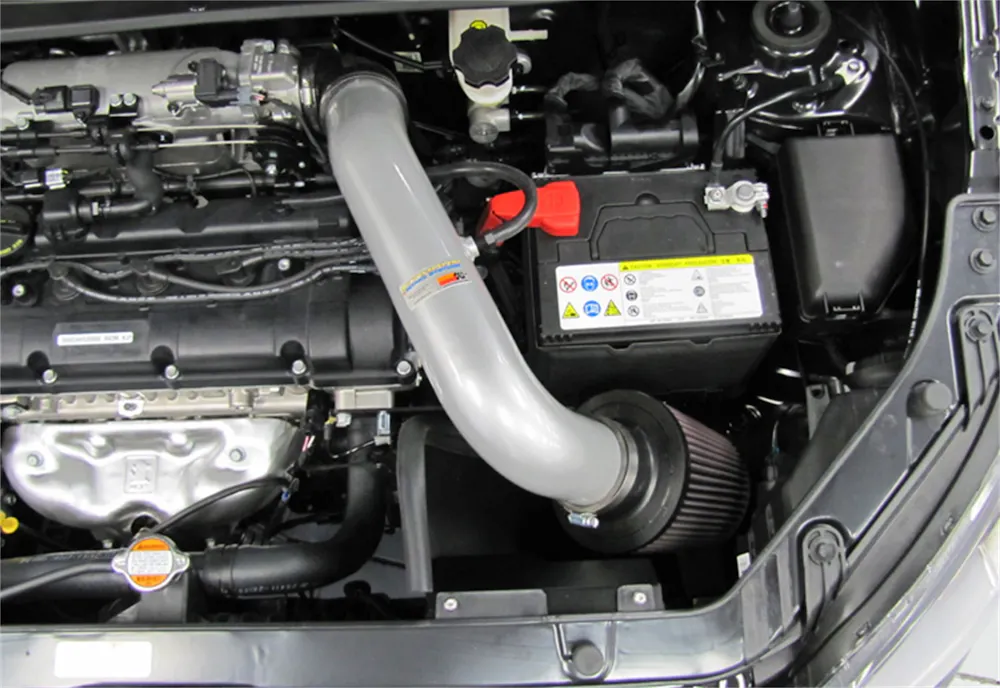

The K&N 69-5306TS Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some KIA Soul models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-5306TS air intake comes with a black rubber topped K&N high-flow air filter and a heat shield that installs into the previous air box space and connects to the fresh air scoop. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive silver powder-coat finish that's made to last and it accommodates a replacement silicone crank case vent hose. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a couple of screwdrivers, pliers, a ratchet set and an Allen wrench. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.

Features & benefits

  • Guaranteed To Increase Horsepower
  • Designed To Improve Throttle Response And Engine Sound
  • Free Flowing Aluminum Tube
  • Easy To Install Usually In 90 Minutes or Less
  • Lasts Up To 100000 Miles Before Service Is Required
  • Replaces Entire Factory Air Intake System
  • Washable And Reusable Lifetime Air Filter
  • K&N Million Mile Limited Warranty

Information

Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty

Application summary

Year Make / model
2010-2011 Kia Soul

Specifications

GTIN
00024844266989
Weight
9.82 lb
Height
12.5 in
Length
20.25 in
Width
12.25 in
EO
Legal US
Life cycle
Discontinued
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
5.563 in. (141mm)
Air Filter Large End Diameter
6.000 in. (152mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
3.000 in. (76mm)
Air Filter Oulet Width
3.000 in. (76mm)
Air Filter Outlet Length
3.000 in. (76mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
3.000 in. (76mm)
Air Filter Washable
Yes
CARB EO Number
D-269-56
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
3
Clamp Style
Regular
Clamps Included
3
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
1
Estimated Horse Power Gain
5.13 HP @ 5300 RPM
Estimated Horsepower Gain
5.13 HP @ 5300 RPM
Filter Color
Red
Filter Material
Cotton Gauze
Flange Angle
0 degrees
Flange Offset
0 in (0 mm)
Flange Type
Centered
Horse Power Increase
5 HP
Intake Pipe Color
Silver
Intake Pipe Color / Finish
Silver
Intake Pipe Inlet Length
20.500 in. (521mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
3.000 in. (76mm)
Intake Pipe Material
Aluminum
Intake Pipe Outlet Length
20.500 in. (521mm)
Intake Pipe Outlet Shape
Round
Intake Pipe Outlet Width
3.000 in. (76mm)
Item Weight
9.800 lbs. (4.5 kg)
Mass Air Flow Sensor Adapter Included
Mass Air Flow Sensor Adapter Included When Required
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
12.5 in (318 mm)
Product Box Length
20.25 in (514 mm)
Product Box Width
12.25 in (311 mm)
Product Style
69 Series Typhoon Kits
RPM
5300
Replacement Filter
RU-4990
Street Legal
Yes
Street Legal In All US States
Yes
System Type
Cold Air
TUV Approved (Europe)
No
Title
K&N 69-5306TS Performance Air Intake System
Warranty
1,000,000 Miles/10 Year
Weight
9.8 lb (4.5 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2010-2011 Kia Soul
