K&N · 69-4516TS

Part #: 69-4516TS
UPC: 024844113078

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; K&N's easy-to-install Typhoon air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tube comes in a silver powder coat finish.

Description:

Description

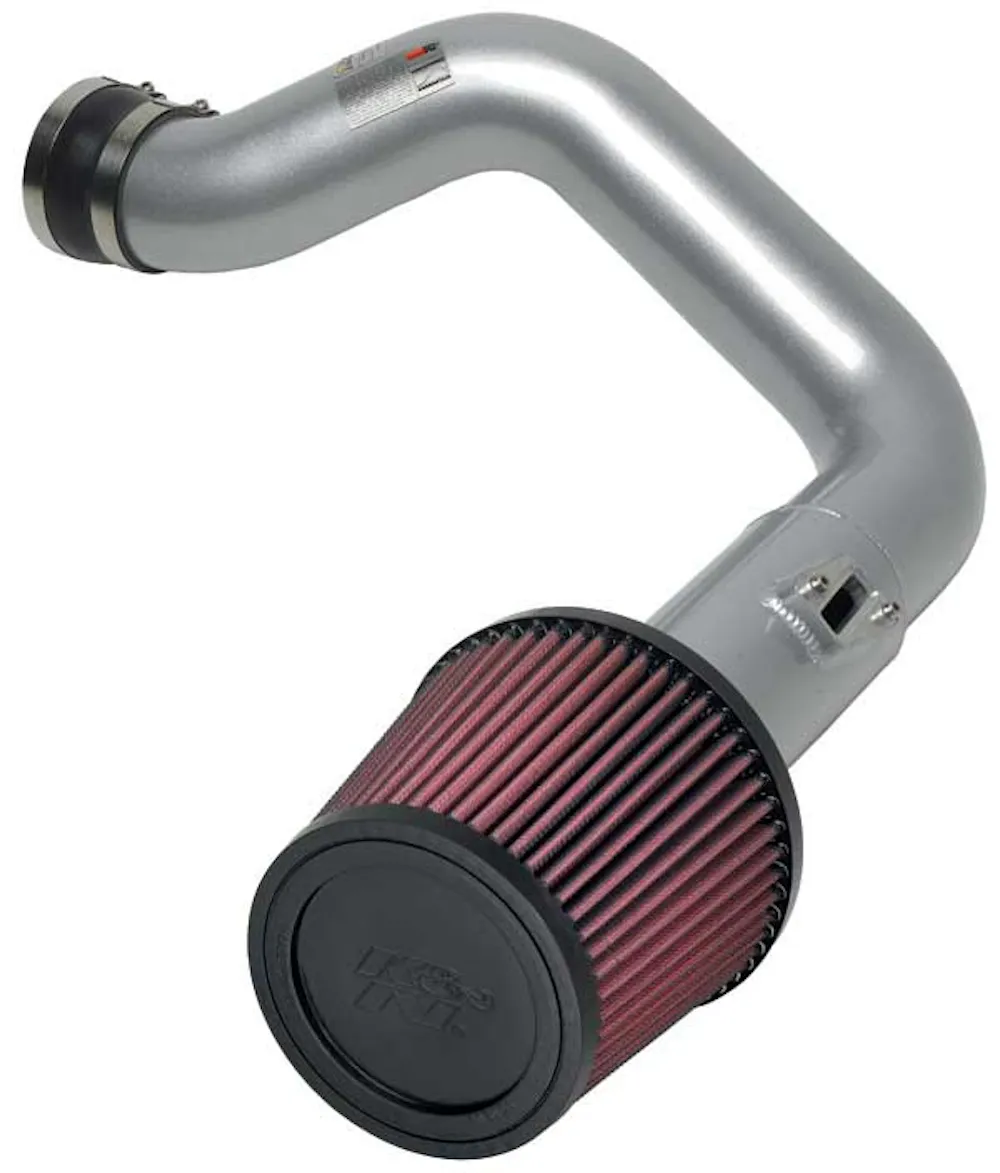

The K&N 69-4516TS Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Chevrolet Cobalt models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-4516TS air intake comes with a black rubber topped K&N high-flow air filter that installs near the driver side wheel well to access cooler, denser air. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive silver powder-coat finish that's made to last and it accommodates the factory mass air sensor and crank case vent hose. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a couple of screwdrivers, pliers, a ratchet set and an Allen wrench. ach vehicle and air intake.

Features & benefits

  • Guaranteed To Increase Horsepower
  • Designed To Improve Throttle Response And Engine Sound
  • Free Flowing Aluminum Tube
  • Easy To Install Usually In 90 Minutes or Less
  • Lasts Up To 100000 Miles Before Service Is Required
  • Replaces Entire Factory Air Intake System
  • Washable And Reusable Lifetime Air Filter
  • K&N Million Mile Limited Warranty

Information

Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty

Application summary

Year Make / model
2005-2006 Chevrolet Cobalt

Specifications

GTIN
00024844113078
Weight
5.75 lb
Height
14.5 in
Length
24.1 in
Width
15.5 in
EO
Legal US
Life cycle
Discontinued
Alt. part number
69-4516TS
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
5.563 in. (141mm)
Air Filter Large End Diameter
6.000 in. (152mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
3.000 in. (76mm)
Air Filter Oulet Width
3.000 in. (76mm)
Air Filter Outlet Length
3.000 in. (76mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
3.000 in. (76mm)
Air Filter Washable
Yes
Alternate Part Number
69-4516TS
CARB EO Number
D-269-32
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
3
Clamp Style
Regular
Clamps Included
3
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
1
Estimated Horse Power Gain
8.12 HP @ 5829 RPM
Estimated Horsepower Gain
8.12 HP @ 5829 RPM
Estimated Torque Gain
7 lbft
Filter Color
Red
Filter Material
Cotton Gauze
Flange Angle
0 degrees
Flange Offset
0 in (0 mm)
Flange Type
Centered
Horse Power Increase
8 HP
Intake Pipe Color
Silver
Intake Pipe Color / Finish
Silver
Intake Pipe Inlet Length
20.000 in. (508mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
2.750 in. (70mm)
Intake Pipe Material
Aluminum
Intake Pipe Outlet Length
20.000 in. (508mm)
Intake Pipe Outlet Shape
Round
Intake Pipe Outlet Width
2.750 in. (70mm)
Intake Pipe Ports
All intake tube ports needed for the specified applications are included
Item Weight
5.800 lbs. (2.6 kg)
Mass Air Flow Sensor Adapter Included
Yes
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
14.5 in (368 mm)
Product Box Length
24.1 in (612 mm)
Product Box Width
15.5 in (394 mm)
Product Style
69 Series Typhoon Kits
RPM
5829
Replacement Filter
RU-4990
Street Legal
Yes
Street Legal In All US States
Legal for use in all 50 states.
System Type
Cold-Air Intake System
TUV Approved (Europe)
No
Title
K&N 69-4516TS Performance Air Intake System
Warranty
No-Hassle Lifetime Limited
Weight
5.8 lb (2.6 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2005-2006 Chevrolet Cobalt
