K&N · 69-3512TP

Part #: 69-3512TP
UPC: 024844106186

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; TYPHOON; FORD FOCUS; L4-2.3L; 03-07 (POLISHED)

Description:

This part number superseded 69-3512TB.

Description

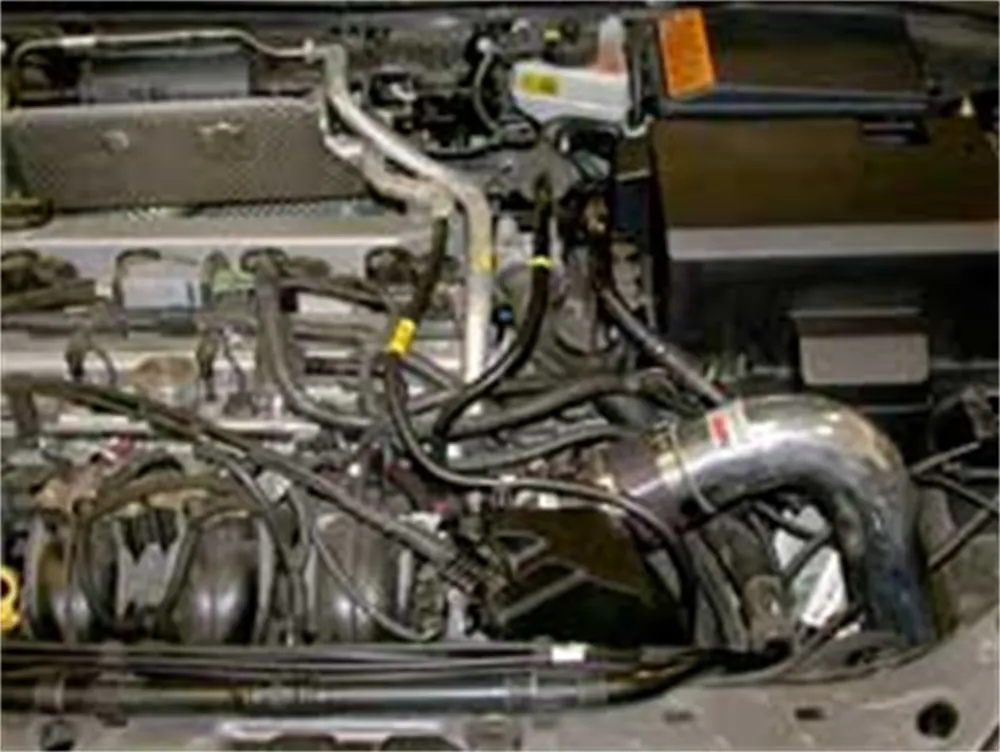

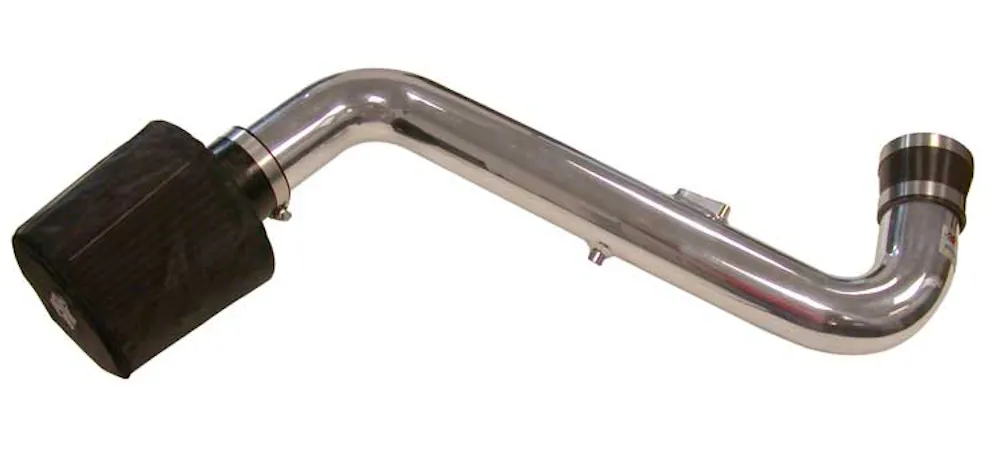

The K&N 69-3512TP Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Ford Focus models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in outside air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-3512TP cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing outside air through free-flowing aluminum tubing that delivers high volumes of clean air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.

Features & benefits

  • Guaranteed To Increase Horsepower
  • Designed To Improve Throttle Response And Engine Sound
  • Free Flowing Aluminum Tube
  • Easy To Install Usually In 90 Minutes or Less
  • Lasts Up To 100000 Miles Before Service Is Required
  • Replaces Entire Factory Air Intake System
  • Washable And Reusable Lifetime Air Filter
  • K&N Million Mile Limited Warranty

Information

Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty

Application summary

Year Make / model
2003-2007 Ford Focus

Specifications

GTIN
00024844106186
Weight
5.95 lb
Height
14.5 in
Length
24.1 in
Width
15.5 in
EO
Legal US
Life cycle
Discontinued
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
5.500 in. (140mm)
Air Filter Large End Diameter
6.000 in. (152mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
2.500 in. (64mm)
Air Filter Oulet Width
2.500 in. (64mm)
Air Filter Outlet Length
2.500 in. (64mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
2.500 in. (64mm)
Air Filter Washable
Yes
CARB EO Number
D-269-38
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
3
Clamp Style
Regular
Clamps Included
3
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
1
Estimated Horse Power Gain
8.46 HP @ 5800 RPM
Estimated Horsepower Gain
8.46 HP @ 5800 RPM
Filter Color
Red
Filter Material
Cotton Gauze
Flange Angle
0 degrees
Flange Offset
0 in (0 mm)
Flange Type
Centered
Horse Power Increase
8 HP
Intake Pipe Color
Polished
Intake Pipe Color / Finish
Red
Intake Pipe Inlet Length
28.500 in. (724mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
2.500 in. (64mm)
Intake Pipe Material
Aluminum
Intake Pipe Outlet Length
28.500 in. (724mm)
Intake Pipe Outlet Shape
Round
Intake Pipe Outlet Width
2.500 in. (64mm)
Item Weight
6.000 lbs. (2.7 kg)
Mass Air Flow Sensor Adapter Included
Mass Air Flow Sensor Adapter Included When Required
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
14.5 in (368 mm)
Product Box Length
24.1 in (612 mm)
Product Box Width
15.5 in (394 mm)
Product Style
69 Series Typhoon Kits
RPM
5800
Replacement Filter
RU-4950
Street Legal In All US States
See Vehicle Applications
System Type
Cold Air
TUV Approved (Europe)
No
Title
K&N 69-3512TP Performance Air Intake System
Warranty
1,000,000 Miles/10 Year
Weight
6 lb (2.7 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2003-2007 Ford Focus
