K&N · 69-3510TB
Part #: 69-3510TB
UPC: 024844101778
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Description: Performance Air Intake System; TYPHOON; FORD FOCUS (SR); 00-03; BLUE
Description:
Description

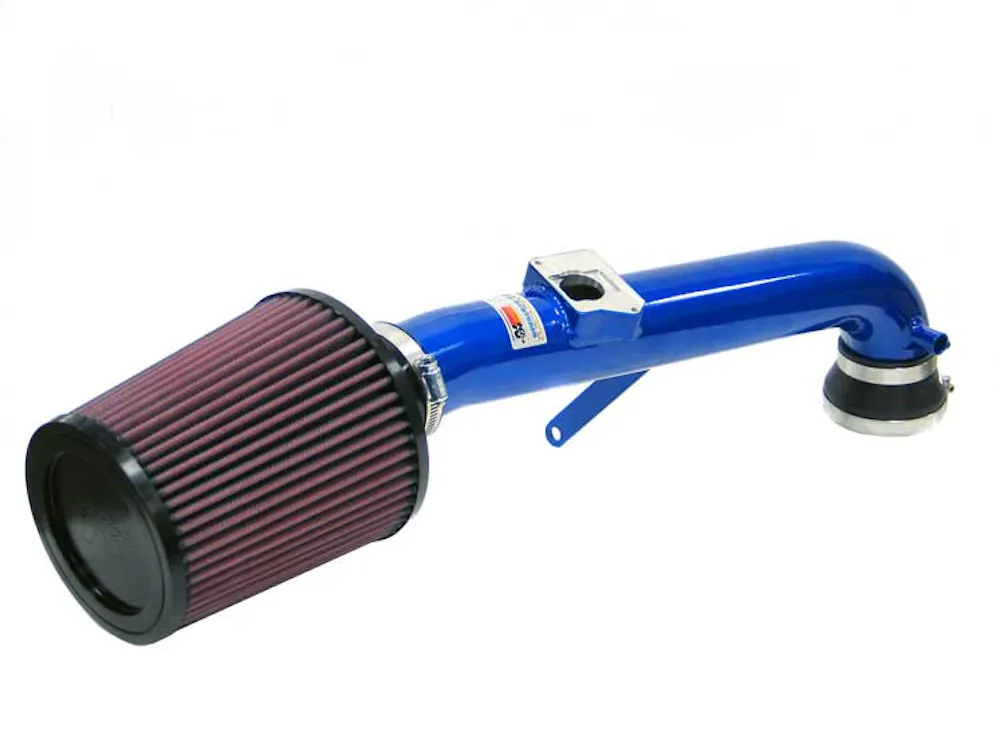

The K&N 69-3510TB Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Ford Focus models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive blue powder-coat finish that's made to last and it accommodates the factory mass air sensor and a couple of replacement silicone vent hoses. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a screwdriver, ratchet set and a Torx T20 wrench. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.
Features & benefits
- Guaranteed To Increase Horsepower
- Designed To Improve Throttle Response And Engine Sound
- Free Flowing Aluminum Tube
- Easy To Install Usually In 90 Minutes or Less
- Lasts Up To 100000 Miles Before Service Is Required
- Replaces Entire Factory Air Intake System
- Washable And Reusable Lifetime Air Filter
- K&N Million Mile Limited Warranty
Information
Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty
Application summary
| Year | Make / model |
|---|---|
| 2000-2003 | Ford Focus |
Specifications
- GTIN
- 00024844101778
- Weight
- 5.75 lb
- Height
- 8.5 in
- Length
- 18.25 in
- Width
- 14.5 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Height
- 6.500 in. (165mm)
- Air Filter Large End Diameter
- 6.000 in. (152mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Oulet Length
- 2.500 in. (64mm)
- Air Filter Oulet Width
- 2.500 in. (64mm)
- Air Filter Outlet Length
- 2.500 in. (64mm)
- Air Filter Outlet Shape
- Round
- Air Filter Outlet Width
- 2.500 in. (64mm)
- Air Filter Washable
- Yes
- CARB EO Number
- D-269-27
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 3
- Clamp Style
- Regular
- Clamps Included
- 3
- Coupler Color
- Black
- Coupler Color/Finish
- Black
- Couplers Included
- 1
- Estimated Horse Power Gain
- 3.88 HP @ 2931 RPM
- Estimated Horsepower Gain
- 3.88 HP @ 2931 RPM
- Filter Color
- Red
- Filter Material
- Cotton Gauze
- Flange Angle
- 0 degrees
- Flange Offset
- 0 in (0 mm)
- Flange Type
- Centered
- Horse Power Increase
- 4 HP
- Intake Pipe Color
- Blue
- Intake Pipe Color / Finish
- Polished
- Intake Pipe Inlet Length
- 22.000 in. (559mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 2.500 in. (64mm)
- Intake Pipe Material
- Aluminum
- Intake Pipe Outlet Length
- 22.000 in. (559mm)
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Outlet Width
- 2.500 in. (64mm)
- Item Weight
- 5.800 lbs. (2.6 kg)
- Mass Air Flow Sensor Adapter Included
- Mass Air Flow Sensor Adapter Included When Required
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 8.5 in (216 mm)
- Product Box Length
- 18.25 in (464 mm)
- Product Box Width
- 14.5 in (368 mm)
- Product Style
- 69 Series Typhoon Kits
- RPM
- 2931
- Replacement Filter
- RU-4860
- Street Legal
- Yes
- Street Legal In All US States
- Yes
- System Type
- Short Ram
- TUV Approved (Europe)
- No
- Title
- K&N 69-3510TB Performance Air Intake System
- Warranty
- 1,000,000 Miles/10 Year
- Weight
- 5.8 lb (2.6 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2000-2003 Ford Focus
