K&N · 63-9041
Part #: 63-9041
UPC: 024844367143
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Description: Performance Air Intake System; AIRCHARGER; TOYOTA COROLLA L4-1.8L F/I; 2017-2019
Description:
Description

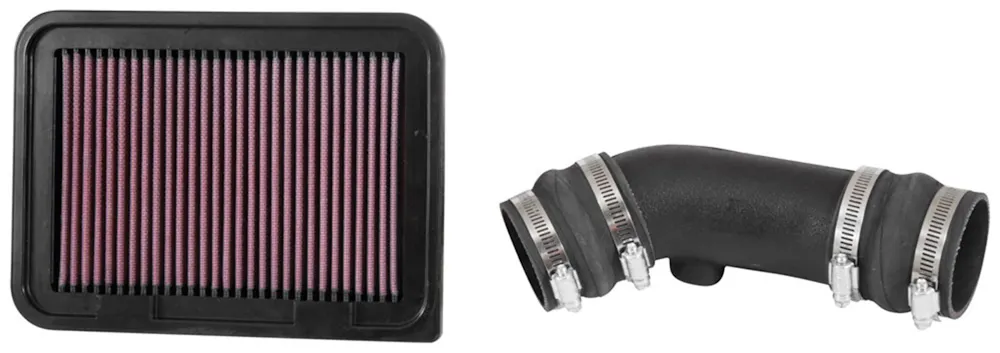

This K&N AirCharger air intake system replaces the restrictive factory air filter and air intake tubing while retaining the factory air box. K&N air intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow for a guaranteed horsepower gain. This allows your engine to inhale a larger amount of air than the factory air filter and air intake assembly. More air means more usable power and acceleration throughout the engine's RPM range. This air intake comes with a replacement K&N high-flow air filter and an aerodynamically engineered intake tube that easily connects to your vehicle's factory air box and throttle body. The air filter can be used for up to 50,000 miles before servicing is needed depending on driving conditions. This air intake system is designed for quick and easy installation with commonly available tools.
Features & benefits
- Guaranteed Horsepower Gain
- Designed To Improve Throttle Response And Engine Sound
- Easy To Install
- Replaces Entire Factory Air Intake System
- Lasts Up To 100 000 Miles Before Service Required
Application summary
| Year | Make / model |
|---|---|
| 2016 | Scion iM |
| 2017-2019 | Toyota Corolla |
| 2017 | Toyota Corolla iM |
Specifications
- GTIN
- 00024844367143
- Weight
- 3.8 lb
- Height
- 8.5 in
- Length
- 18.25 in
- Width
- 14.5 in
- EO
- Not in CA
- Life cycle
- Discontinued
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Material
- Cotton Gauze
- Air Filter Outlet Shape
- Rectangular
- Air Filter Washable
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- California Restricted
- Not legal for sale or use in California
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 4
- Clamp Style
- Worm Gear
- Clamps Included
- 4
- Coupler Color
- Black
- Coupler Color/Finish
- Black
- Couplers Included
- 2
- Estimated Horse Power Gain
- 2.47 HP @ 5536 RPM
- Estimated Horsepower Gain
- 2.47 HP @ 5536 RPM
- Filter Color
- Red
- Filter Material
- Cotton Gauze
- Horse Power Increase
- 2 HP
- Intake Pipe Color
- Black
- Intake Pipe Color / Finish
- Black
- Intake Pipe Material
- High-Density Cross-Linked Polyethylene
- Item Weight
- 3.800 lbs. (1.7 kg)
- Mass Air Flow Sensor Adapter Included
- Mass Air Flow Sensor Adapter Included When Required
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Corrugated
- Package Type
- Box
- Product Box Height
- 8.500 in. (216mm)
- Product Box Length
- 18.250 in. (464mm)
- Product Box Width
- 14.500 in. (368mm)
- Product Style
- 63 Series Aircharger Kits
- RPM
- 5536
- Replacement Filter
- 33-2360
- Street Legal
- No
- Street Legal In All US States
- No
- TUV Approved (Europe)
- No
- Title
- K&N 63-9041 Performance Air Intake System
- Warranty
- 1,000,000 Miles/10 Year
- Weight
- 3.8 lb (1.7 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2016 Scion iM; 2017-2019 Toyota Corolla; 2017 Toyota Corolla iM
Resources
- Brand logo
- Technical Drawing
- Installation Instructions
- Logo Image
- Photo - Out of Package

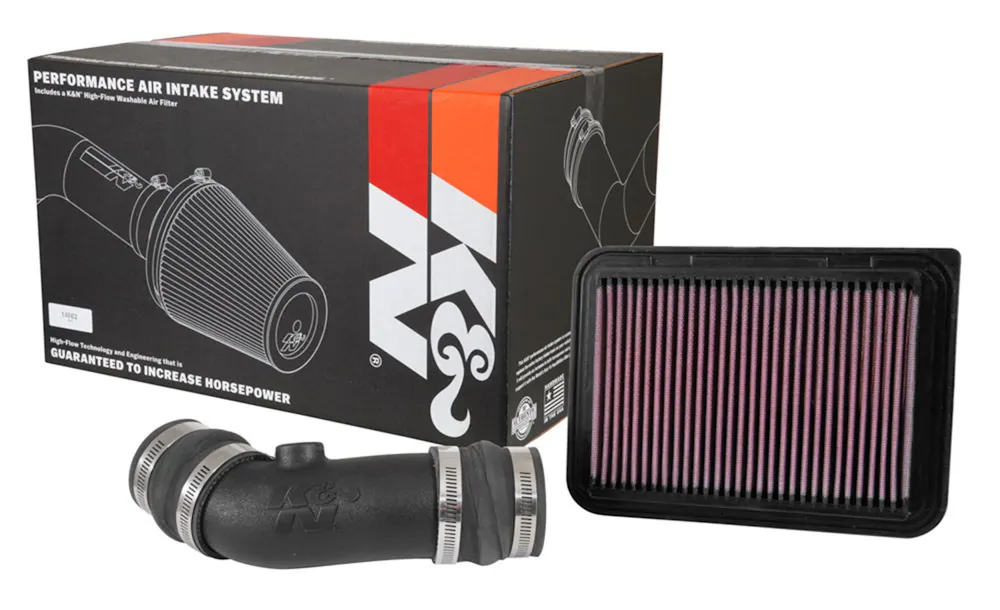

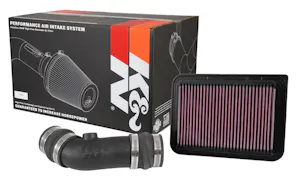

- Photo - In Package
- Photo - In Package
- Photo - In Package
- Photo - In Package
- Photo - In Package
- Photo - Lifestyle View

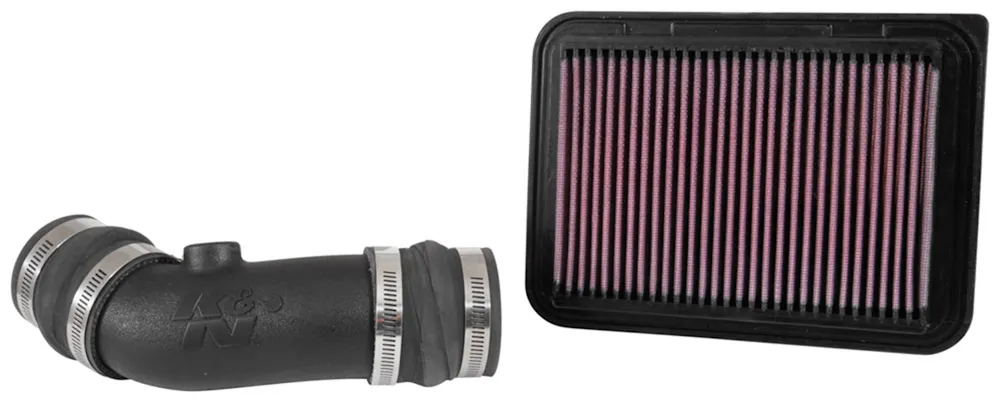

- Photo - Primary

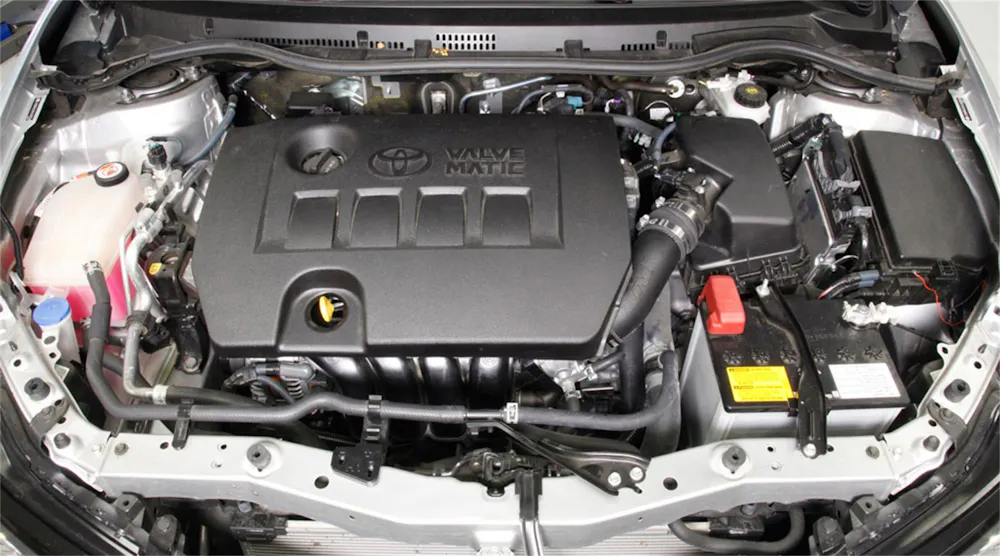

- Photo - Mounted
