K&N · 63-9034

K&N 63-9034

Part #: 63-9034
UPC: 024844277053

Log in for inventory
Notify me when this item is in stock.

Brand: K&N Series: 63 Series Air Induction Systems
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Log in to order

Description: Performance Air Intake System; K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow. K&N air intakes come with K&N's famous No-Hassle Lifetime Limited warranty.

Description:

Proposition 65 WarningCancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

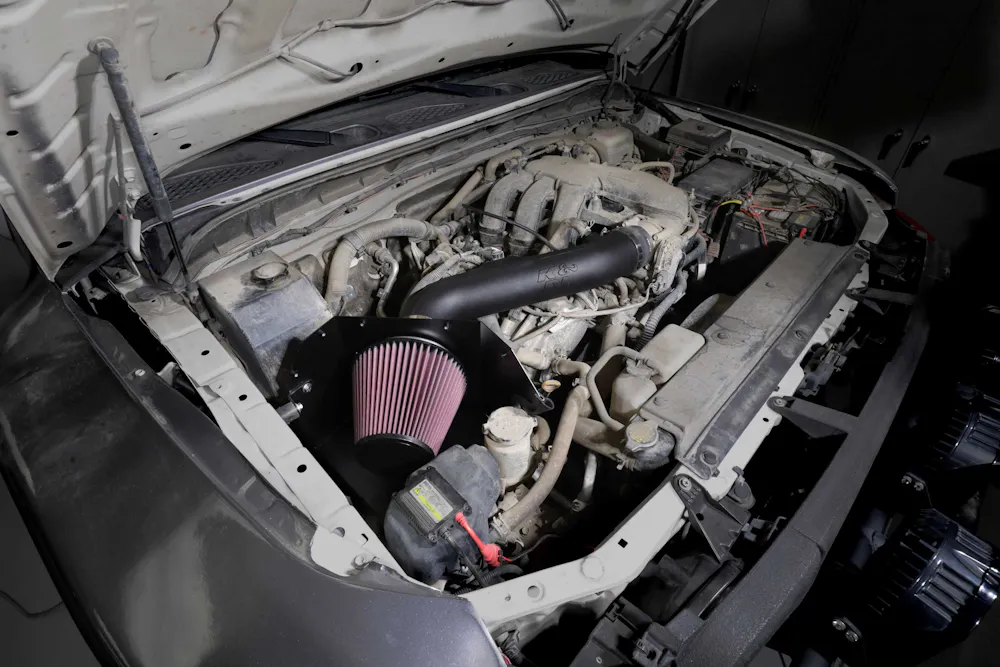

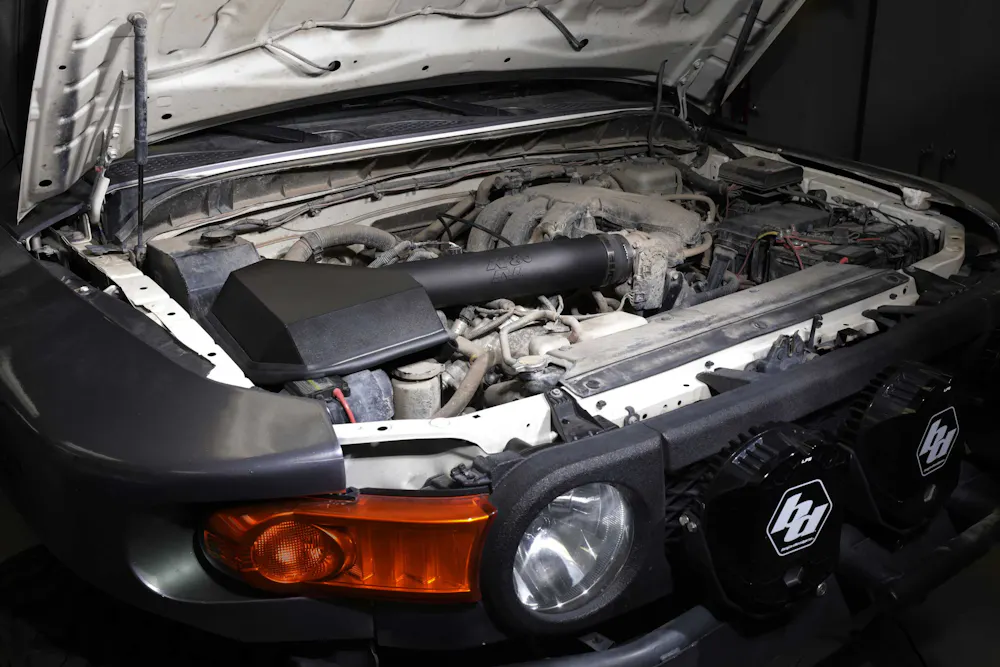

The K&N AirCharger 63-9034 air intake system replaces your vehicle's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your vehicle's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-9034 air intake comes with a chrome topped K&N high-flow air filter and a heat shield that installs into the previous air box space. This allows cooler, denser air to be directed through a custom molded intake tube into the engine's throttle body for a guaranteed power gain. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only a screwdriver, pliers, socket set and several wrenches.

Features & benefits

  • Guaranteed horsepower gain
  • Designed to improve throttle response and engine sound
  • Free-flowing high density polyethylene tube
  • Replaces entire factory air intake system
  • K&N No-Hassle Lifetime Limited Warranty
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Easy to install, usually in 90 minutes or less

Information

Associated products: RF-1048DK Air Filter Wrap, RF-1048DR Air Filter Wrap, RU-1048 Universal Clamp-On Air Filter, 99-5000 Filter Care Service Kit Aerosol

Application summary

Year Make / model
2010-2024 Toyota 4Runner
2010-2014 Toyota FJ Cruiser

Specifications

GTIN
00024844277053
Weight
14.12 lb
Height
12.5 in
Length
22.25 in
Width
14.25 in
EO
Not in CA
Life cycle
Available to Order
Alt. part number
63-9034
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

AAM Standard Pack
1
Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
8.000 in. (203mm)
Air Filter Large End Diameter
7.500 in. (191mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
6.000 in. (152mm)
Air Filter Oulet Width
6.000 in. (152mm)
Air Filter Outlet Length
6.000 in. (152mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
6.000 in. (152mm)
Air Filter Washable
Yes
Alternate Part Number
63-9034
Alternate Replacement Filter
RF-1048/RU-1048XD
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
5
Clamp Style
Regular
Clamps Included
5
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
2
Estimated Horse Power Gain
12.18 HP @ 4600 RPM
Estimated Horsepower Gain
12.18 HP @ 4600 RPM
Estimated Torque Gain
14 lbft
Filter Color
Red
Filter Material
Cotton Gauze
Horse Power Increase
12 HP
Intake Pipe Color
Black
Intake Pipe Color / Finish
Black
Intake Pipe Material
High-Density Cross-Linked Polyethylene
Intake Pipe Ports
All intake tube ports needed for the specified applications are included
Item Weight
14.100 lbs. (6.4 kg)
Mass Air Flow Sensor Adapter Included
Yes
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
12.500 in. (318mm)
Product Box Length
22.250 in. (565mm)
Product Box Width
14.250 in. (362 mm)
Product Style
63 Series Aircharger Kits
RPM
4600
Replacement Filter
RF-1048
Retail Packaging
No
Street Legal
No
Street Legal In All US States
Not legal for sale or use in California on any pollution controlled motor vehicle.
TUV Approved (Europe)
No
Title
K&N 63-9034 Performance Air Intake System
Warranty
No-Hassle Lifetime Limited
Weight
14.1 lb (6.4 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2010-2024 Toyota 4Runner; 2010-2014 Toyota FJ Cruiser
